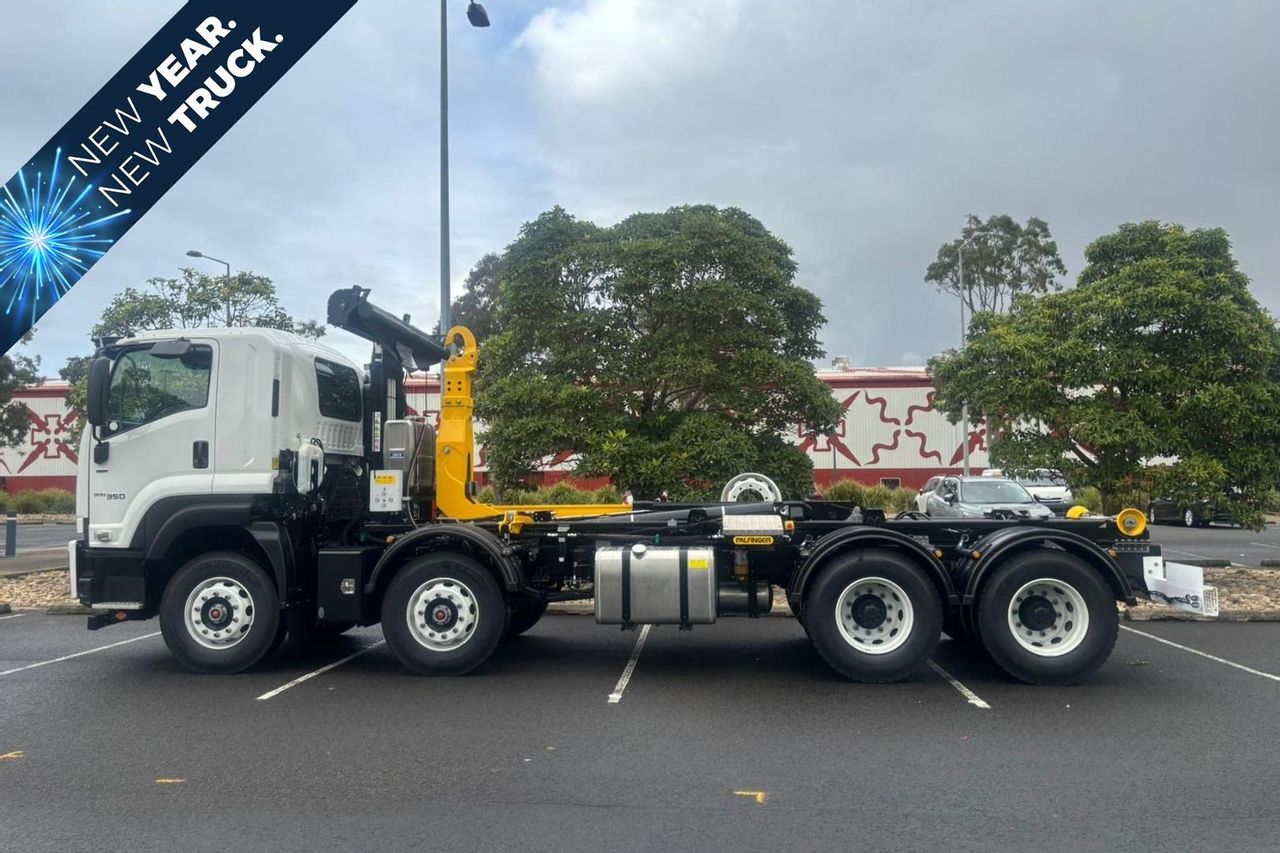

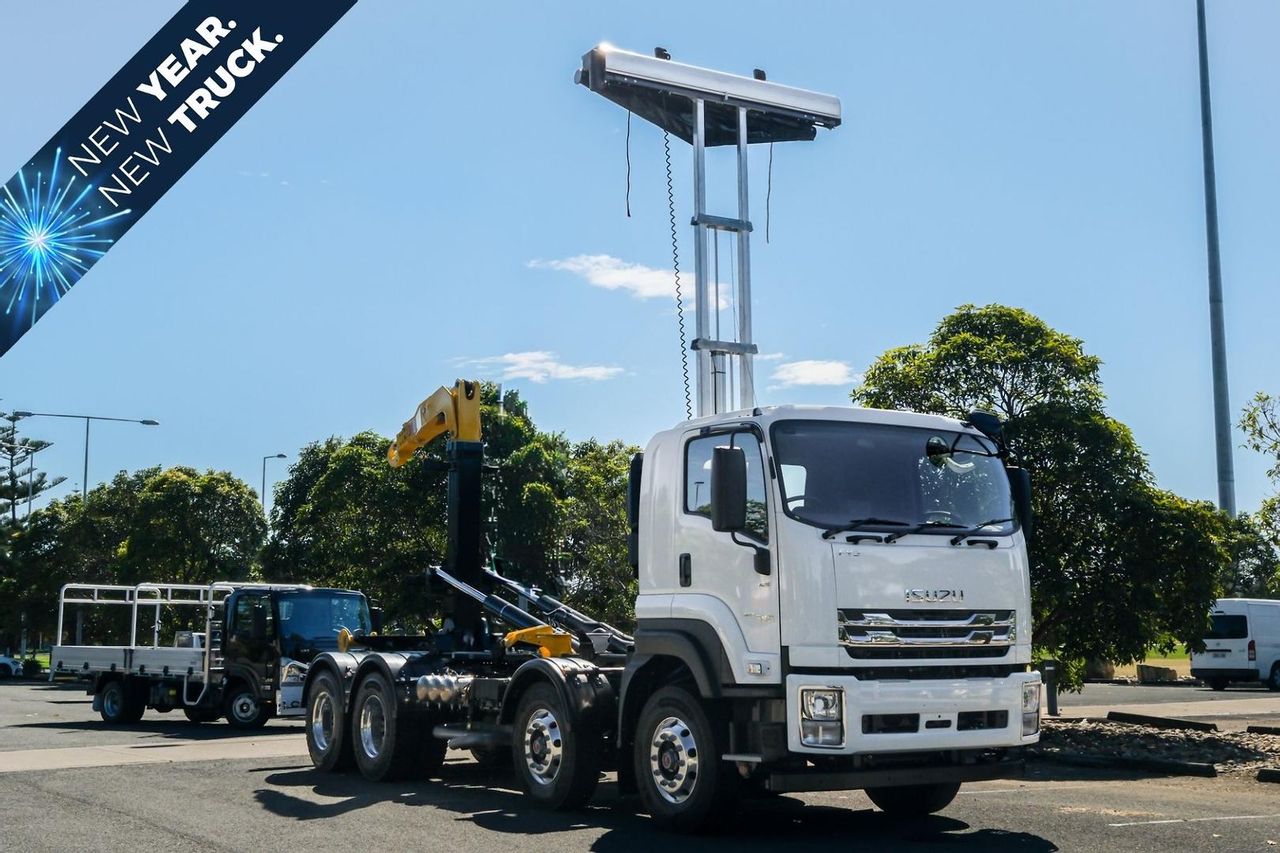

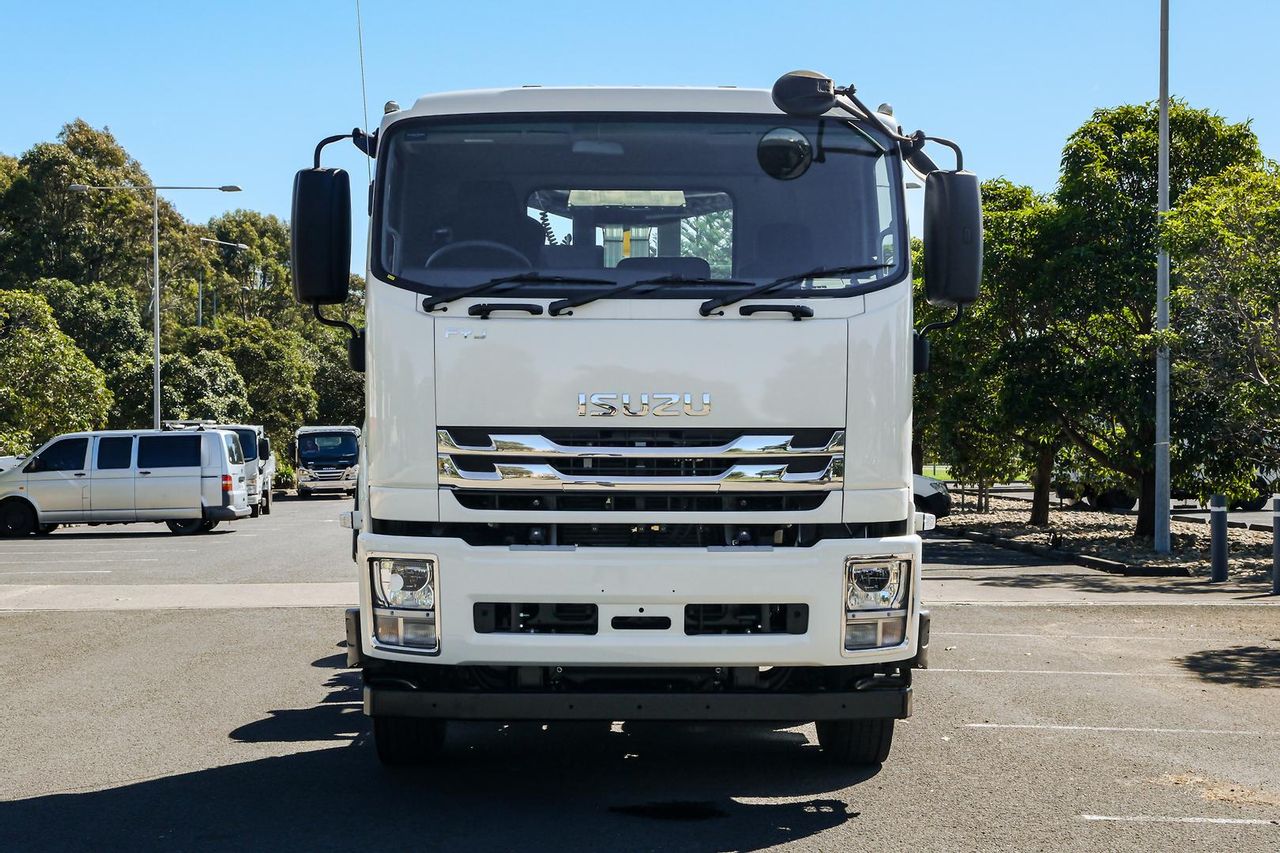

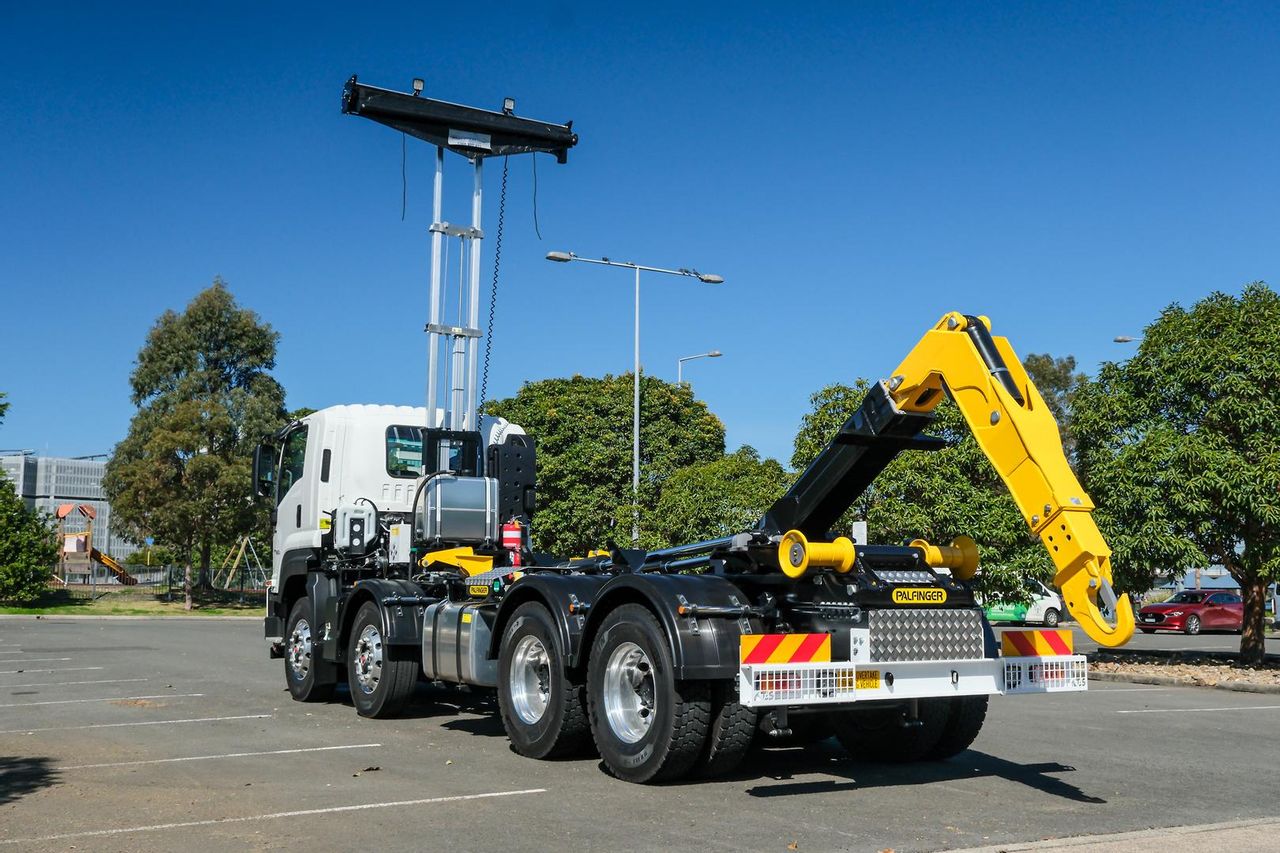

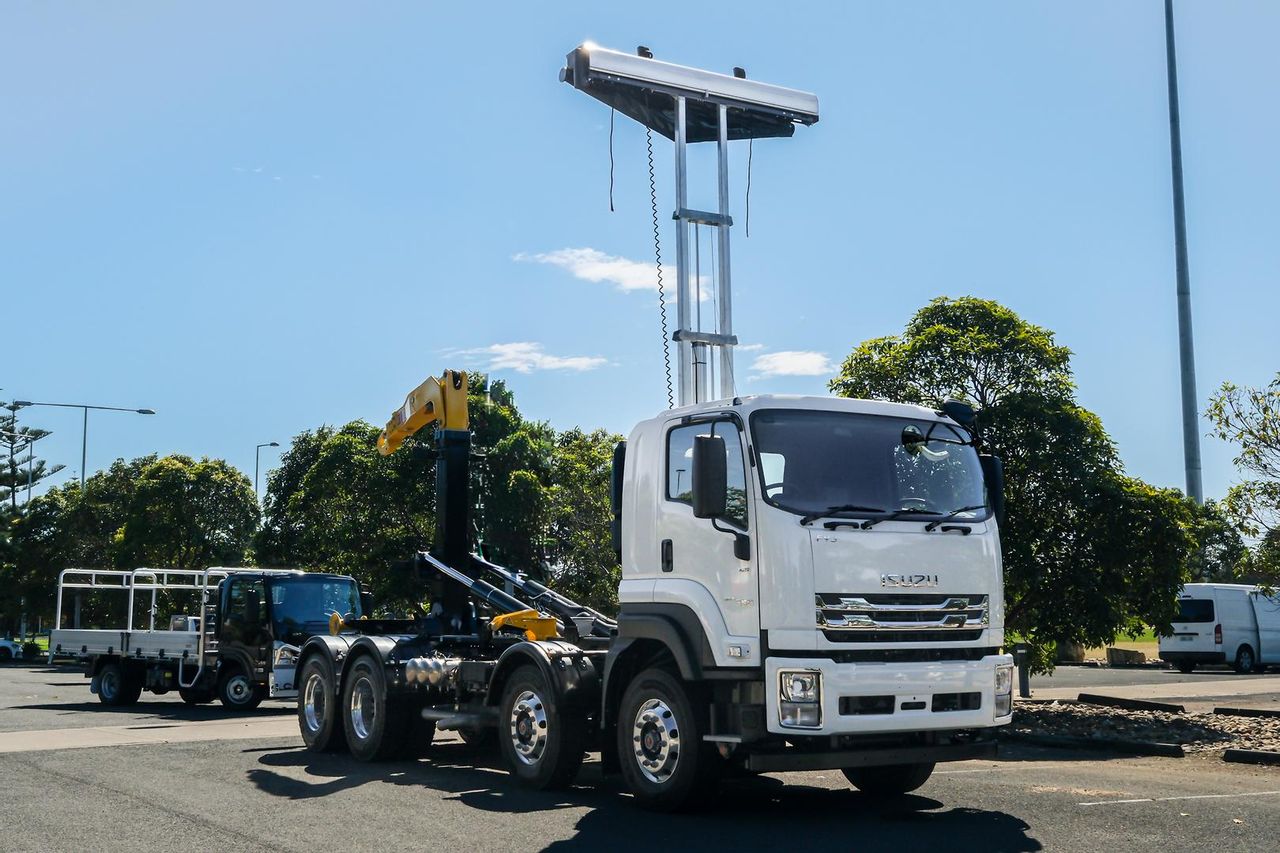

2025 Isuzu F Series FYJ300-350 Palfinger Hook
$397,258
Drive Away *
Overview
Features
Finance
BASICS
Condition
New
Category
Hooklift & Bi Fold

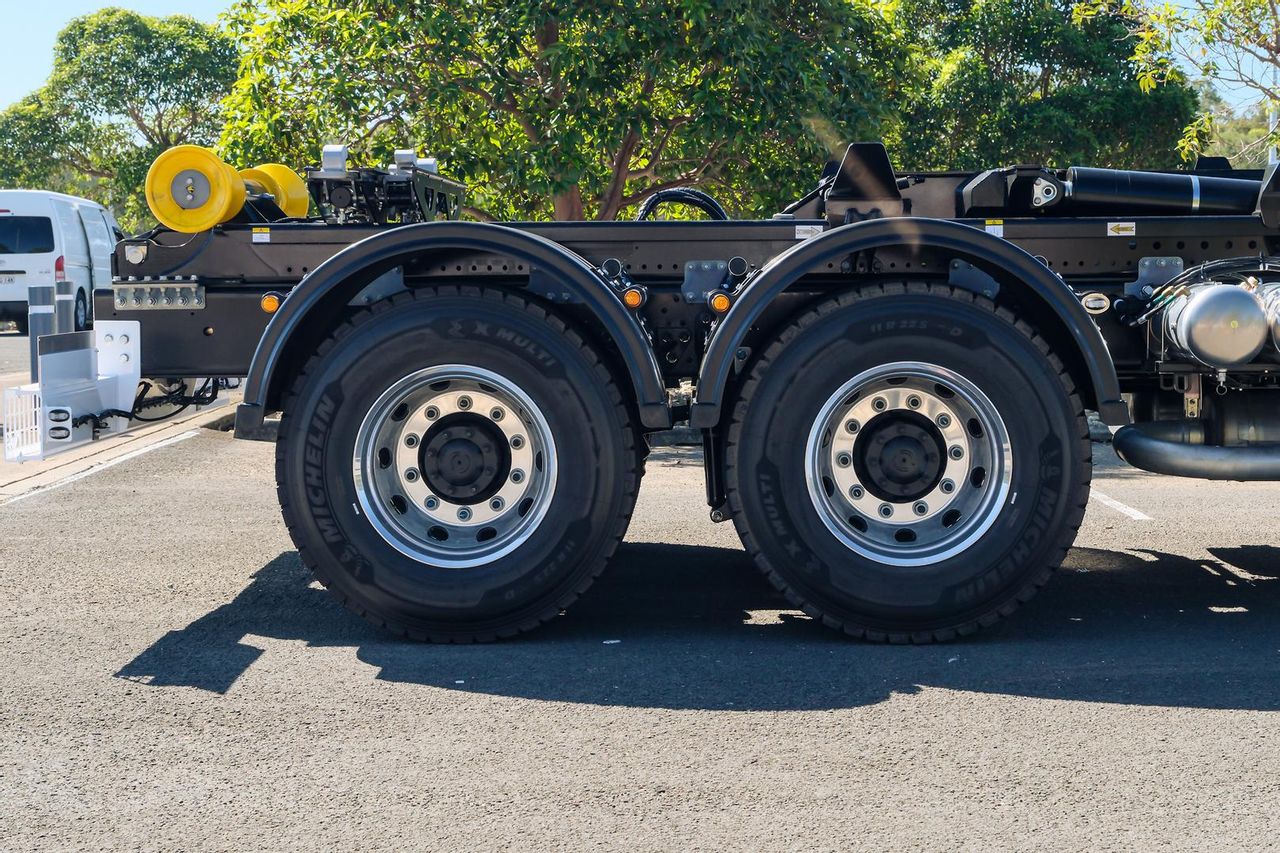

Axle Type
8x4
Odometer
200km
VIN
JALFYH77TP7000618
Stock No.
C00133
PERFORMANCE
Transmission
Automatic
Engine
350 HP
Dealer
Suttons Trucks Arncliffe
Lic. No. MD33 MVRL5064 MVRLM43651
DESCRIPTION

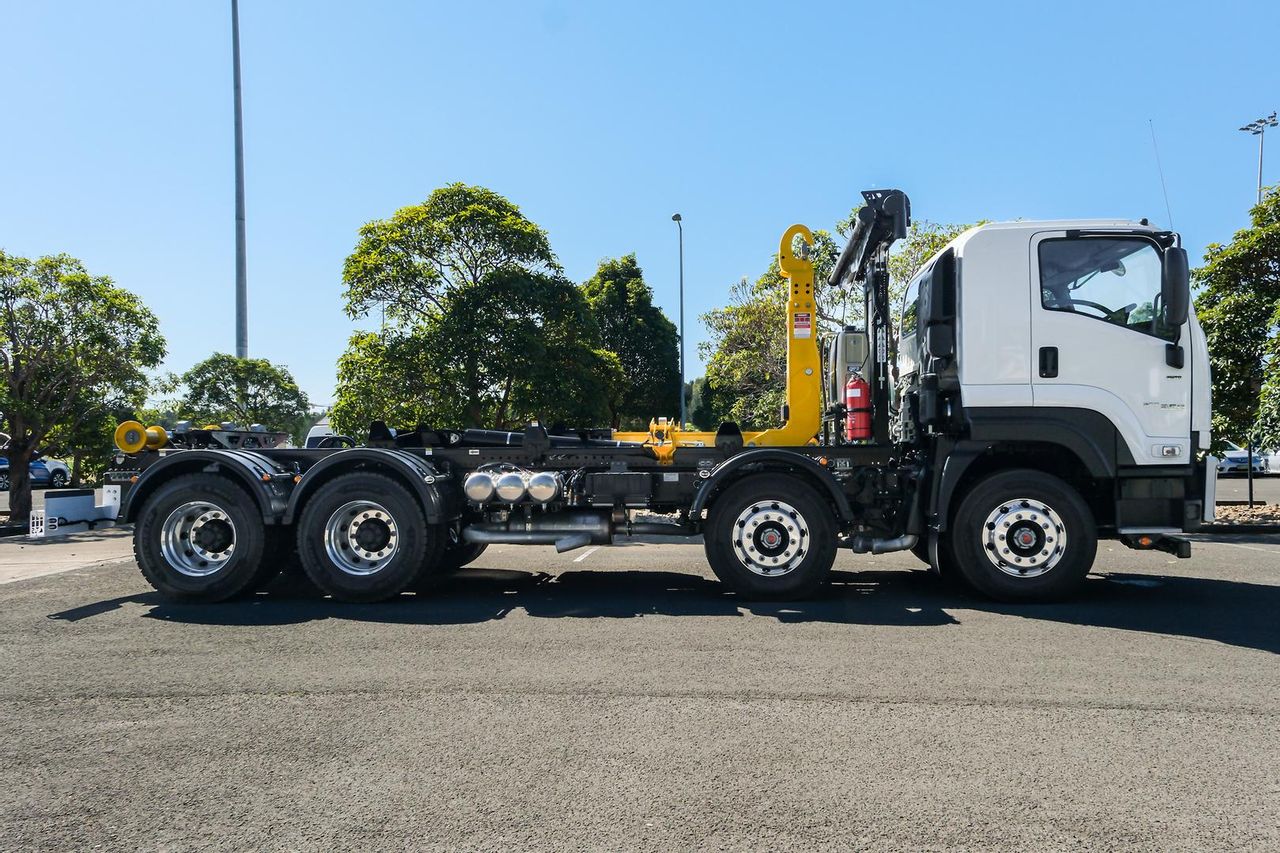

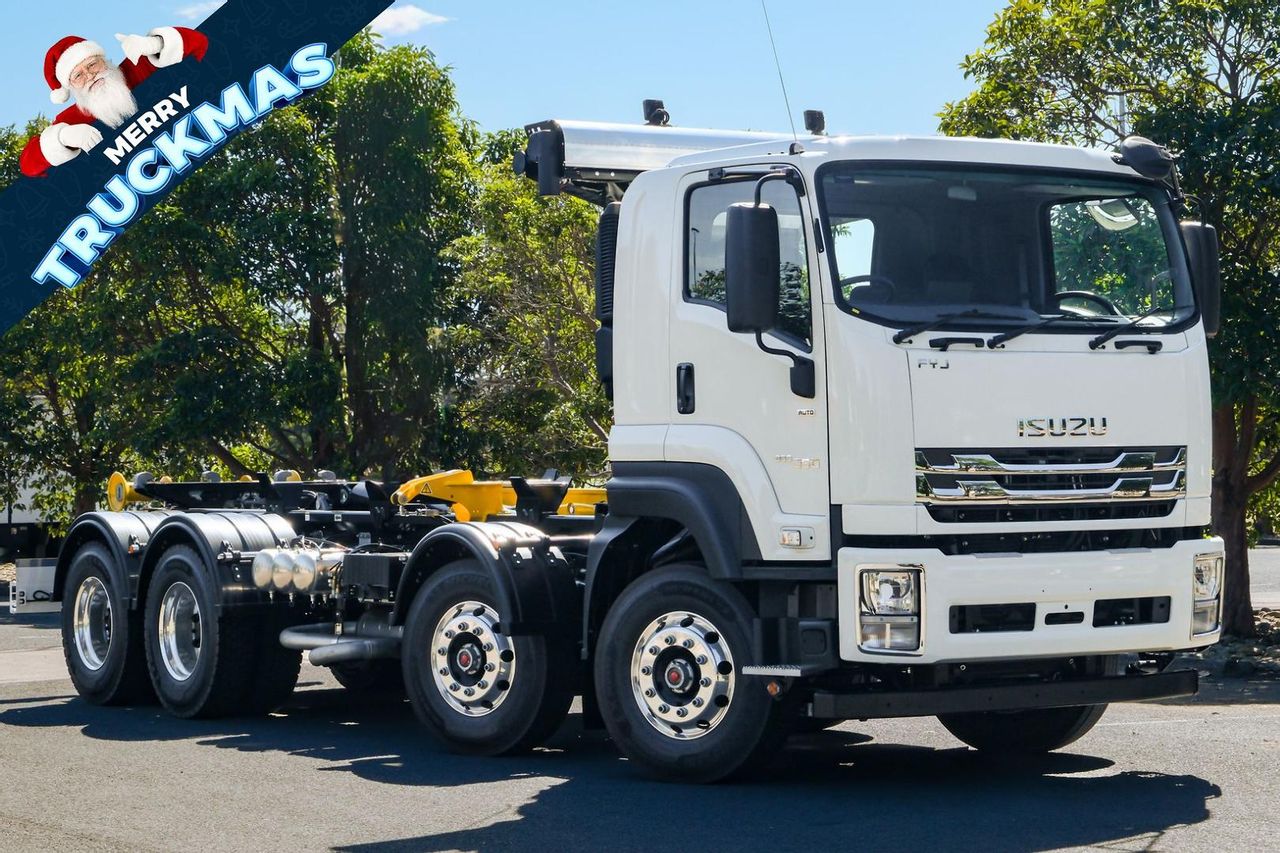

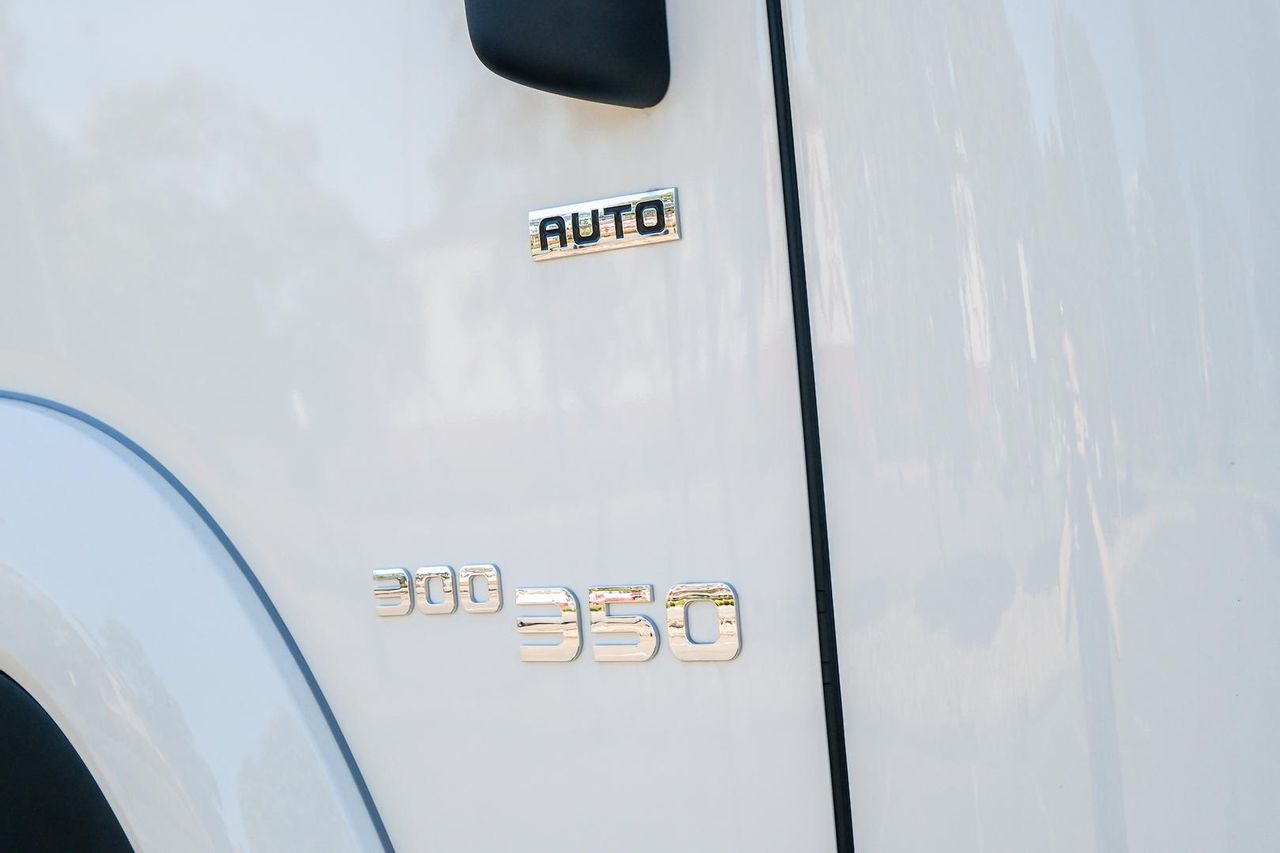

Isuzu FYJ 300-350 Auto MWB
Engine: Isuzu 6UZ1-TCN | 9.8L 6 Cylinder Turbo Diesel

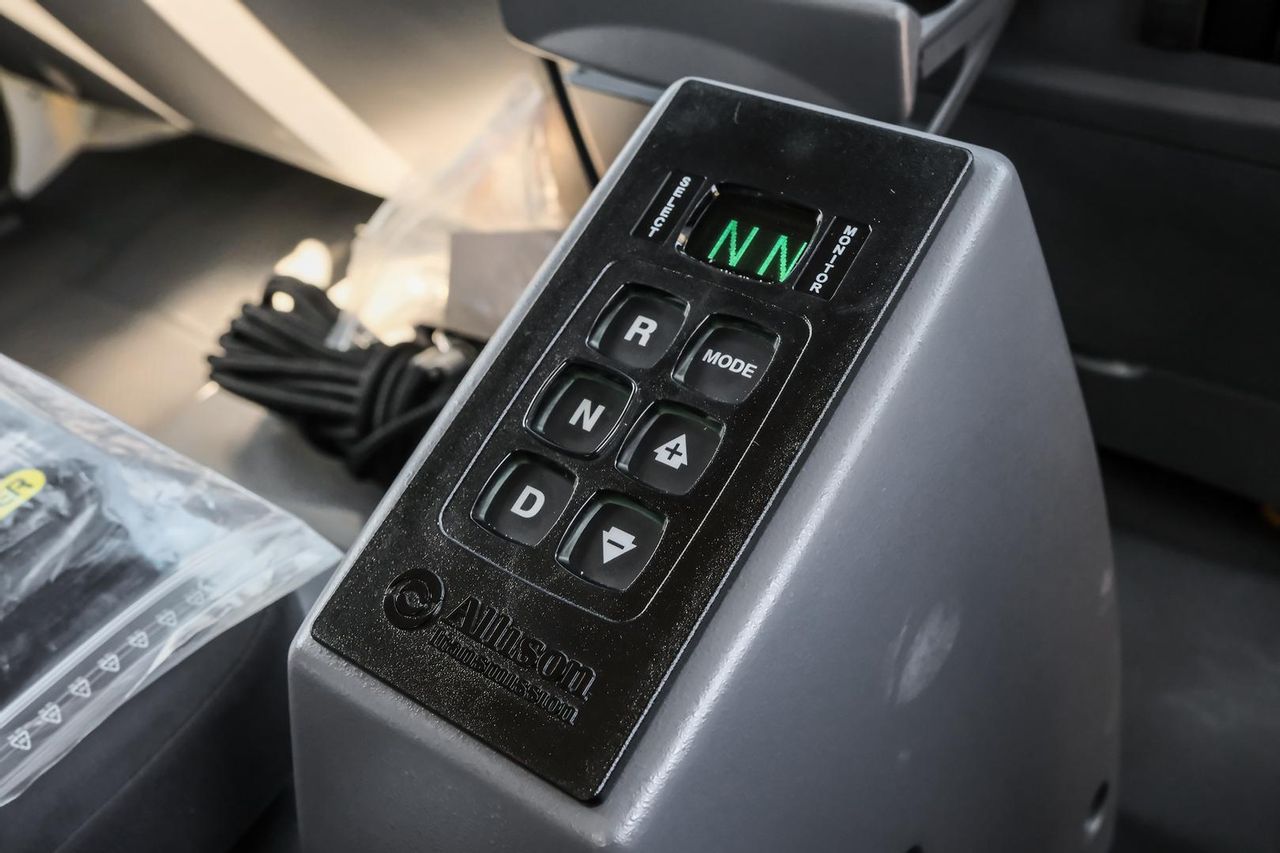

Transmission: Allison 4430 | 6 Speed Automatic Transmission
Power: 350 Hp | 257 kW @ 2,000 RPM
Torque: 1,422 Nm @ 1,400 RPM
Weight Rating: GVM: 30,000 Kg GCM: 45,000 Kg
Wheelbase: 5,770 mm
Safety Features:
ABS – Anti-Lock Braking System

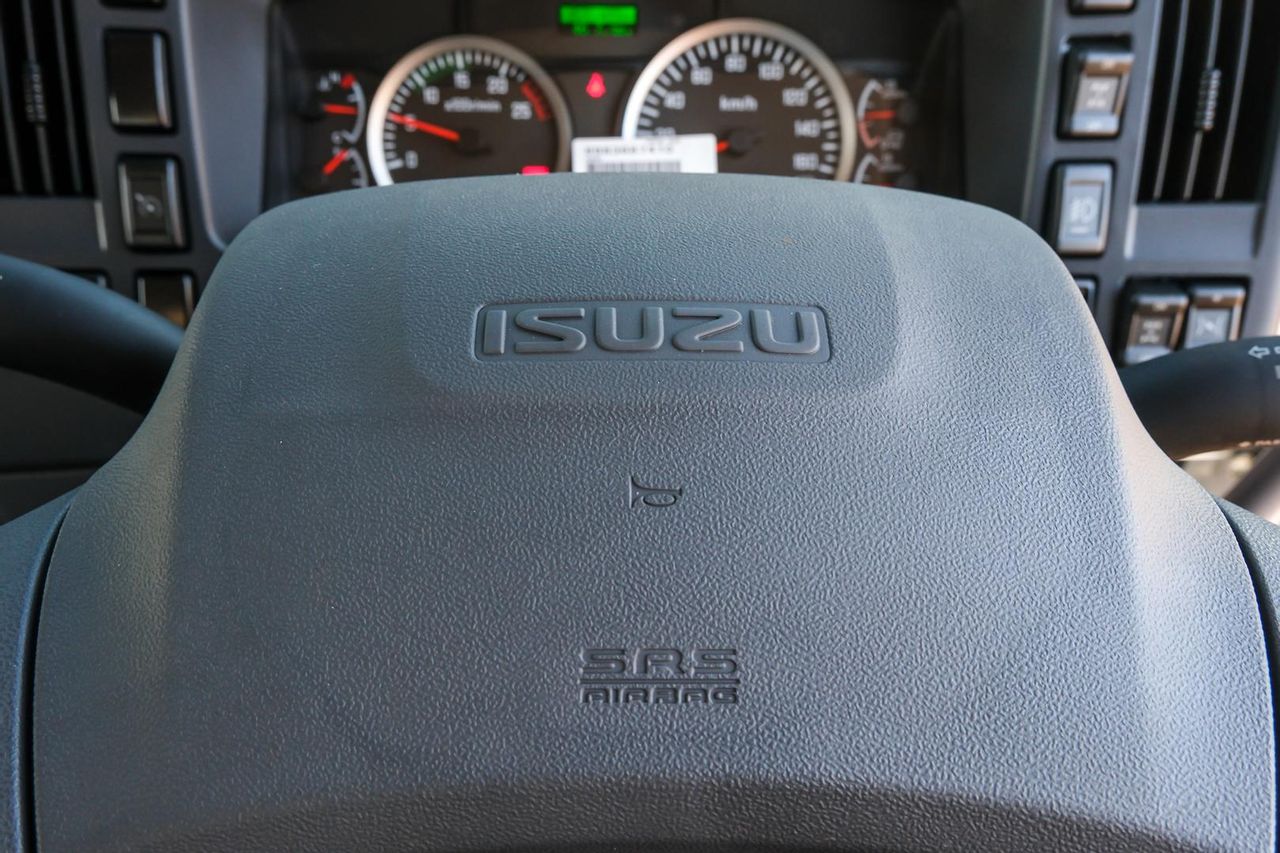

Driver Airbags
Driver Seatbelt Pre-Tensioners
ECE-R29 Compliant Cab

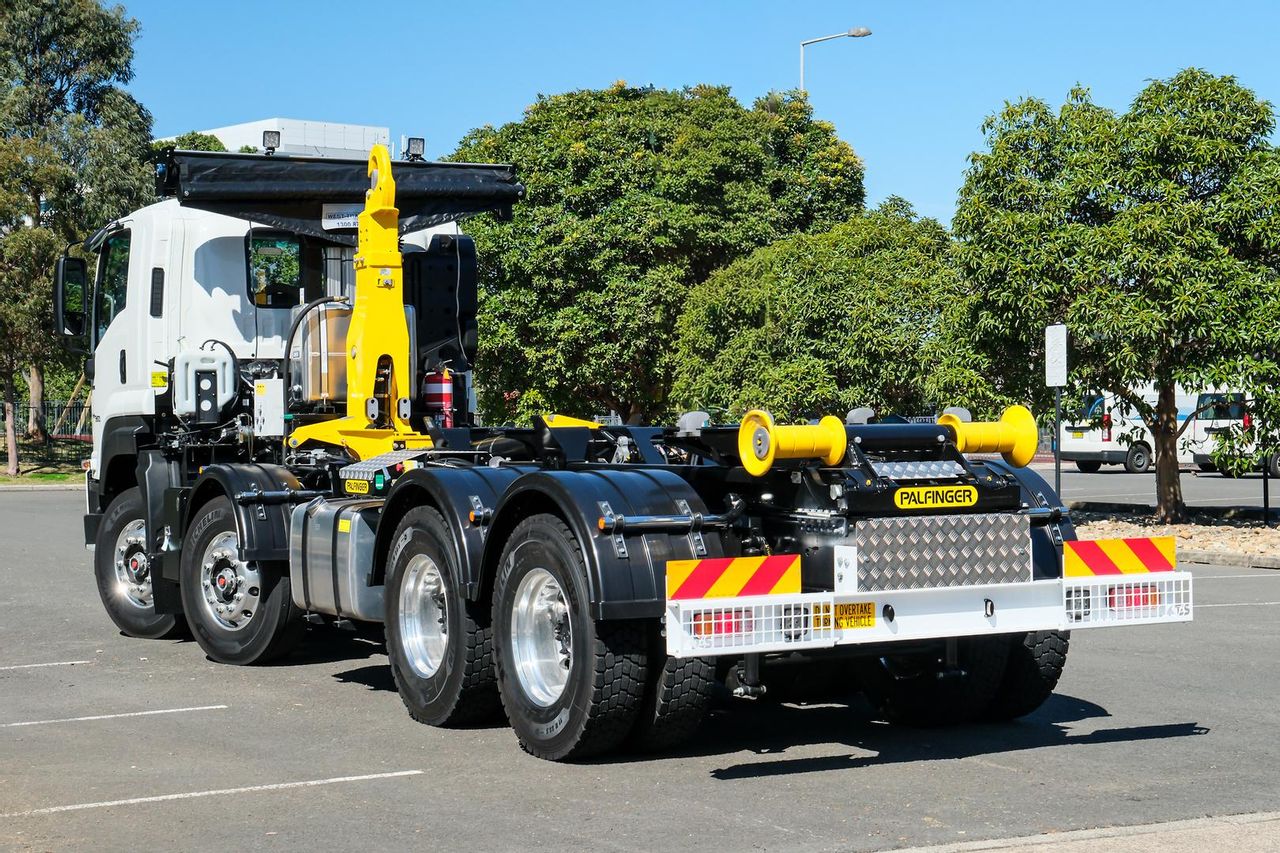

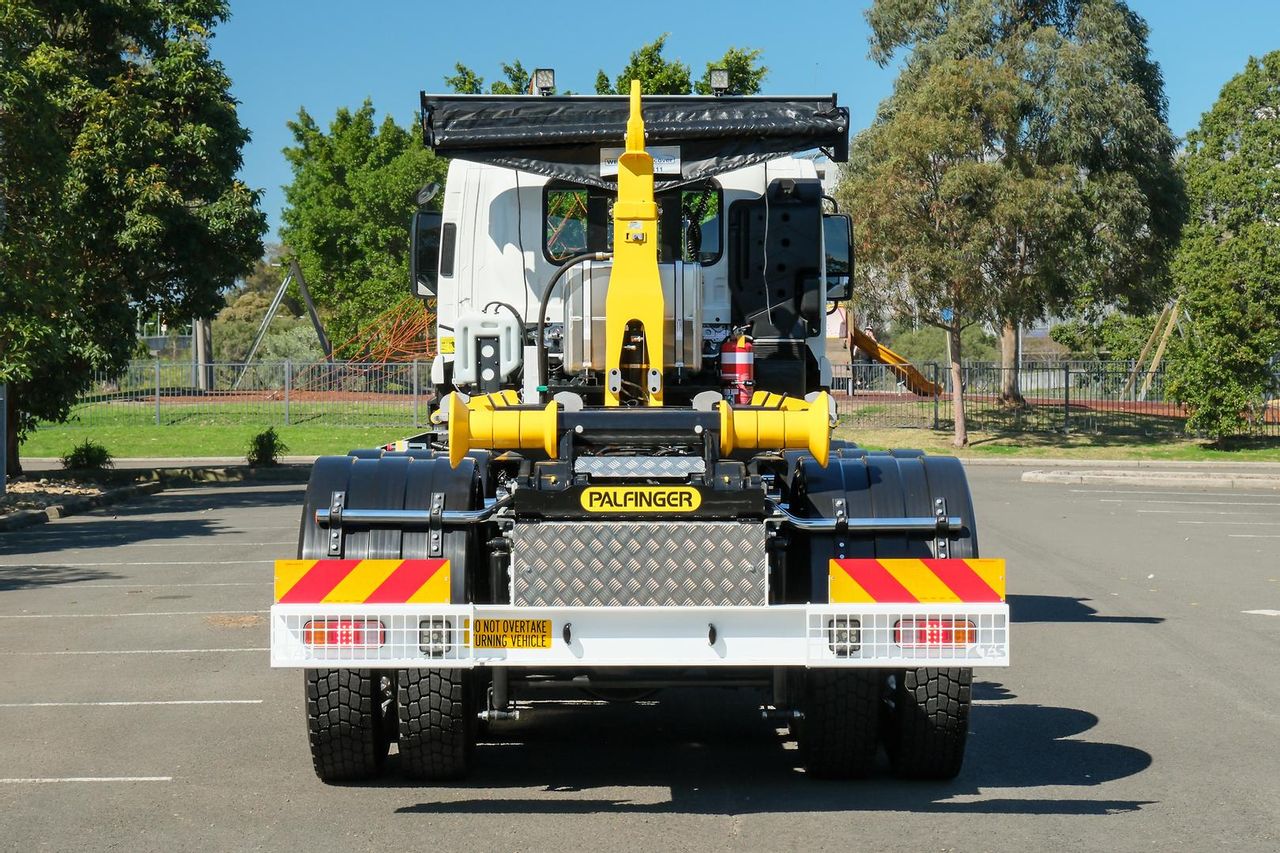

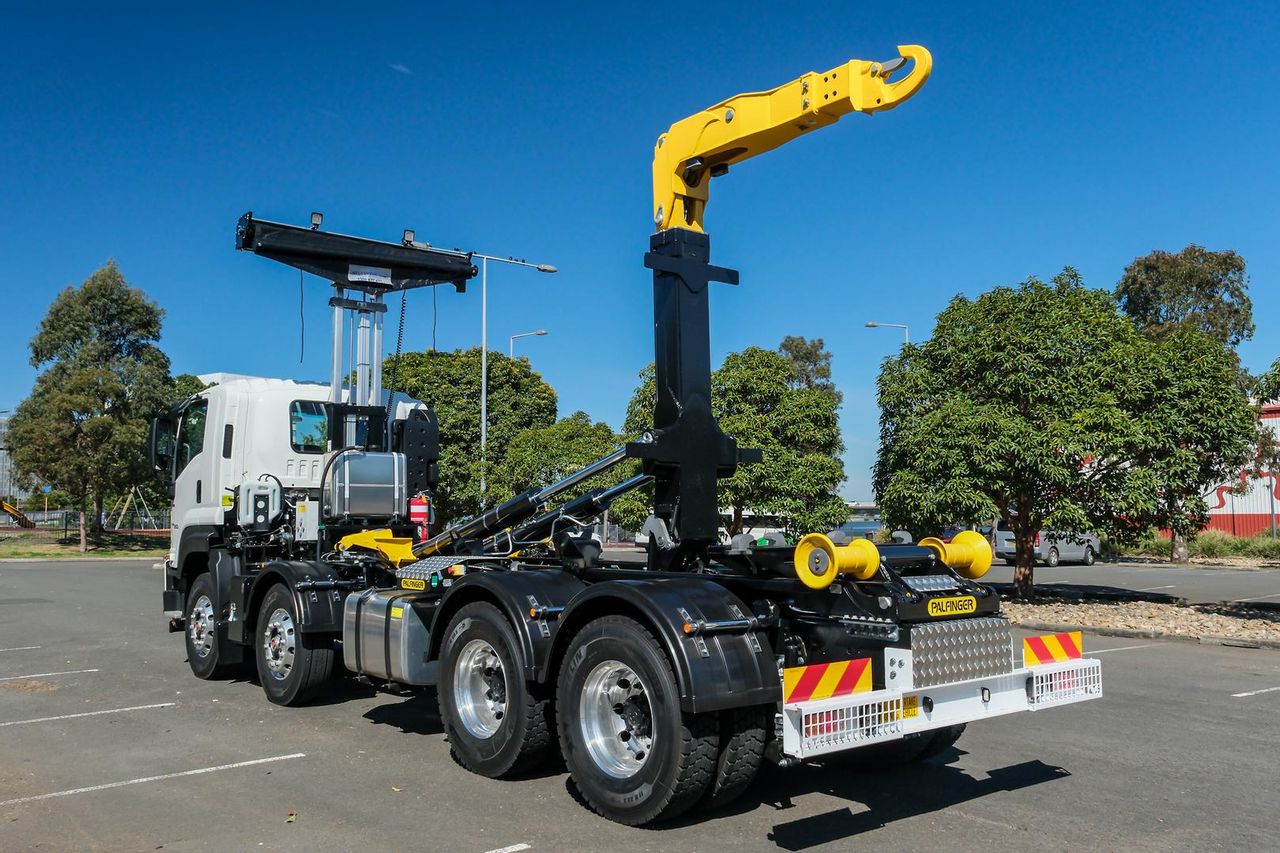

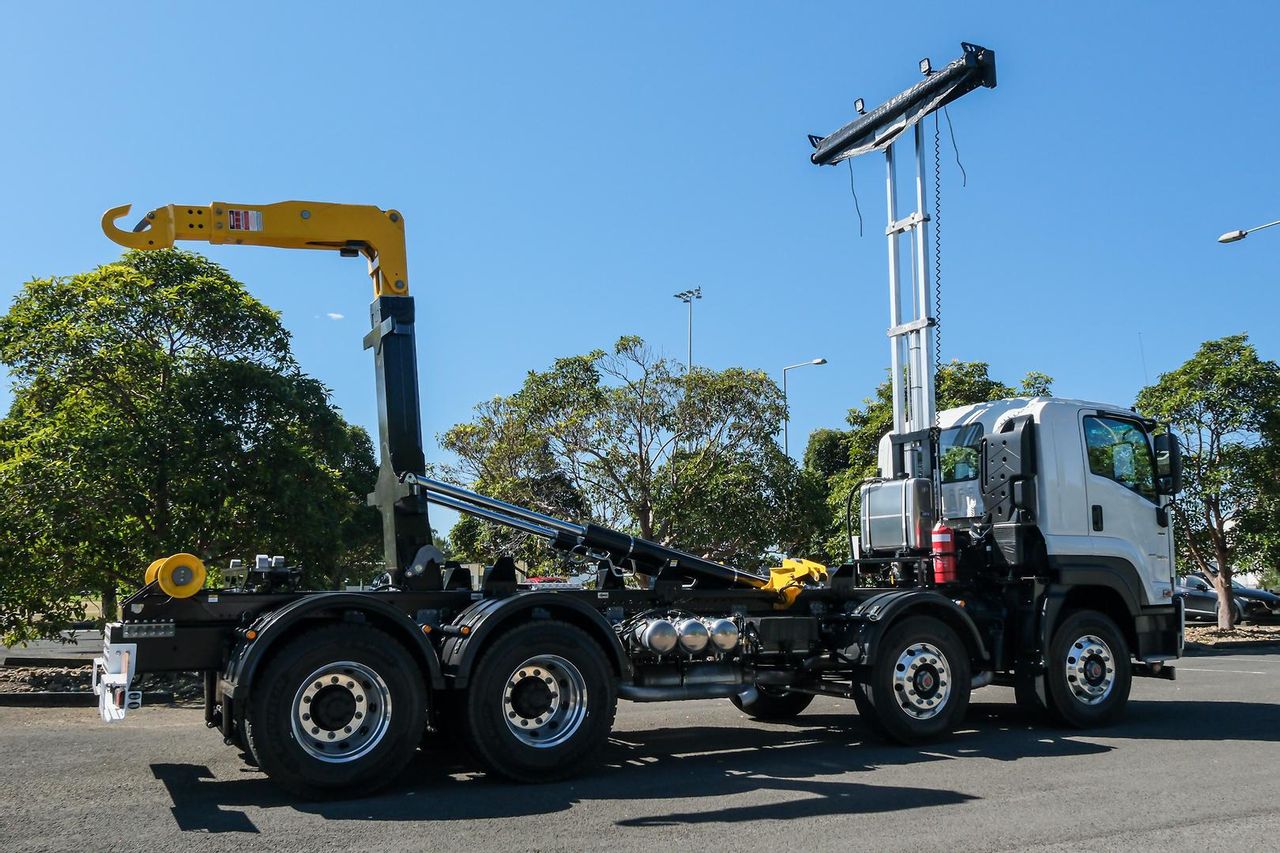

Palfinger
PH T22A DINO SLD 5
Standard items description
Palfinger chassis mounting kit
Hydraulic front bin locks (factory fitted)
Oil tank mounted behind cab/hydratarp
Tool box black small 600x400x500 fitted
Mesh tarp box small 600x450x450 fitted

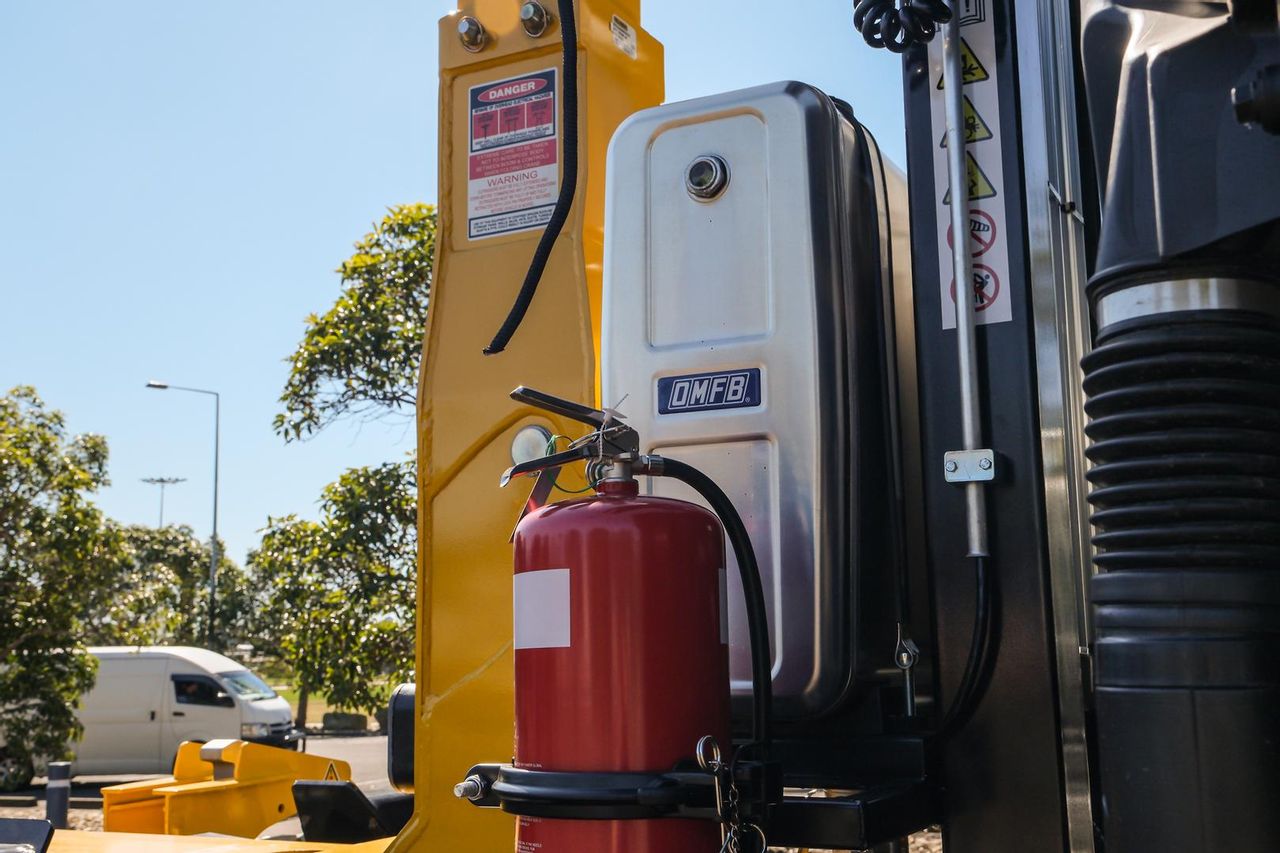

9 kg fire extinguisher
LED work lights on tarp x4

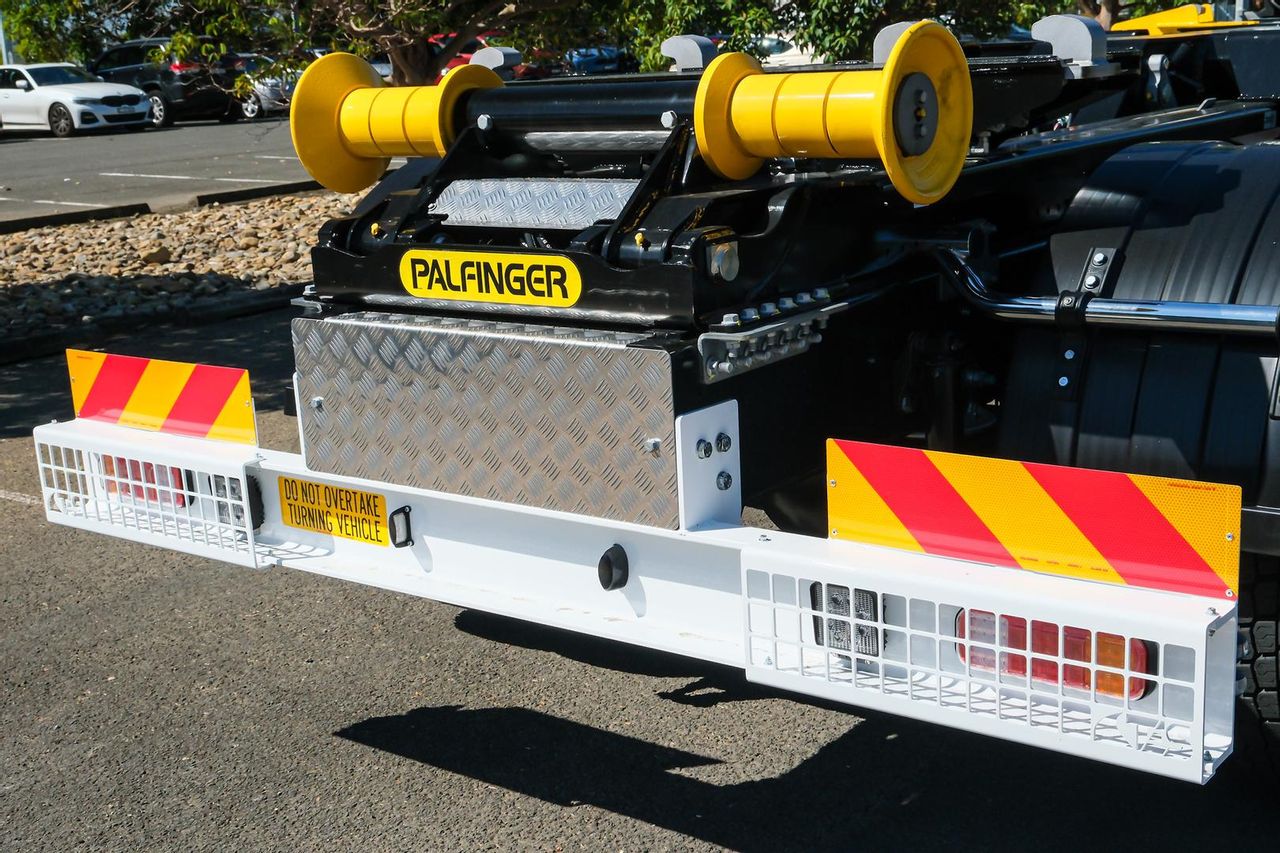

HD LED tail lights with mesh covers

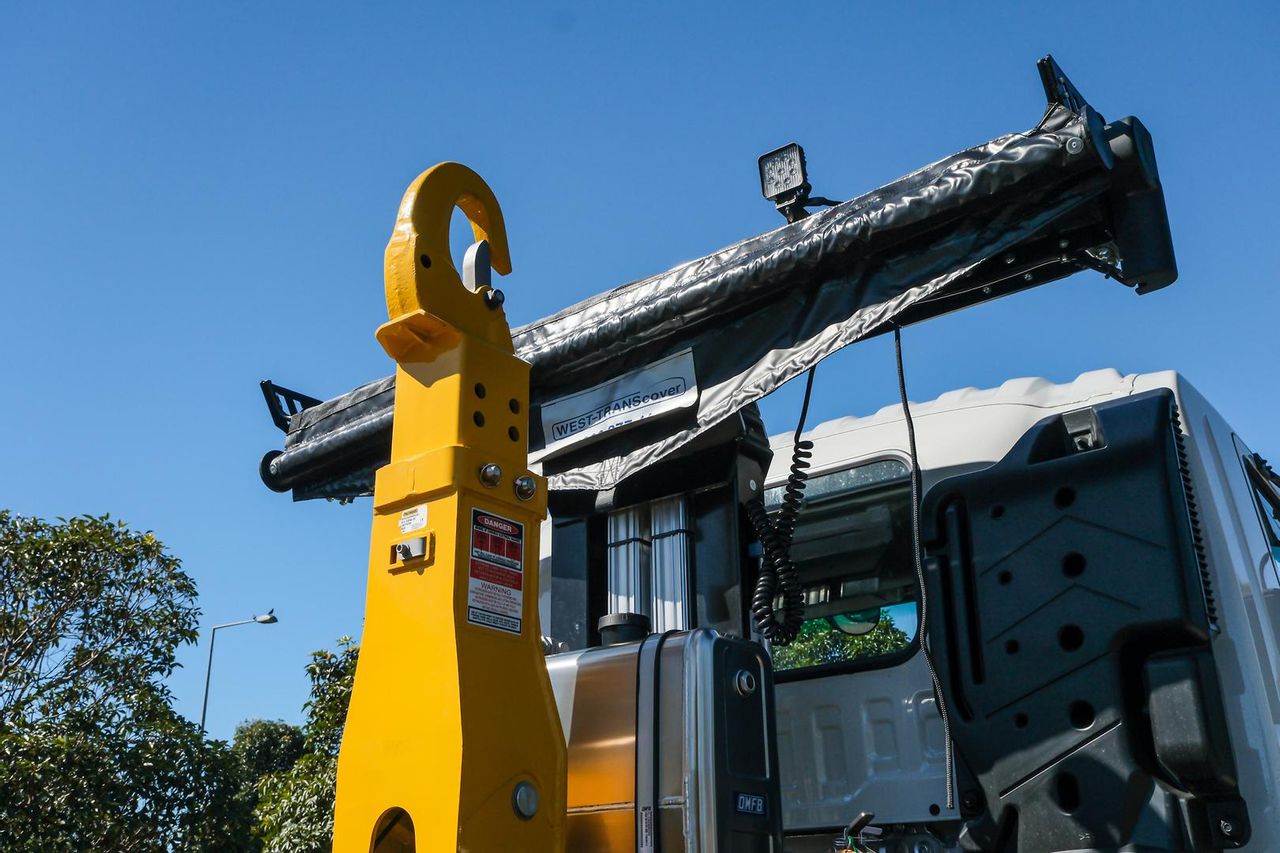

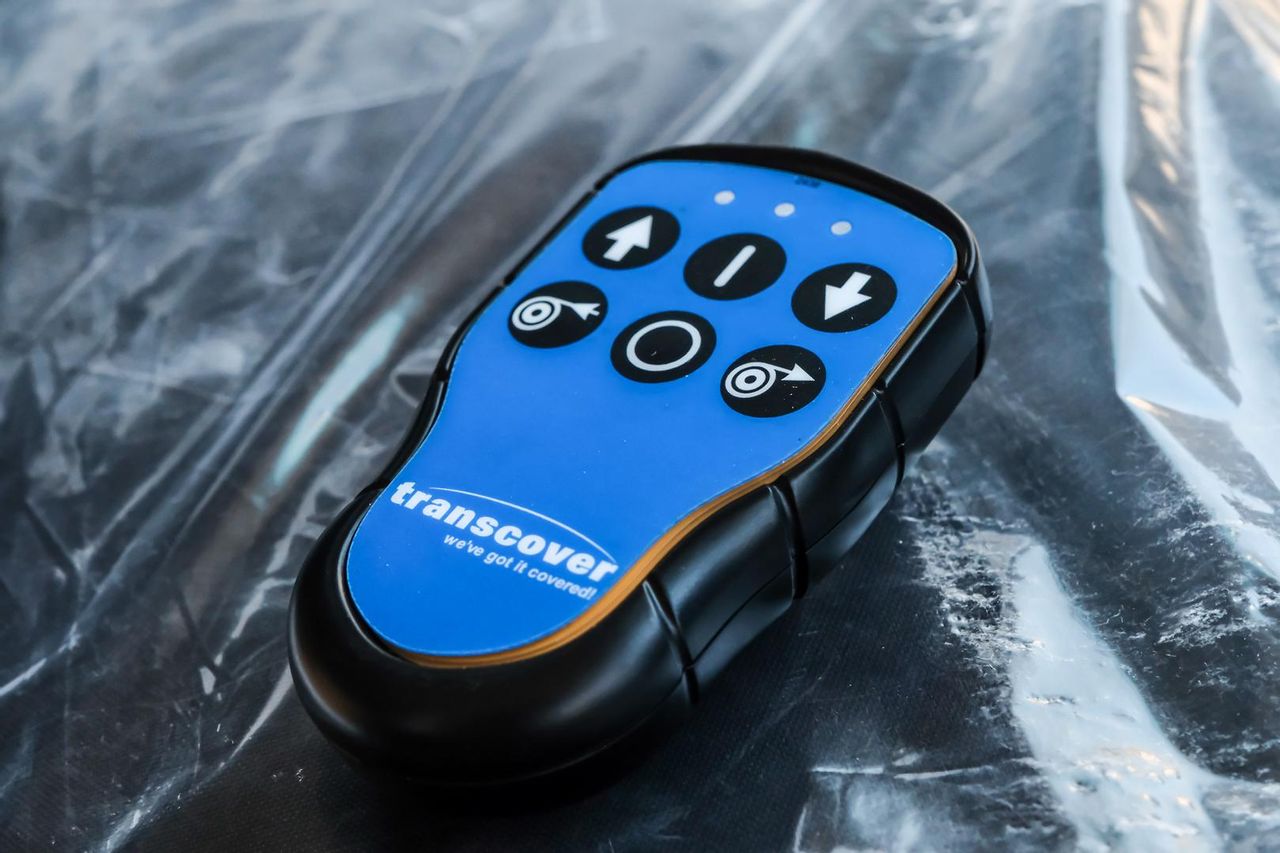

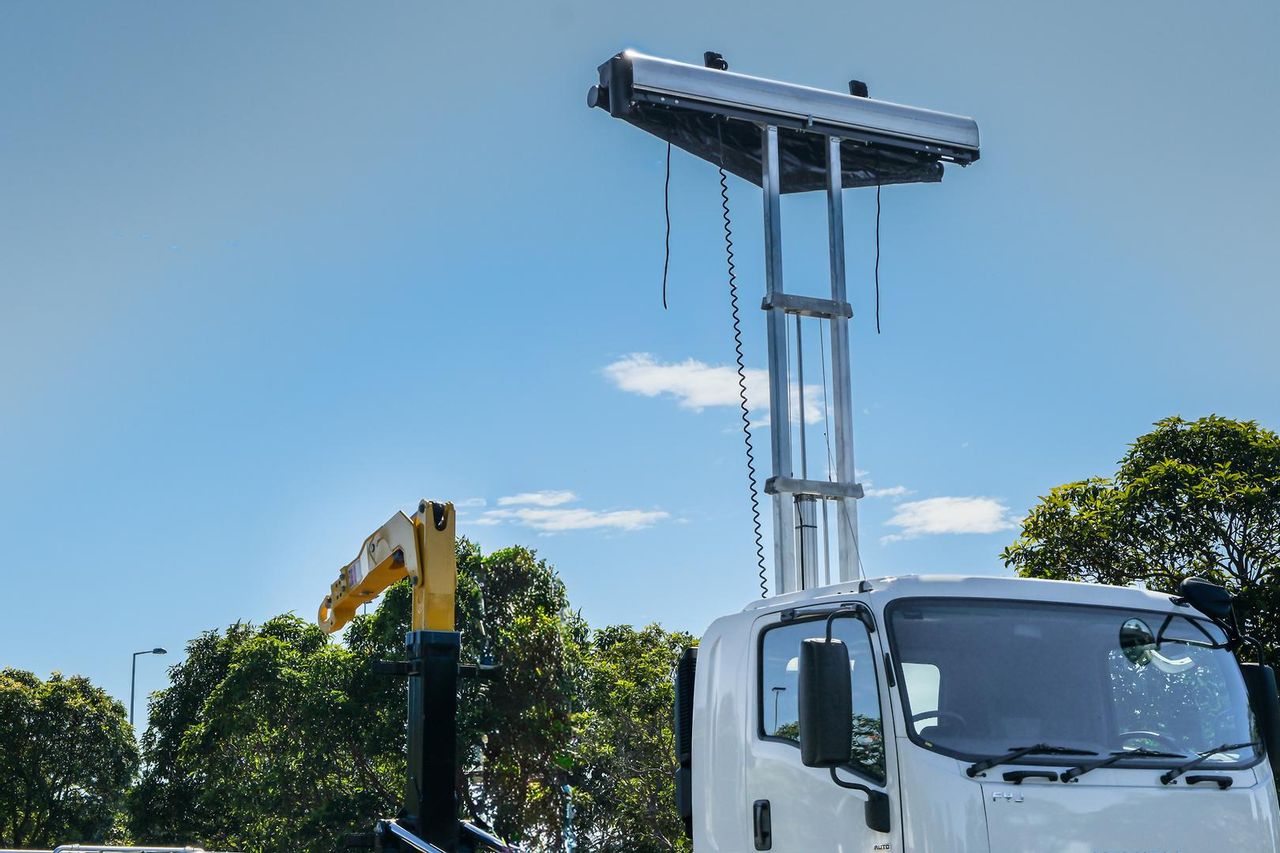

West-Trans HyCover Tarp System

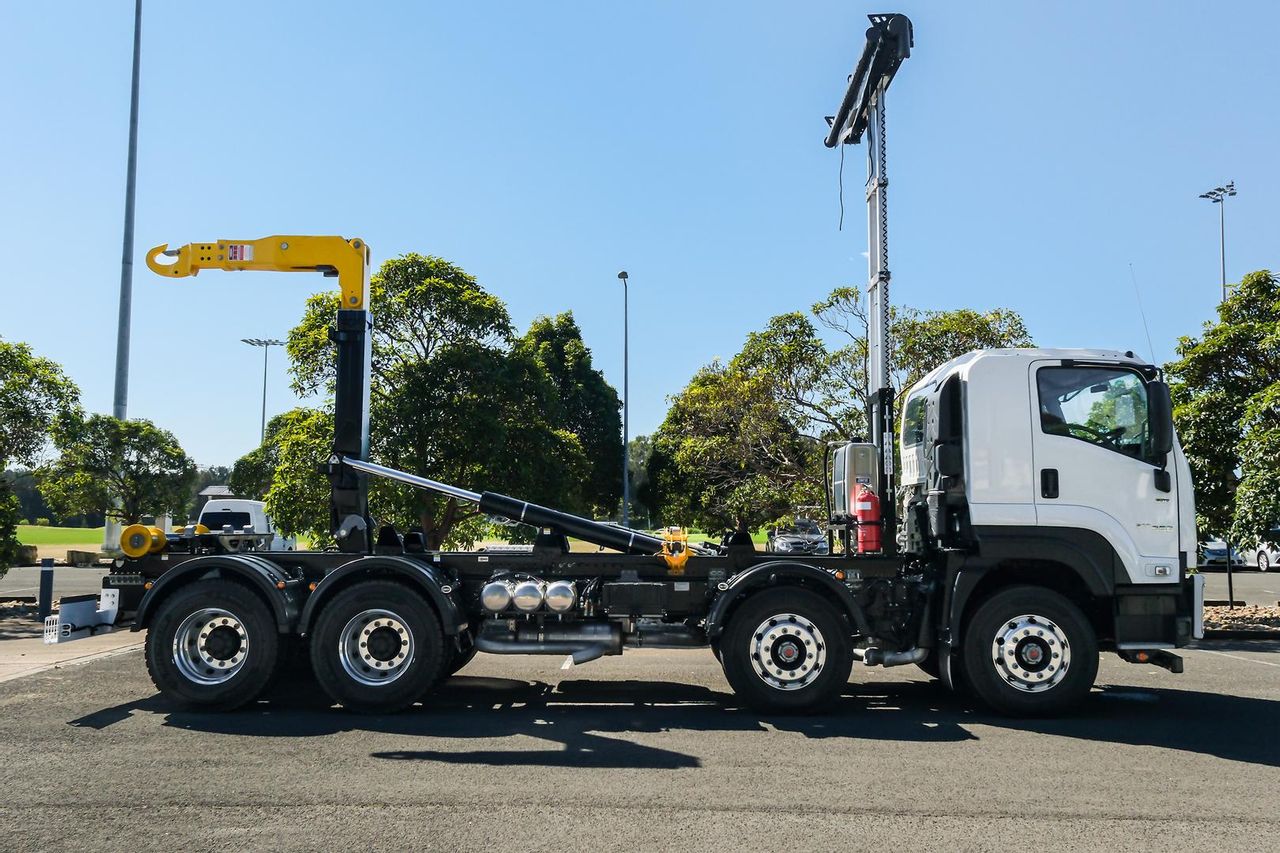

Palfinger Hookloader Features:
-
Low tare weight.
-
Soft stop on lowering side of main lift cylinders.
-
Safety interlock systems.
-
Load hold valves on lift, telescopic and bin lock cylinders.
-
High pressure and return line filters.
-
Bolted container rests
General technical data:
-
22 t maximum lifting capacity.
-

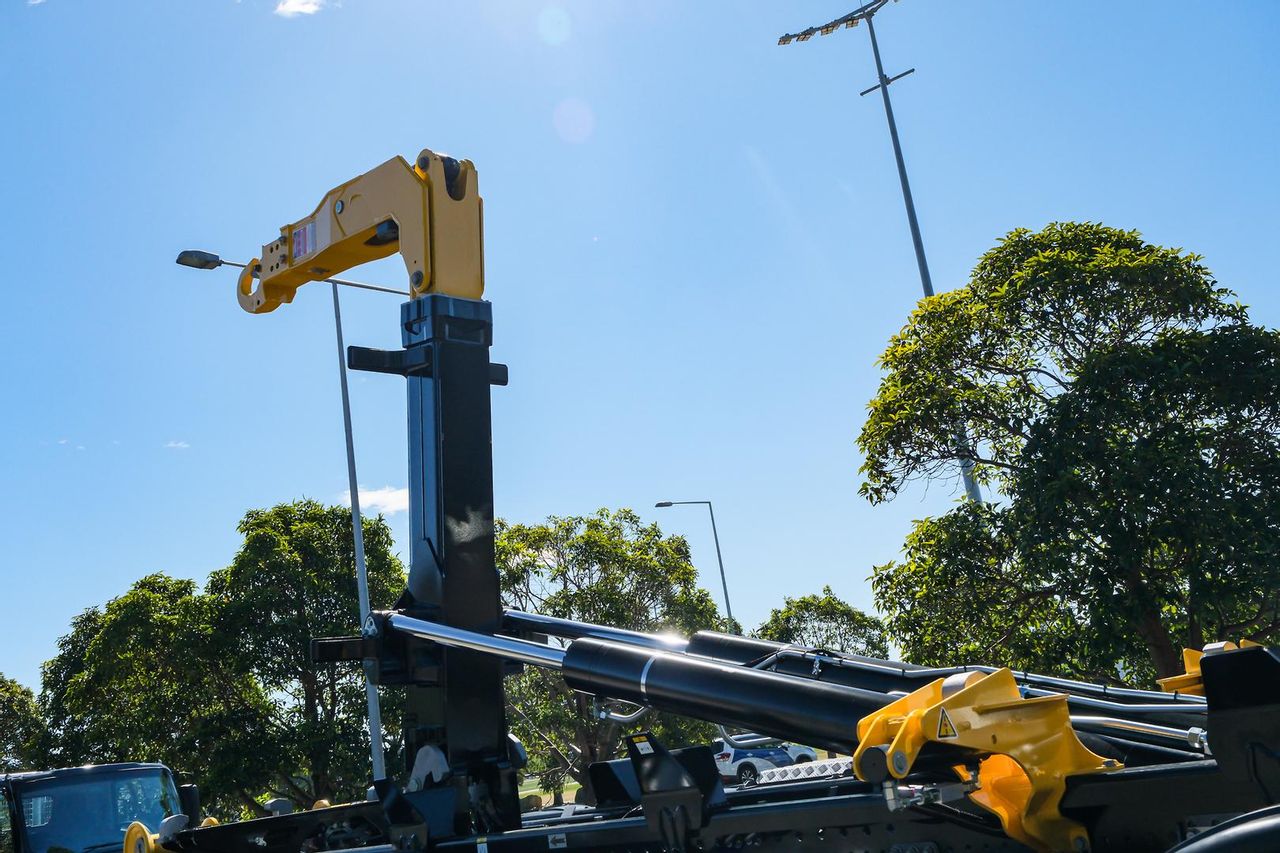

Telescopic & articulated hook arm.
-
6175 mm unit length.
-

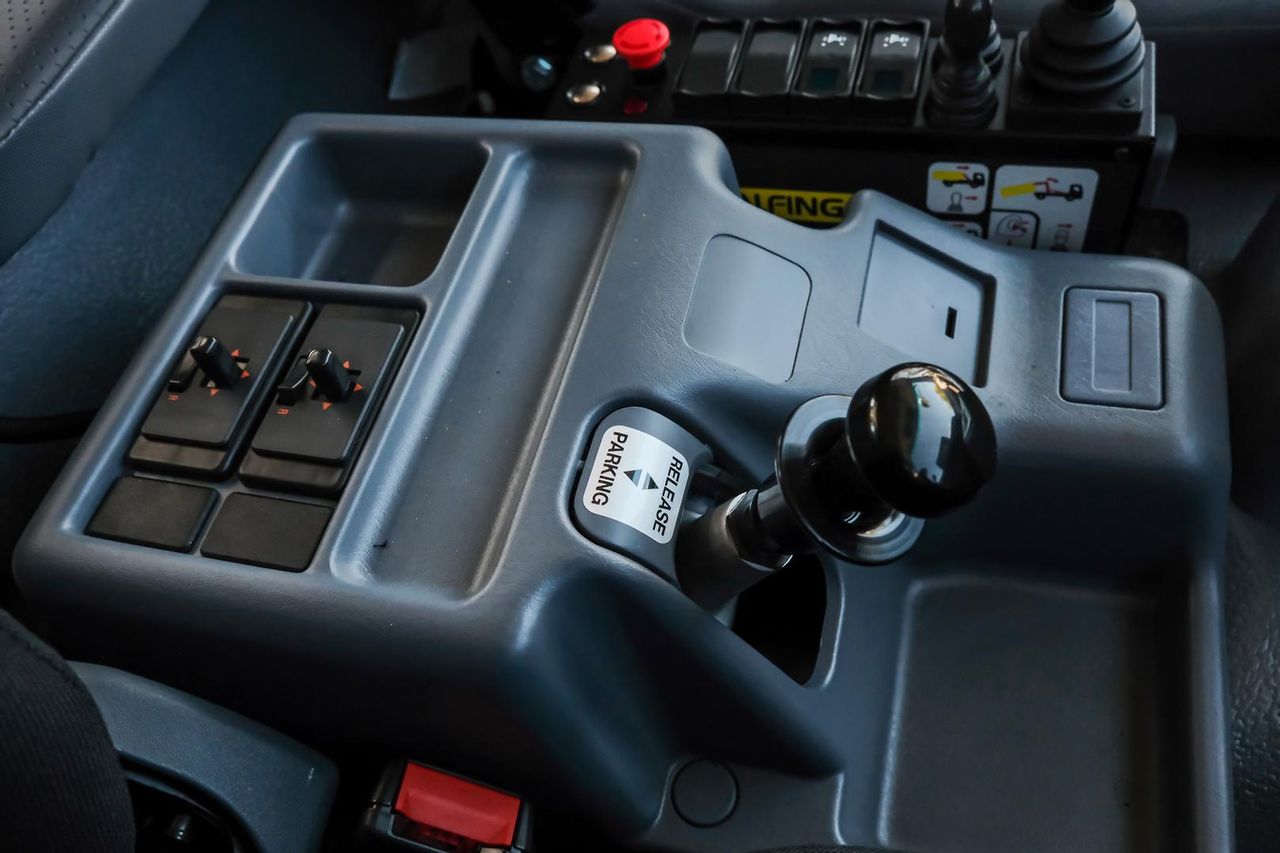

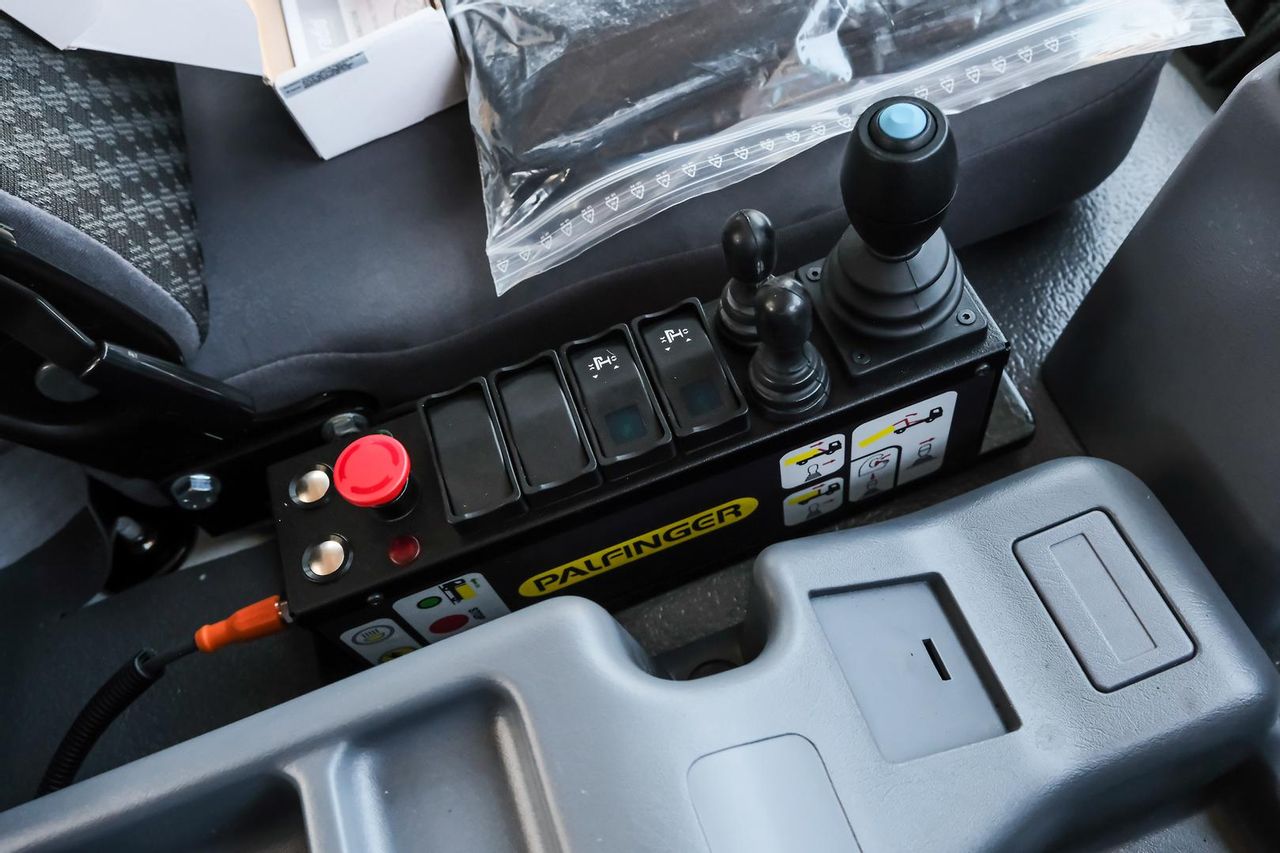

In cab PAD controls.
-
Hydraulic rear bin locks: - mm outside. Inside – 660 mm.
-
Anti-buckling system (fuse on tipping frame locking).
-
Optional front bin locks 1200-840 mm outside locking only.
-
Pneumatic safety hook.
-
Oil tank.
-
Painted RAL 9005 - Black.
-
Fitted to suitable chassis; including mudguards, rear bumper, manufacturer’s tail lights, and clearance lights
Pump Capacity:
-
Pump pressure: 310 Bar
-
Pump volumetric flow rate: 80 L/min (for a SDS150 valve bank)
Warranty:
-
12-36 months. Warranty work shall be carried out by Palfinger designated workshops
Standard Features:
ADR 42 Compliant Sleeper with Mattress
Emissions – Cooled EGR with Exhaust Diesel Oxidation Catalyst (DOC)
ADR 80/03 Euro V / EEV Compliant
Exhaust Braking Assist
Direct Injection High Pressure Common Rail System
400L Frame Mounted Lockable Steel Fuel Tank
90° Opening Internally Reinforced Doors
Heated and Power Adjusted Top Mirrors and Bottom Convex Spot
Mirrors
Central Locking with Remote Entry and Immobiliser

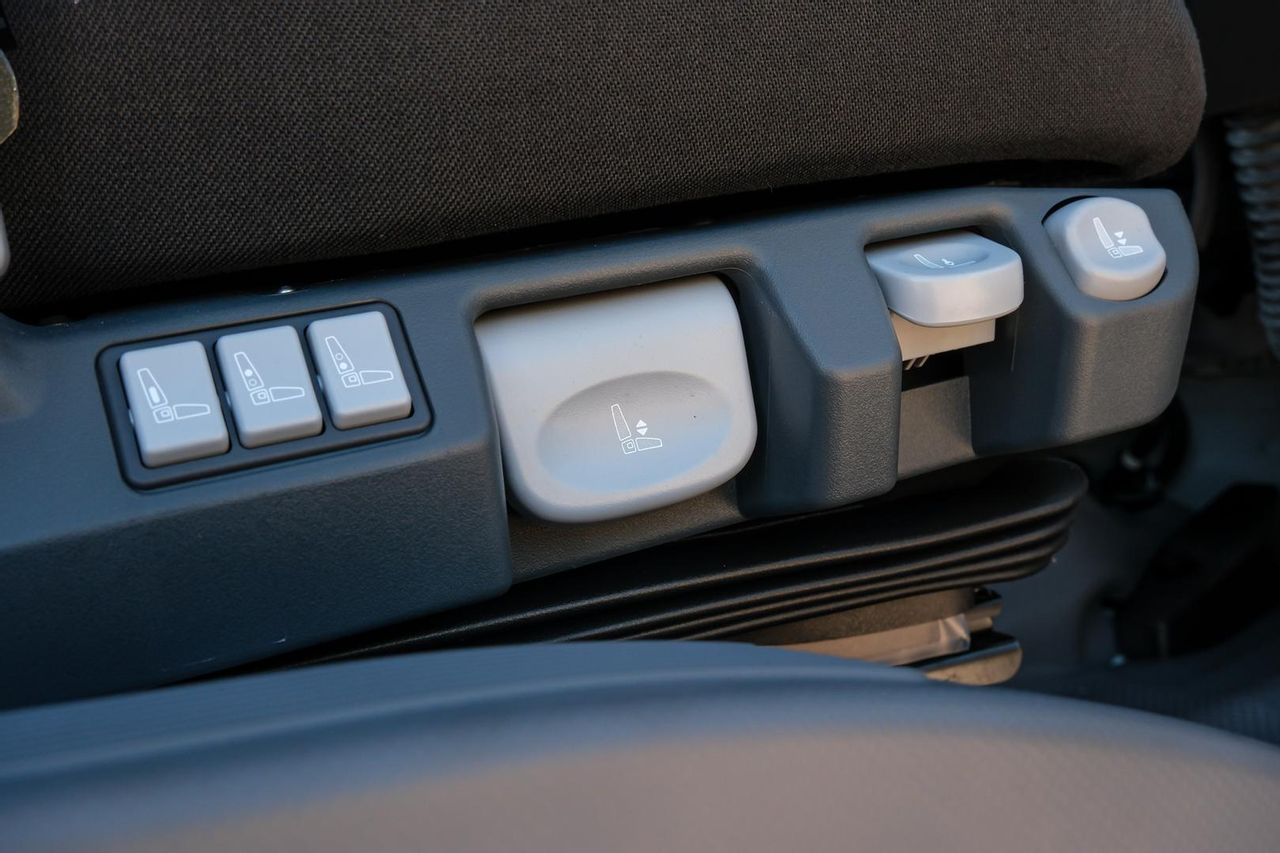

Driver’s ISRI 6860/875 NTS Air Suspension Seat

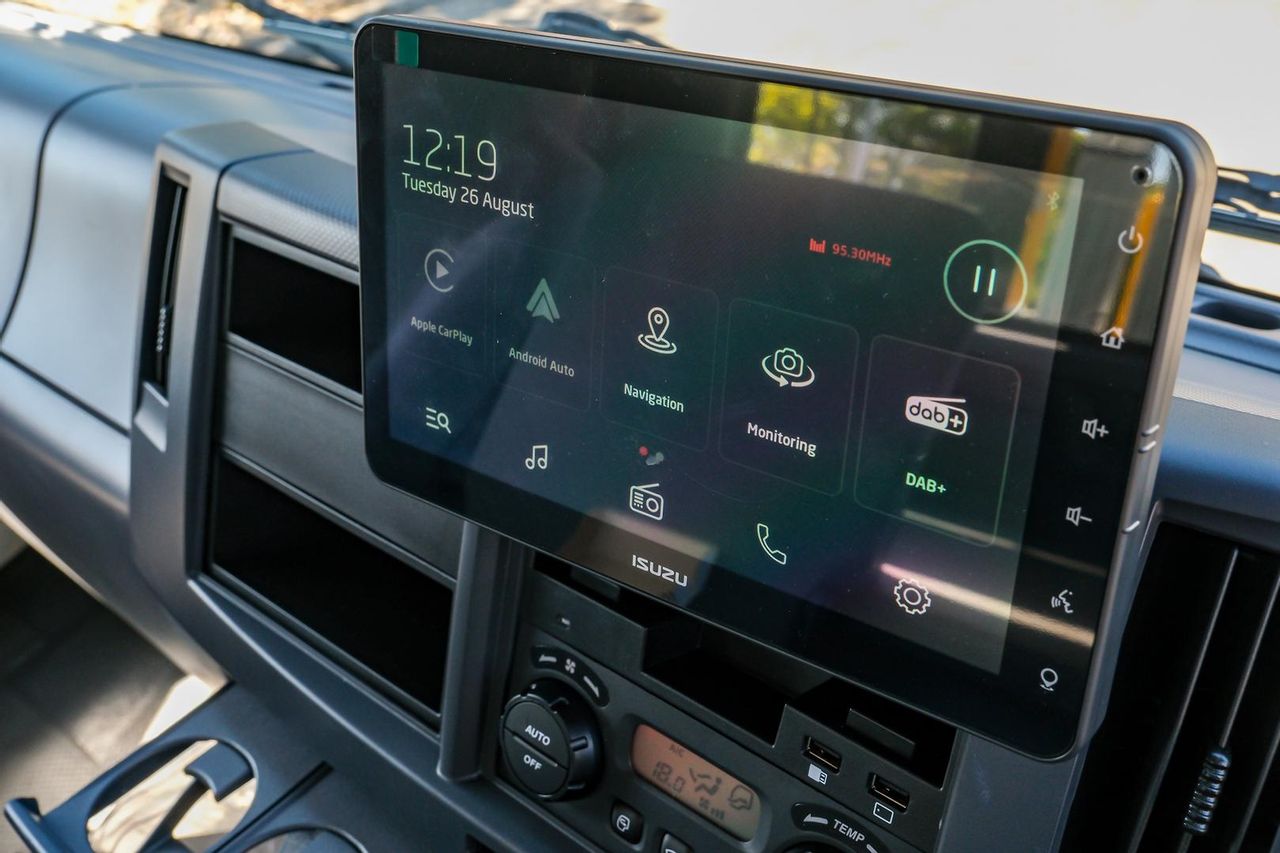

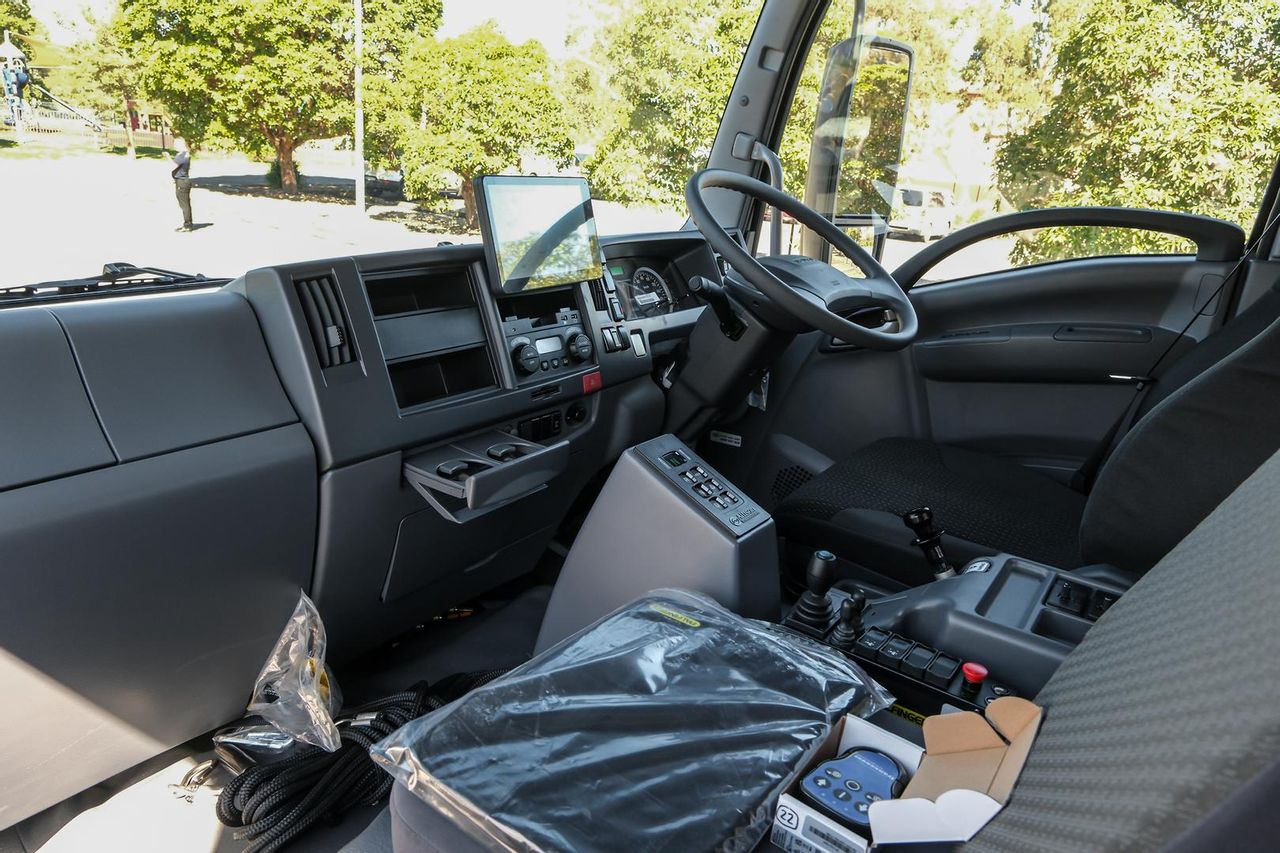

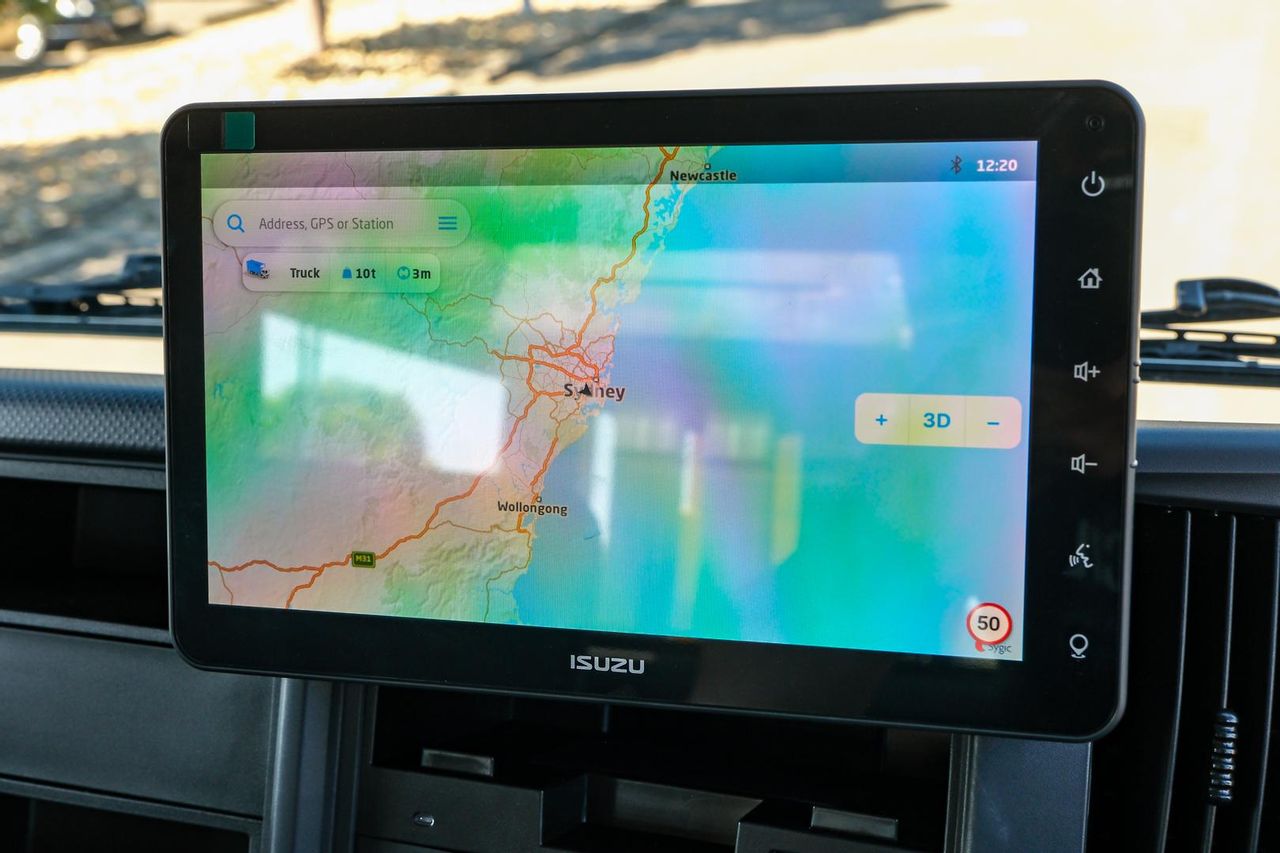

10.1" 1080p High-Definition Audio Visual Unit with Capacitive Touch
Truck Tailored GPS Based System
Android Auto / Apple CarPlay Compatible
USB 3.0 Socket
$397,258
Drive Away *
Enquiry Sent
We will contact you as soon as possible to confirm your enquiry.
Something went wrong
Try Again
An error occurred and your details could not be sent through.
Try Again
Features
GCM
45000 kg
GVM
30000 kg
Suspension
—
Wheelbase
—

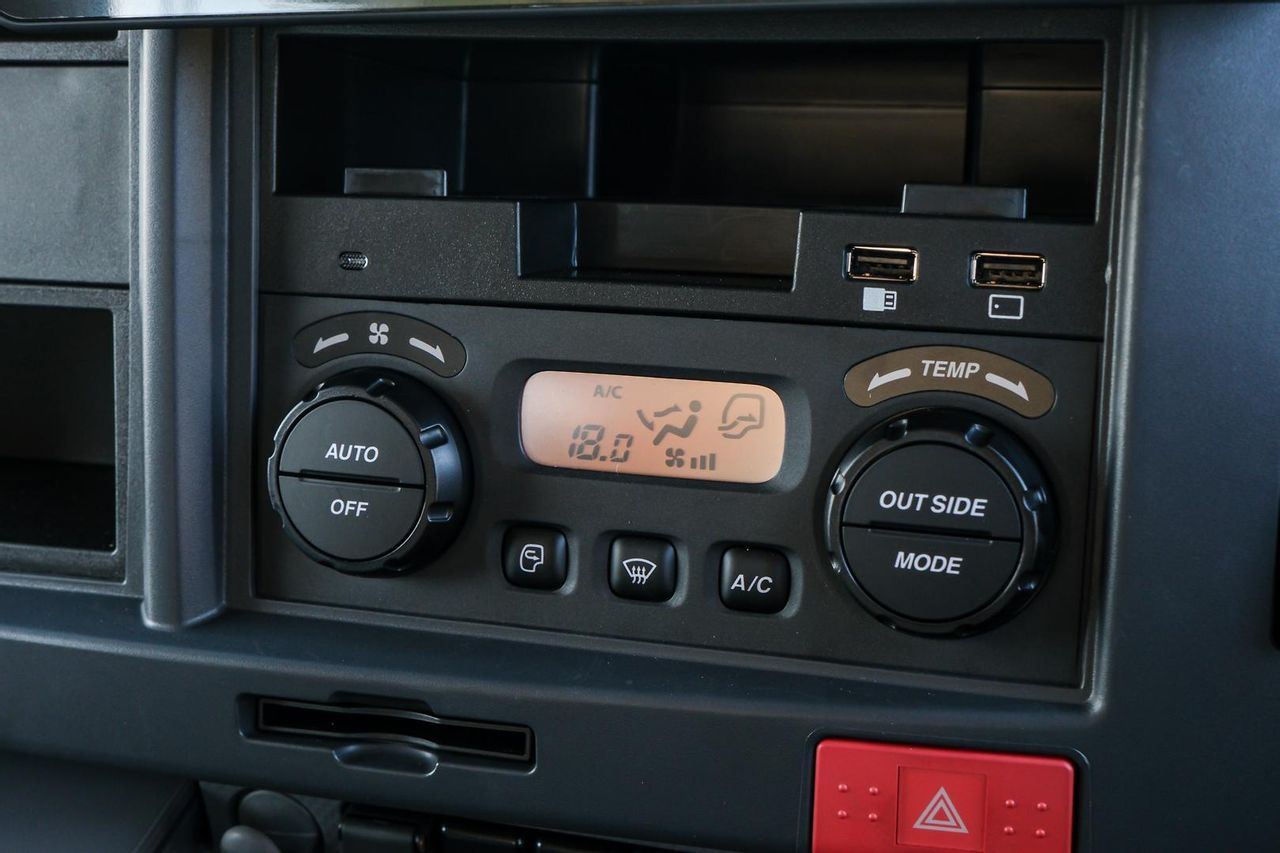

Air Conditioning
Yes
Radio
No
Sleeping Quarters
No
Speed Limiter
No
