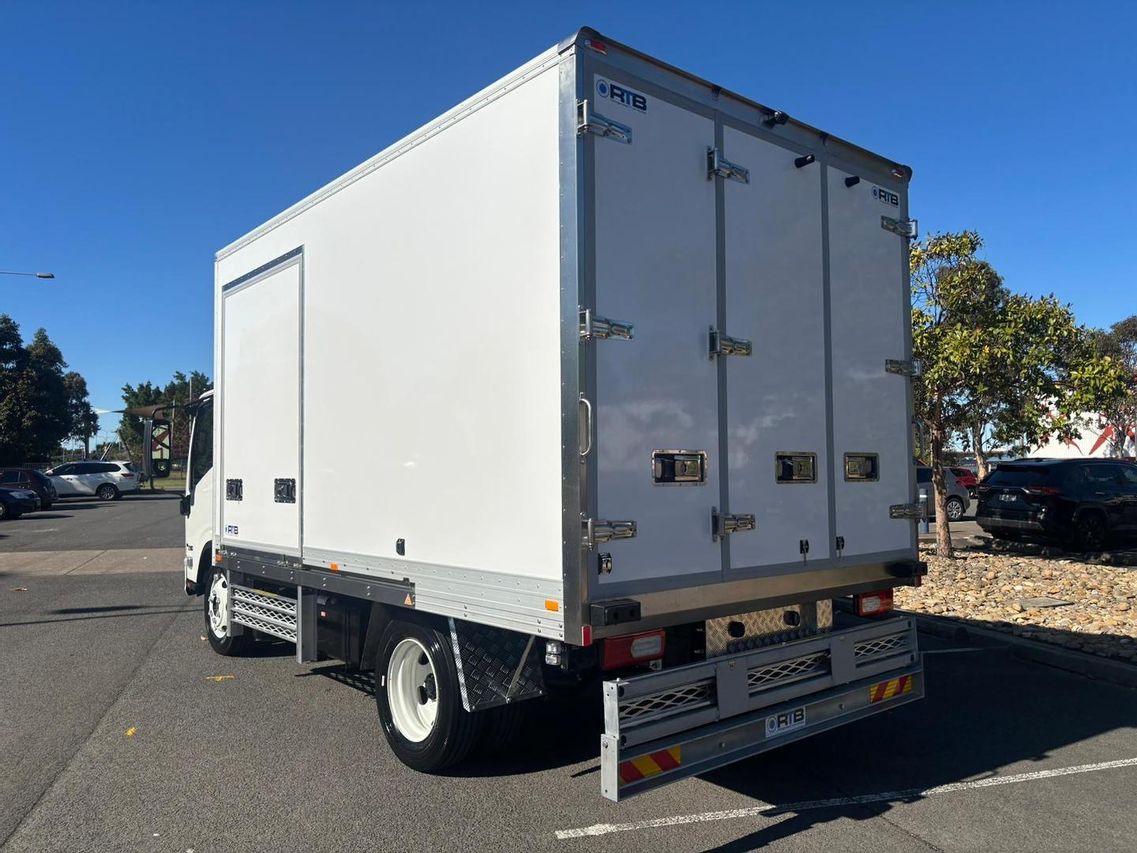

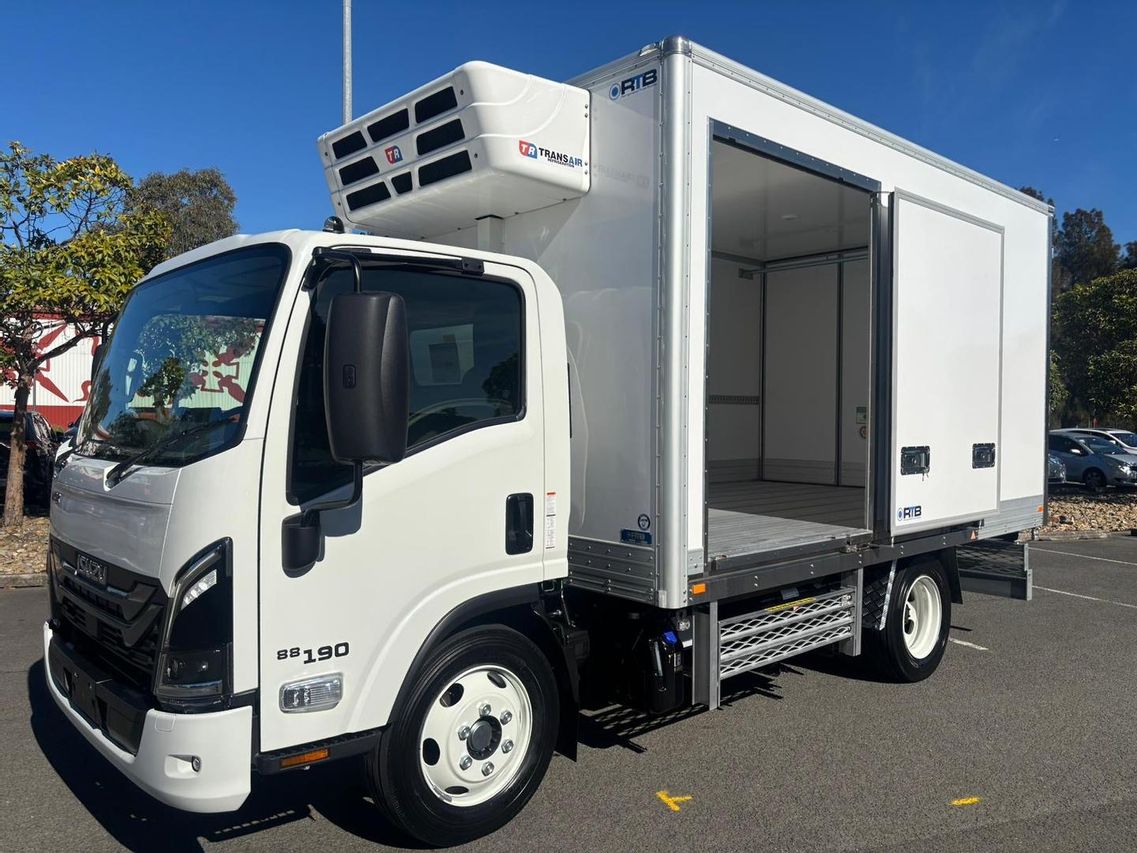

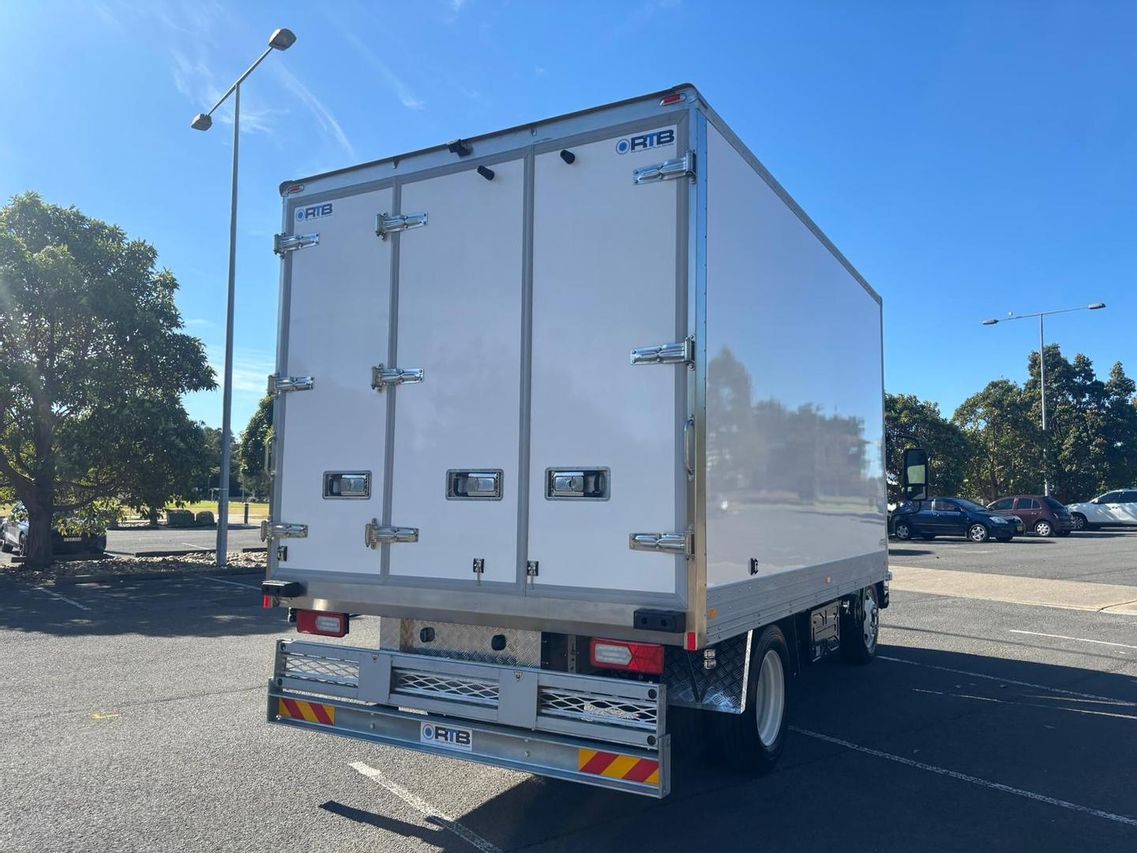

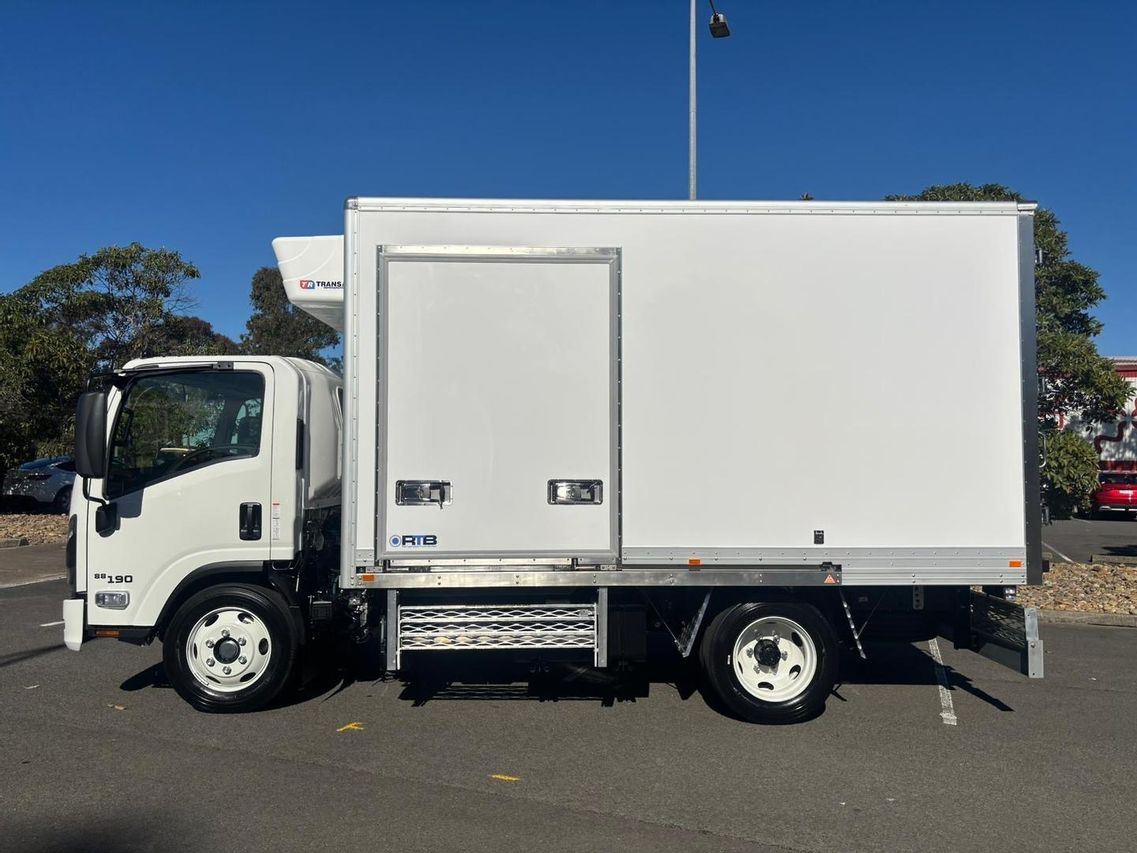

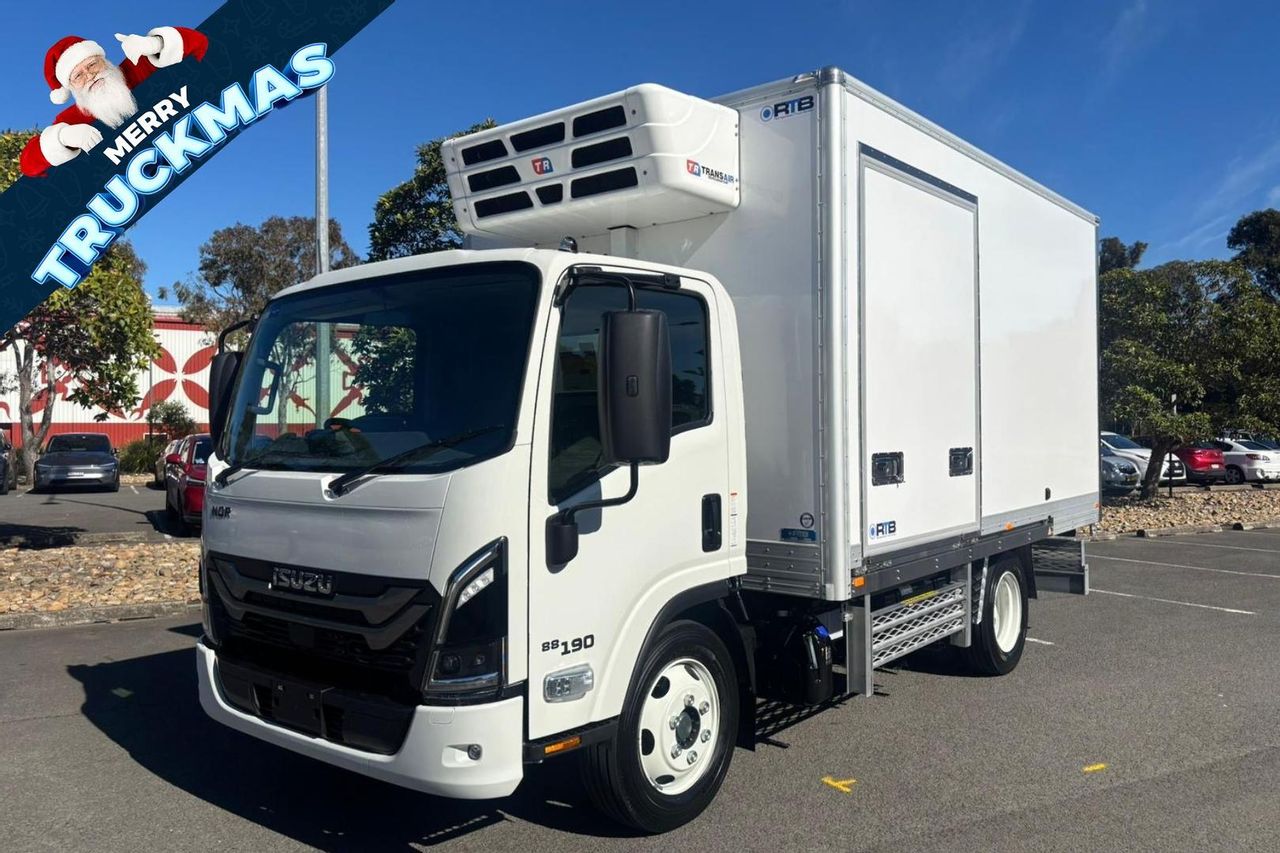

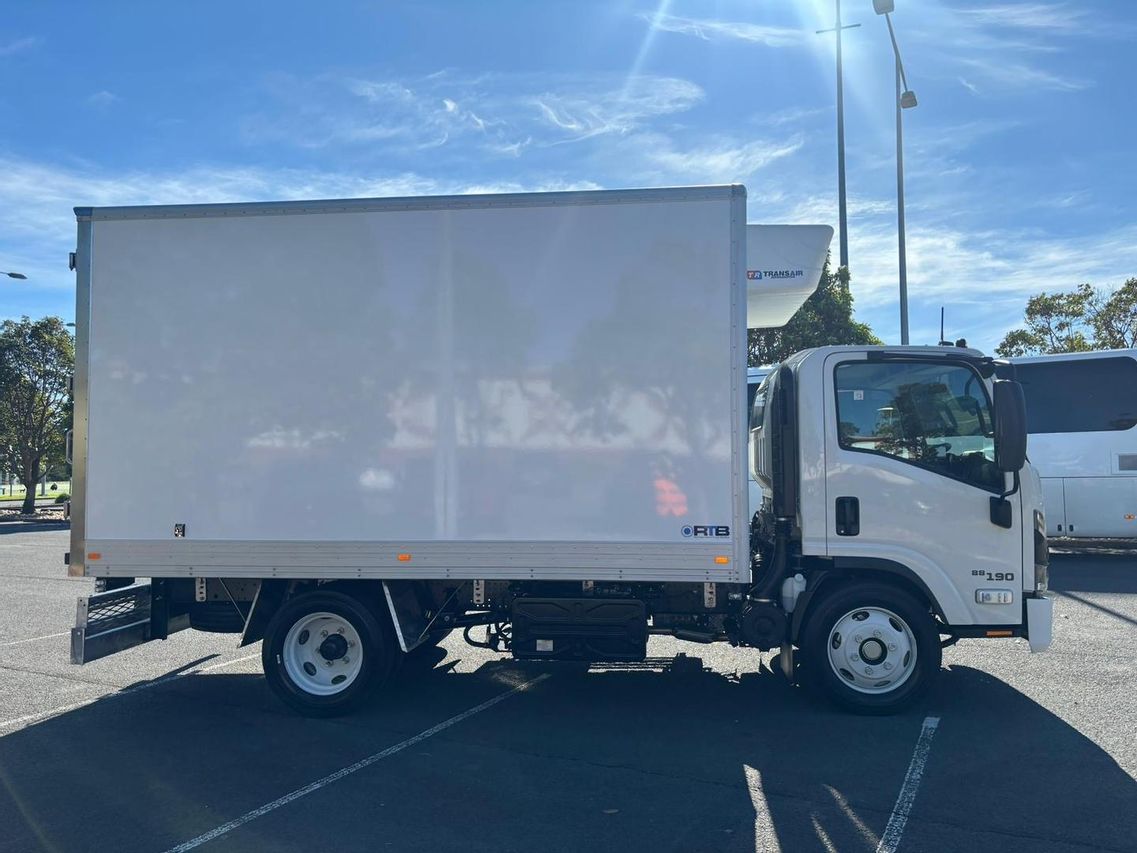

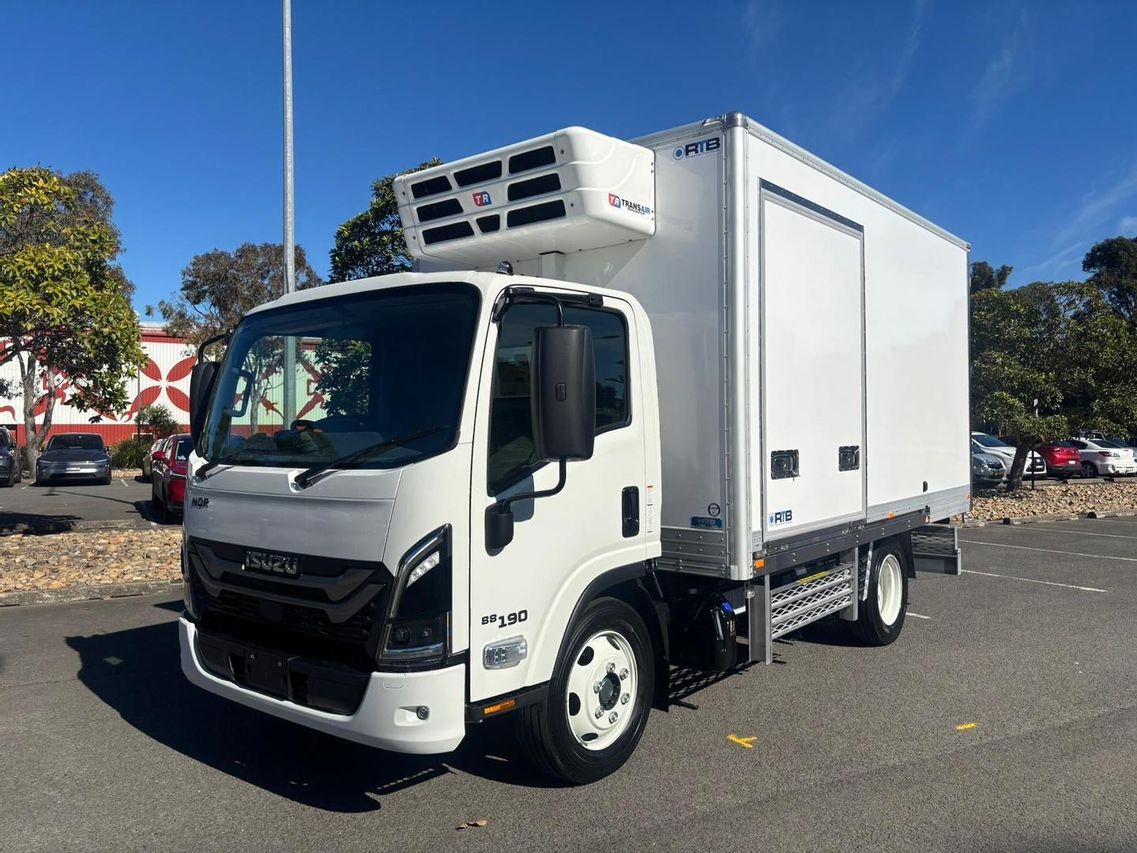

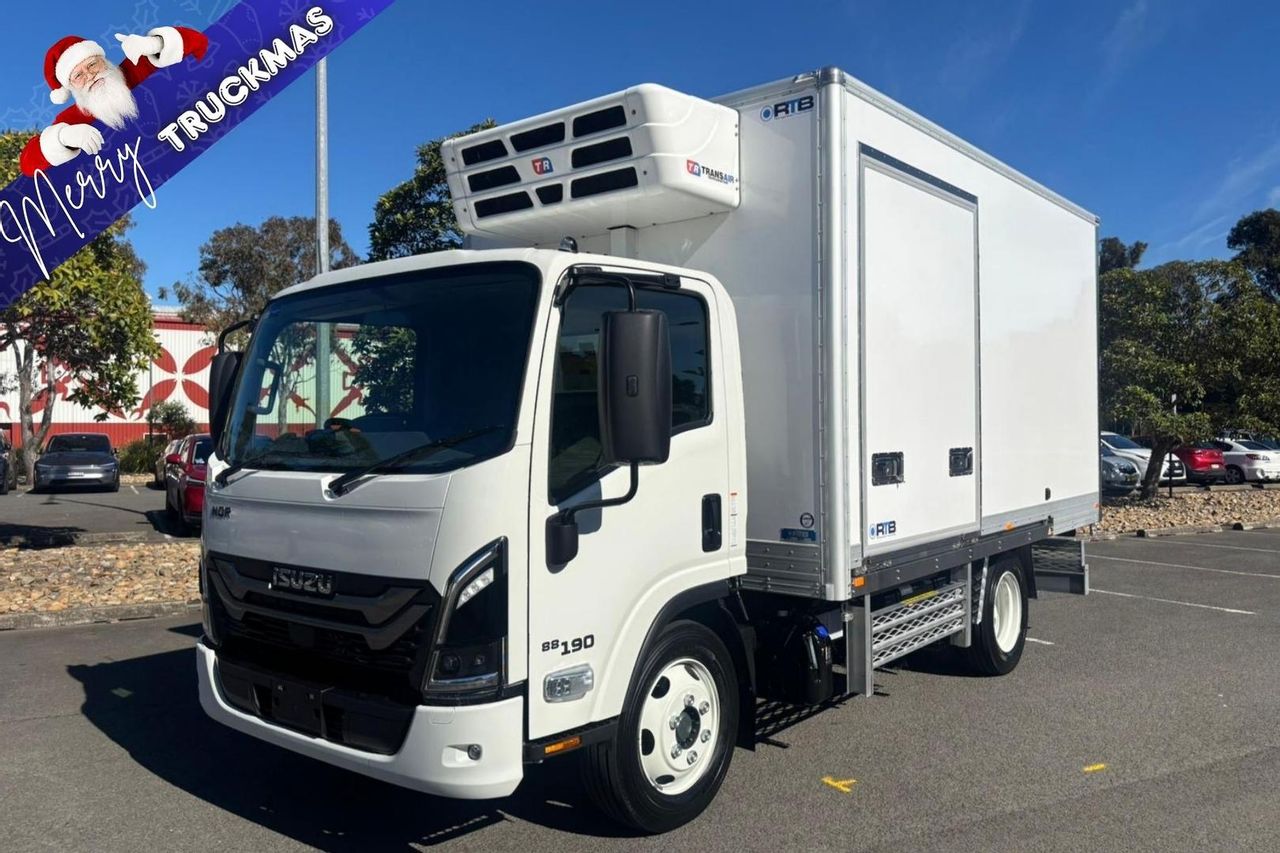

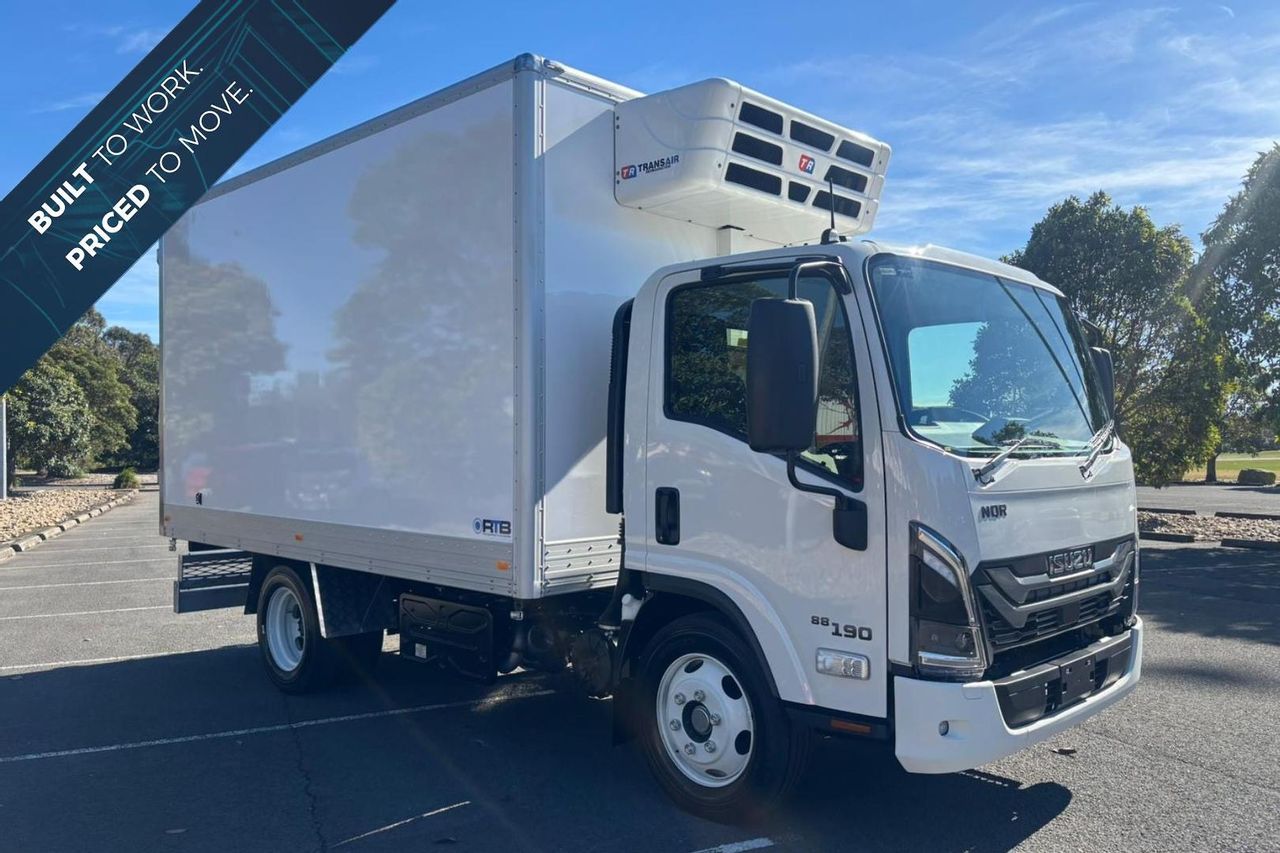

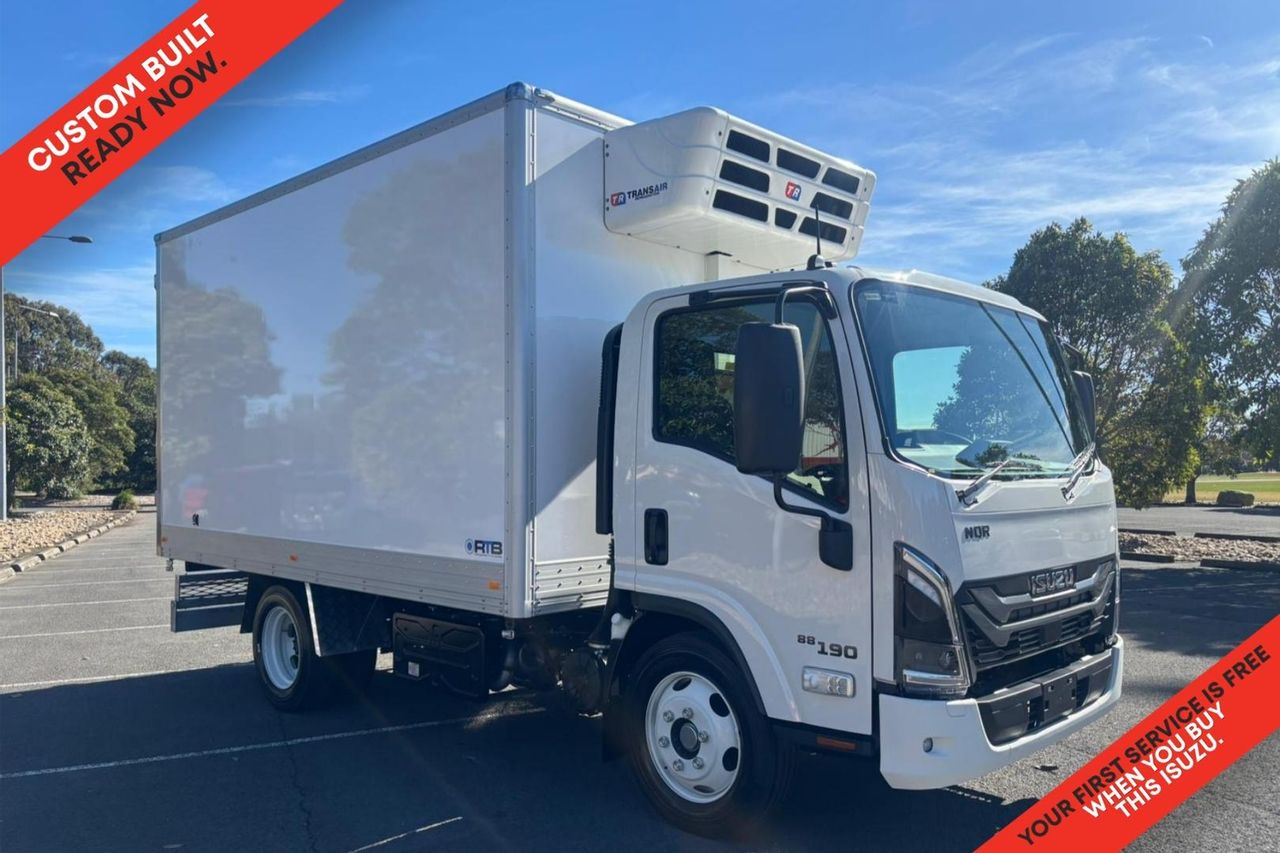

2025 Isuzu N Series NQR 88/80-190 AM D34

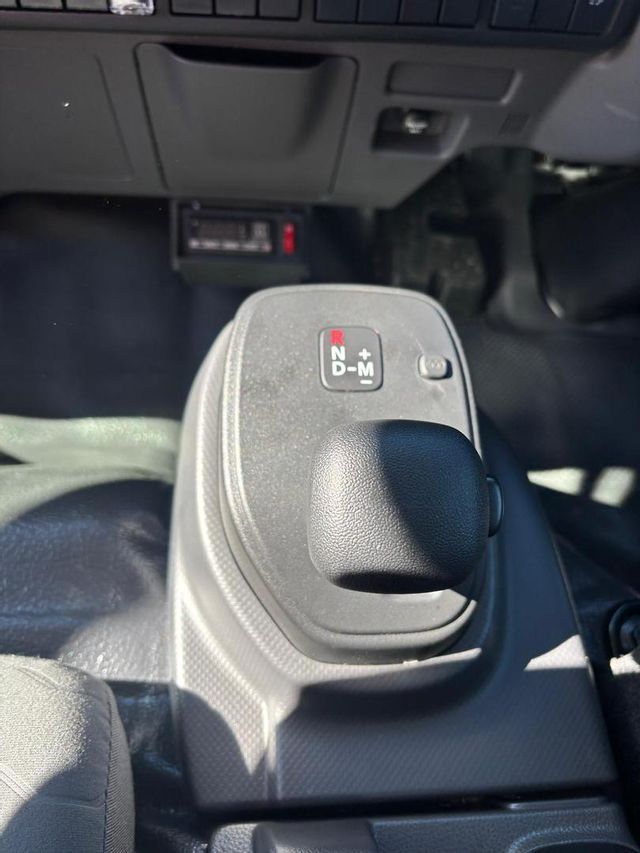

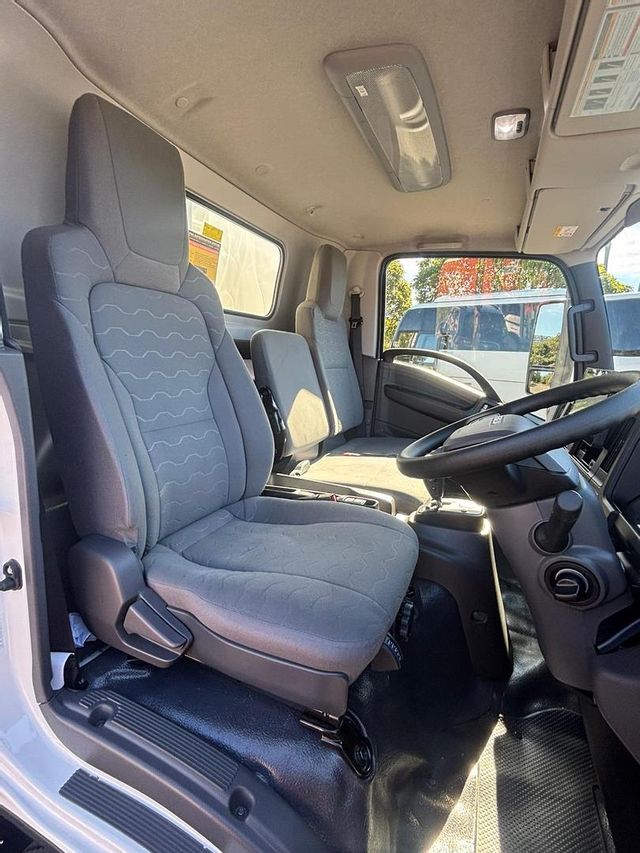

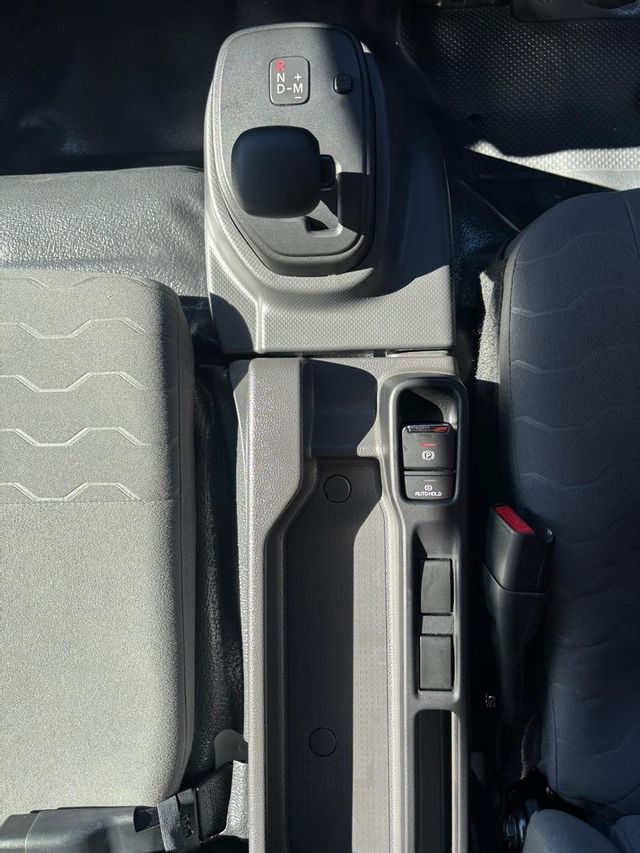

2025 NQR 88/80-190 (MY25) Weight Rating:8,800 / 8,000 kg GVM Engine Power 140 kW @ 2,600 rpm Torque 513 Nm @ 1600 - 2600 rpm Transmission: 6 speed automated manual transmission (AM) Wheelbase 3,365 mm Key Features • ADR 80/04 (Euro VI) Compliant • Advanced Emergency Braking (AEB) • Lane Departure Warning (LDW) • Full Speed Adaptive Cruise Control (FACC) (AM models only) • Electronic Stability Control (ESC) • ECE-R29 cab with side anti-intrusion beams • Driver Suspension Seat • Bi-LED Headlamps with Daytime Running Lamp Engine Description Isuzu 4HK1-TCS Type 4 Cylinder 16 valve SOHC Power 140 kW (190PS) @ 2,600 rpm Torque 513 Nm @ 1600 - 2600 rpm Displacement 5193 cc Induction Electronically controlled variable nozzle turbocharger with air-to air intercooler Fuel Injection Direct injection high pressure common rail Emission Standard ADR80/04 (Euro VI-C) SCR (Selective Catalytic Reduction) DPD (Diesel Particulate Diffuser) Cooled EGR (Exhaust Gas Recirculation) Auxiliary Brake Vacuum controlled exhaust brake AMT Transmission Description: Isuzu MZZ-6F Type: 6 speed Automated Manual (AM) with both fully automatic and clutchless manual operation modes. Anti-Lock Braking System (ABS) Anti-Skid Regulator (ASR) Attention Alert System (AAS) Auto Lighting System (ALS) Customisable Speed Limiter (CSL) Distance Warning System (DWS) Forward Collision Warning (FCW) Intelligent Speed Limiter (ISL) (AMT Only) Door Mounted Cornering Lamps Driver and Front Left Hand Passenger Seatbelt Pretensioners Driver and Front Passenger Airbags Overhead storage compartments with doors Diesel Tank Type: Frame mounted steel tank Maximum capacity: 140 L Lockable cap AdBlue® Tank Type: Frame mounted high-density polyethylene tank Maximum capacity: 16 L Electrical Systems Type 24 volt Alternator 90 amp Battery 2x 80D26L 600 (CCA) batteries connected in series Chassis Frame Type Cold rivetted ladder frame Steel Dimensions Side rail (mm): 230 x 70 x 5.0 Rear frame width (mm): 850 Axles Front Description: Isuzu F031 Type: Reverse Elliot I-beam Capacity: 3,100 kg Rear Description: Isuzu R066 Type: Full floating banjo with four differential pinions Capacity: 6,600 kg Ratio: 4.556 (AM), Wheels & Tyres Front Wheels: 19.5 x 6.00 six stud steel (White) Tyres: 225 / 70R19.5 Michelin XZE Tubeless Steer axle tyre rating: 3,300 kg Rear Wheels: 19.5 x 6.00 six stud steel (White) Tyres: 225 / 70R19.5 Michelin XZE Tubeless Drive axle tyre rating: 6,200kg Spare 1 frame mounted spare wheel and tyre assembly Brakes Type Ventilated disc/disc with dual circuit hydraulic control, integrated boost assist Diameter Front 363 mm Diameter Rear 348 mm Park Brake 203 mm diameter drum mounted on rear of transmission Cabin Features Engine Access Manual cab tilt to 45° with torsion bar assistance Steps Heavy duty anti slip steps Doors 70° opening internally reinforced front doors Mirrors Heated & powered exterior main mirrors with flat glass and additional independently adjustable convex "spot" mirrors Wipers Two speed windscreen wipers with intermittent wipe mode Exterior Lighting BI-LED Headlamps with LED Daytime Running Lamps (DRL) LED roof mounted clearance lamps Front LED fog lamps LED tail lamps Audible Warning Reverse alarm Security Passive Entry and Start System (PESS) with remote central locking and immobiliser 6 Year Standard Warranty 250,000 km / Unlimited Hours 6 Year Roadside Support 24/7 Unlimited Km Servicing package tailor made to suit customer application available upon request RTB Refrigerated Truck Bodies RTB42W3-SD 6 pallet + jack 20m3 Refrigerated Body 4200mm x 2500 x 2050 Internal Height Heavy duty fully welded extruded T6061-T6 aircraft-grade aluminum alloy floor Triple rear door Sliding side door Stainless steel hardware and door with thermal break frames 1 x row stainless steel cargo track with bar and holder Approximate weight: 1,492kg TransAir TU-07 Off Engine Drive (KAU05) Temperature Rating: -15 deg C RTB Refrigerated Truck Bodies RTB42W3-SD 6 pallet + jack 20m3 Refrigerated Body 4200mm x 2500 x 2050 Internal Height Heavy duty fully welded extruded T6061-T6 aircraft-grade aluminum alloy floor Triple rear door Sliding side door Stainless steel hardware and door with thermal break frames 1 x row stainless steel cargo track with bar and holder Approximate weight: 1,492kg TransAir TU-07 Off Engine Drive (KAU05) Voltage: 24V Temperature Rating: -15 deg C for Chiller applications Fitted to Body NHVR RMS Blue Plate Certification
