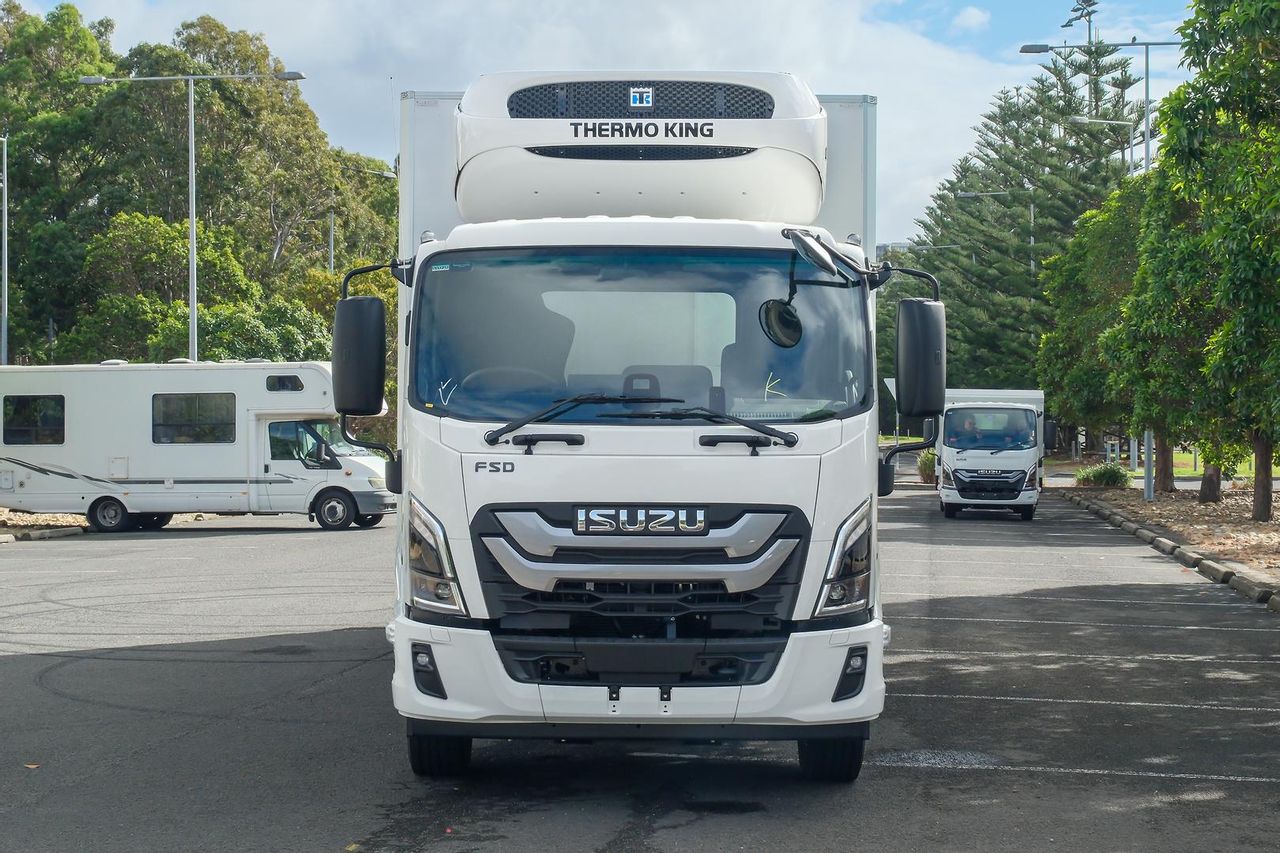

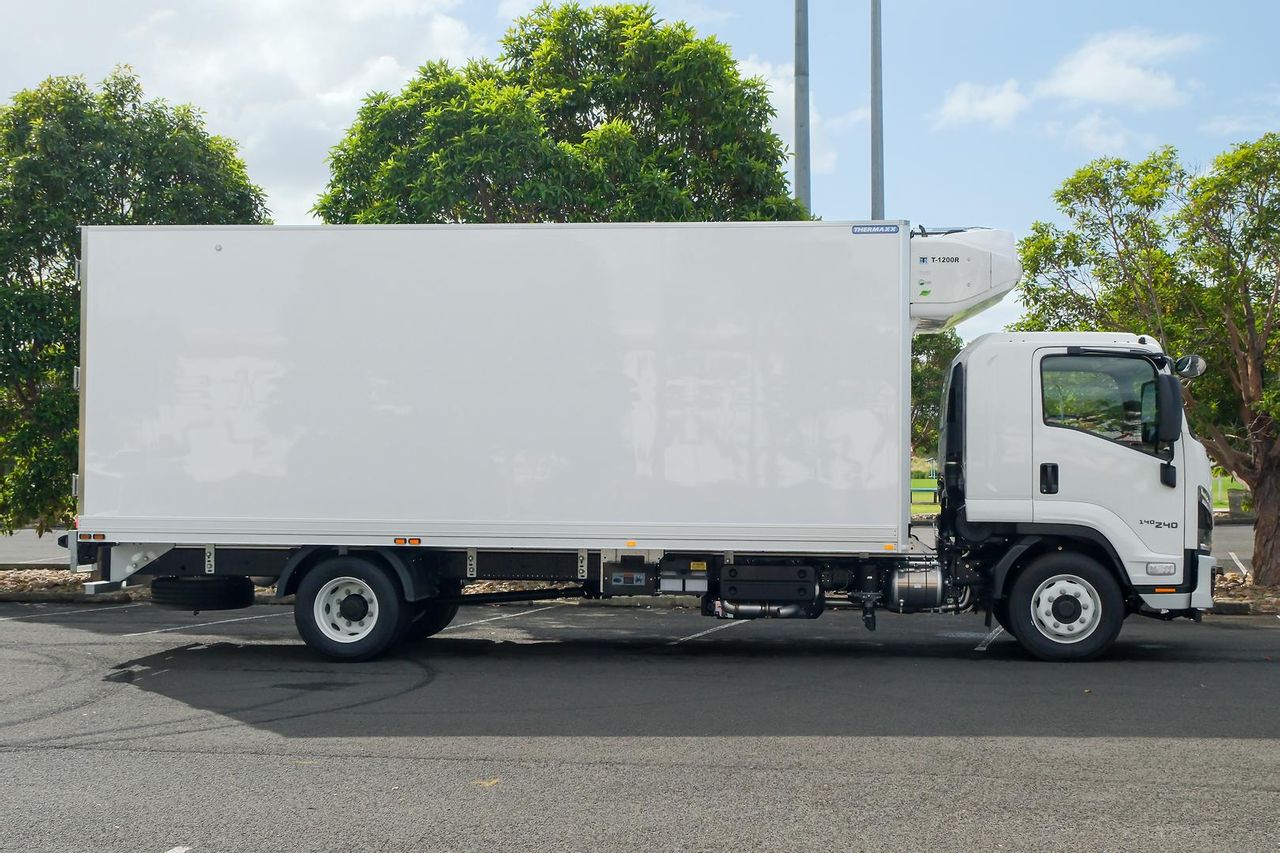

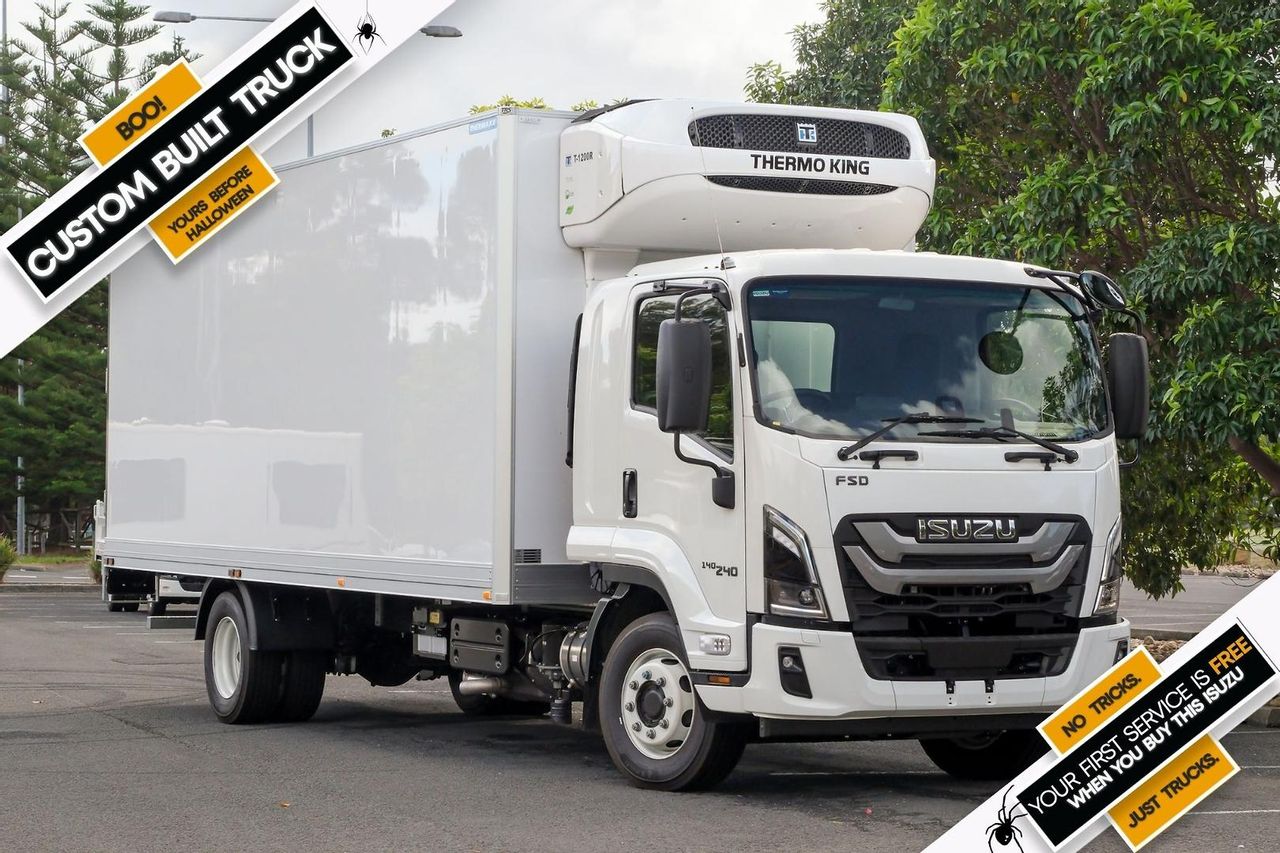

2025 Isuzu F Series FSD 140/120-240 AM R56 TRS 10 Pallet

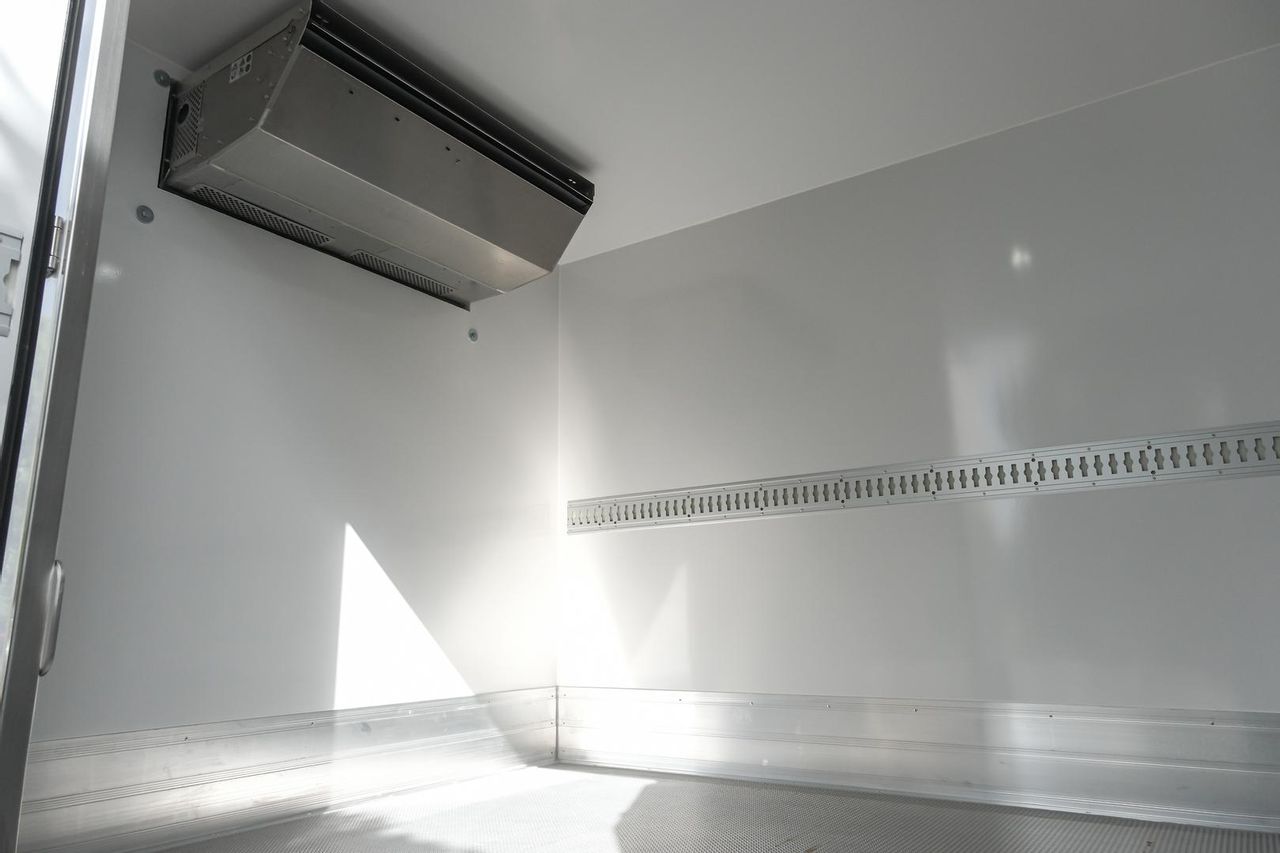

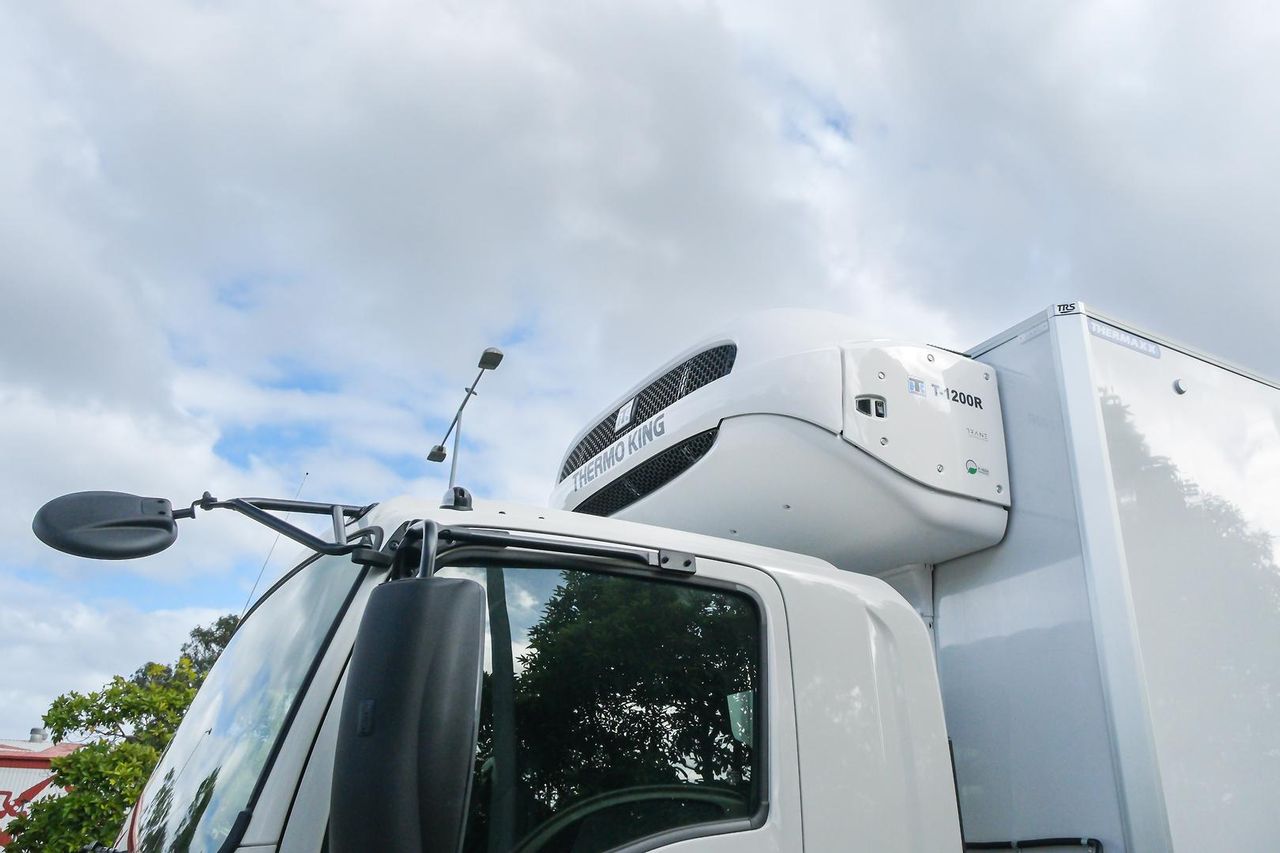

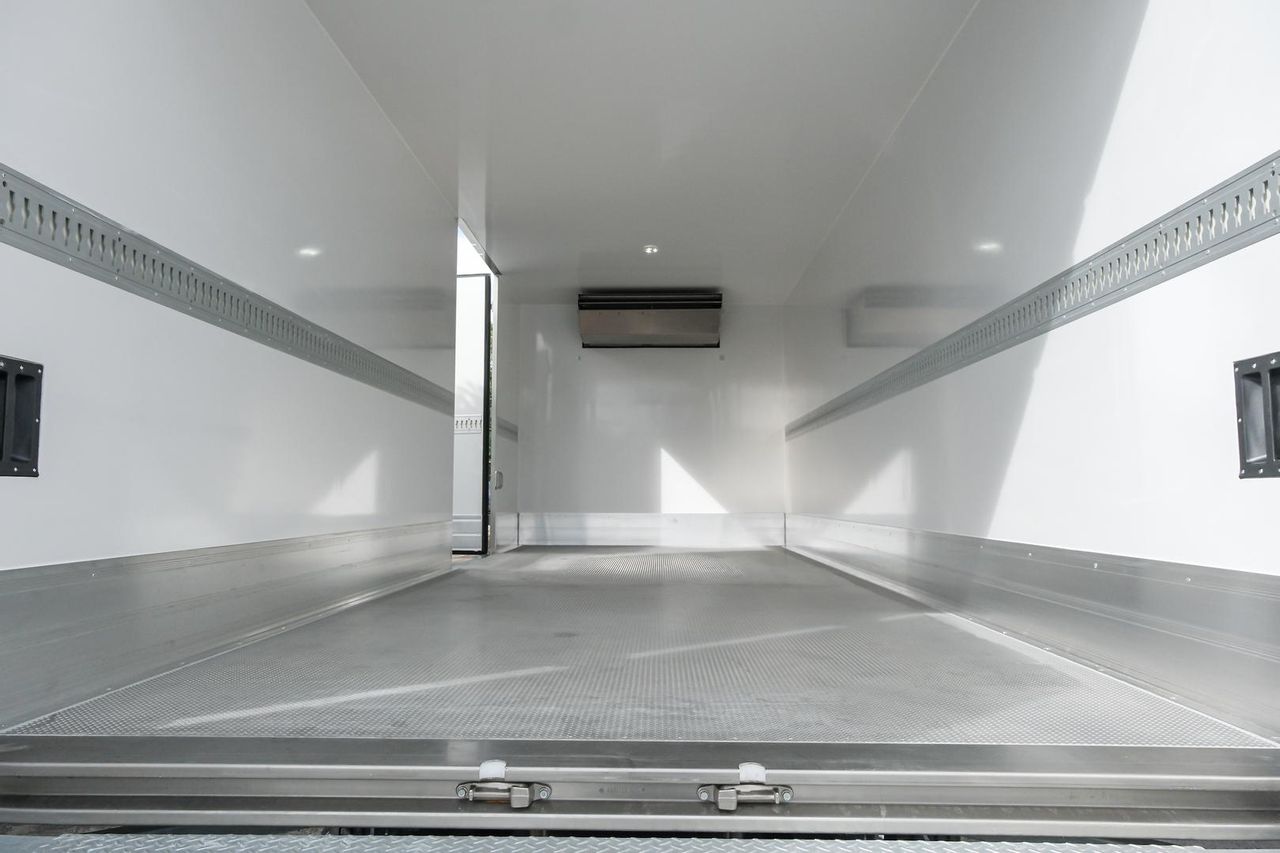

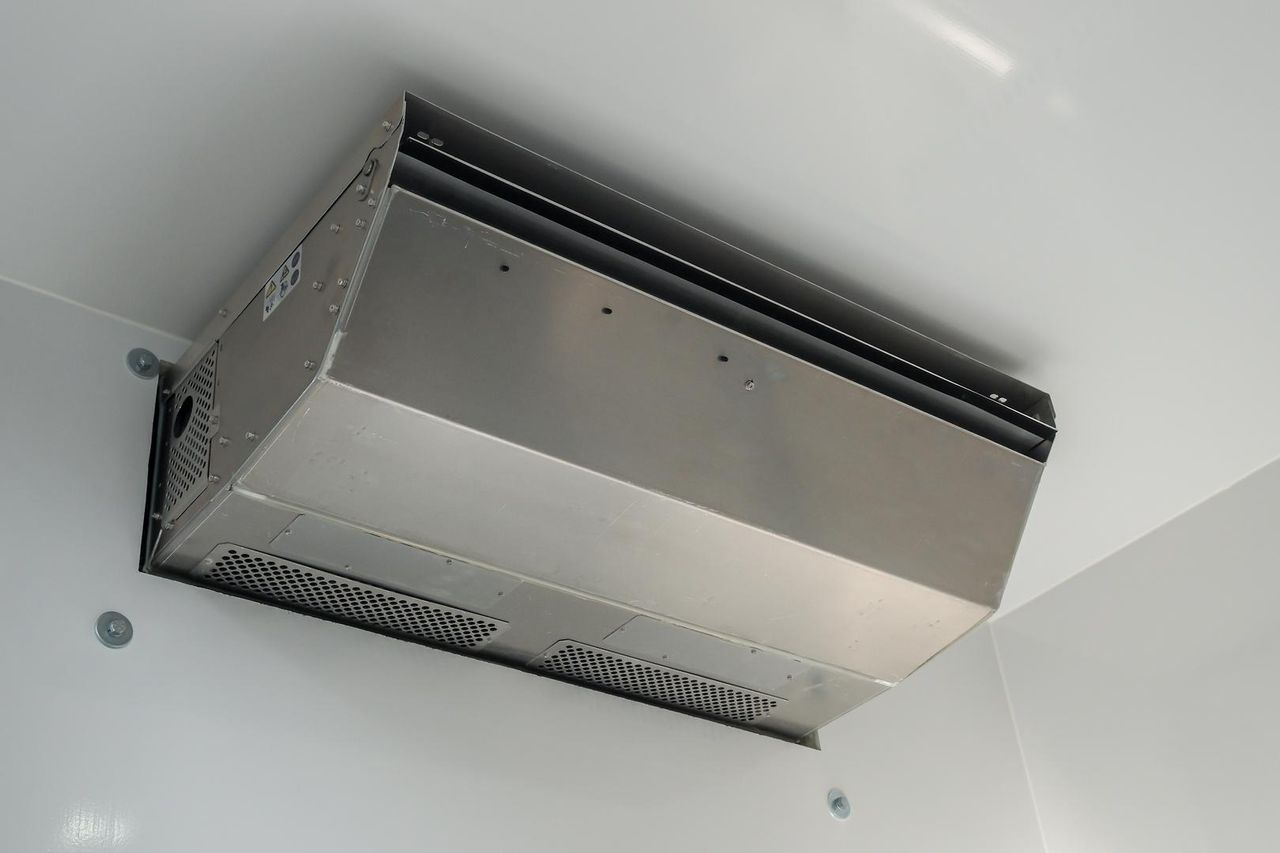

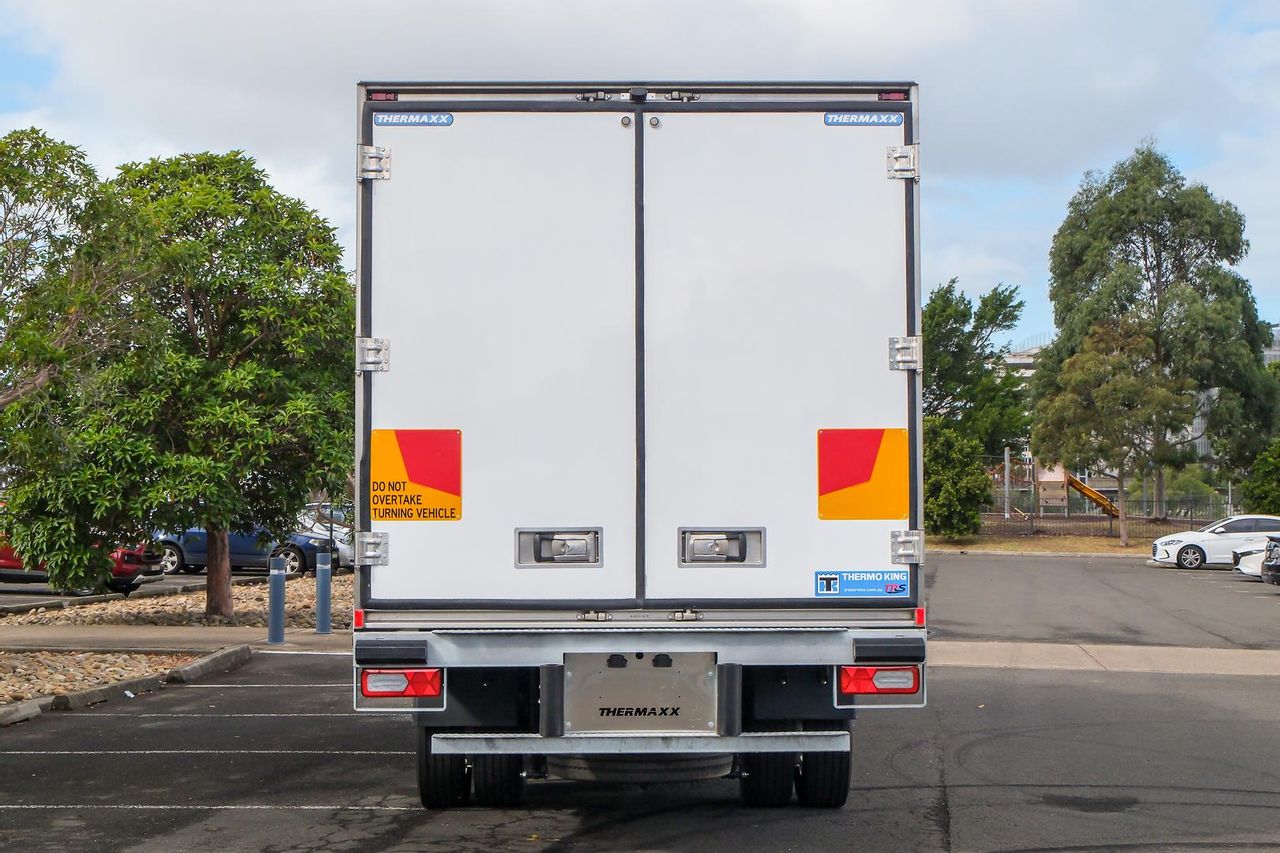

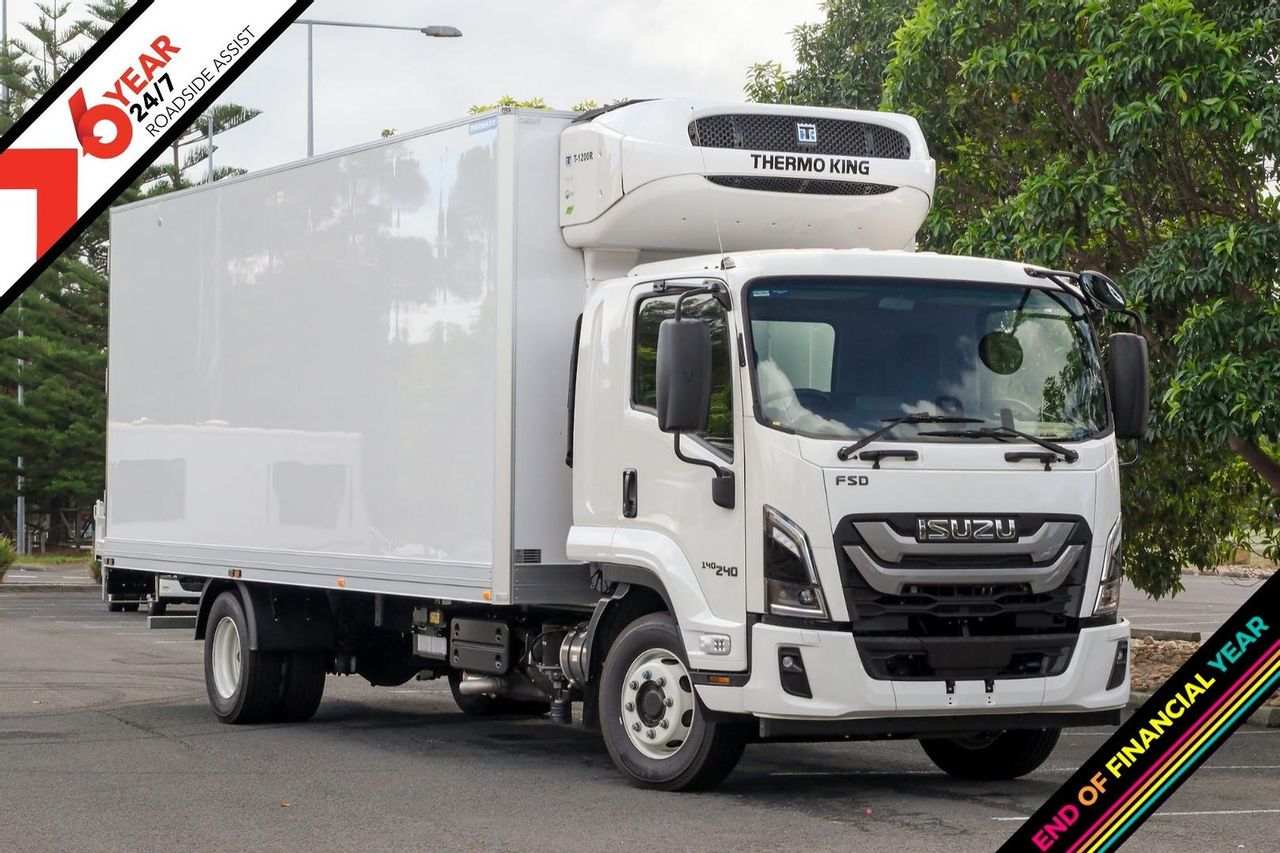

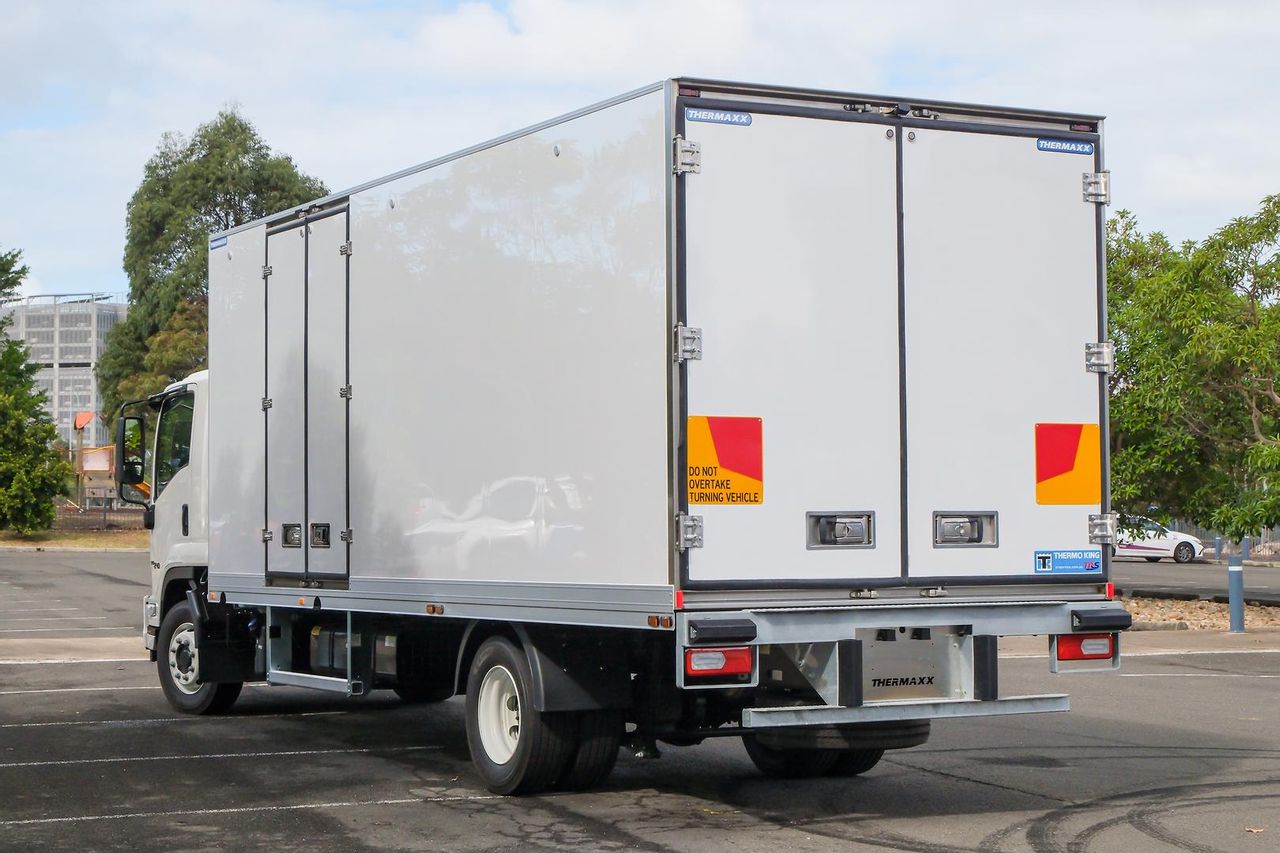

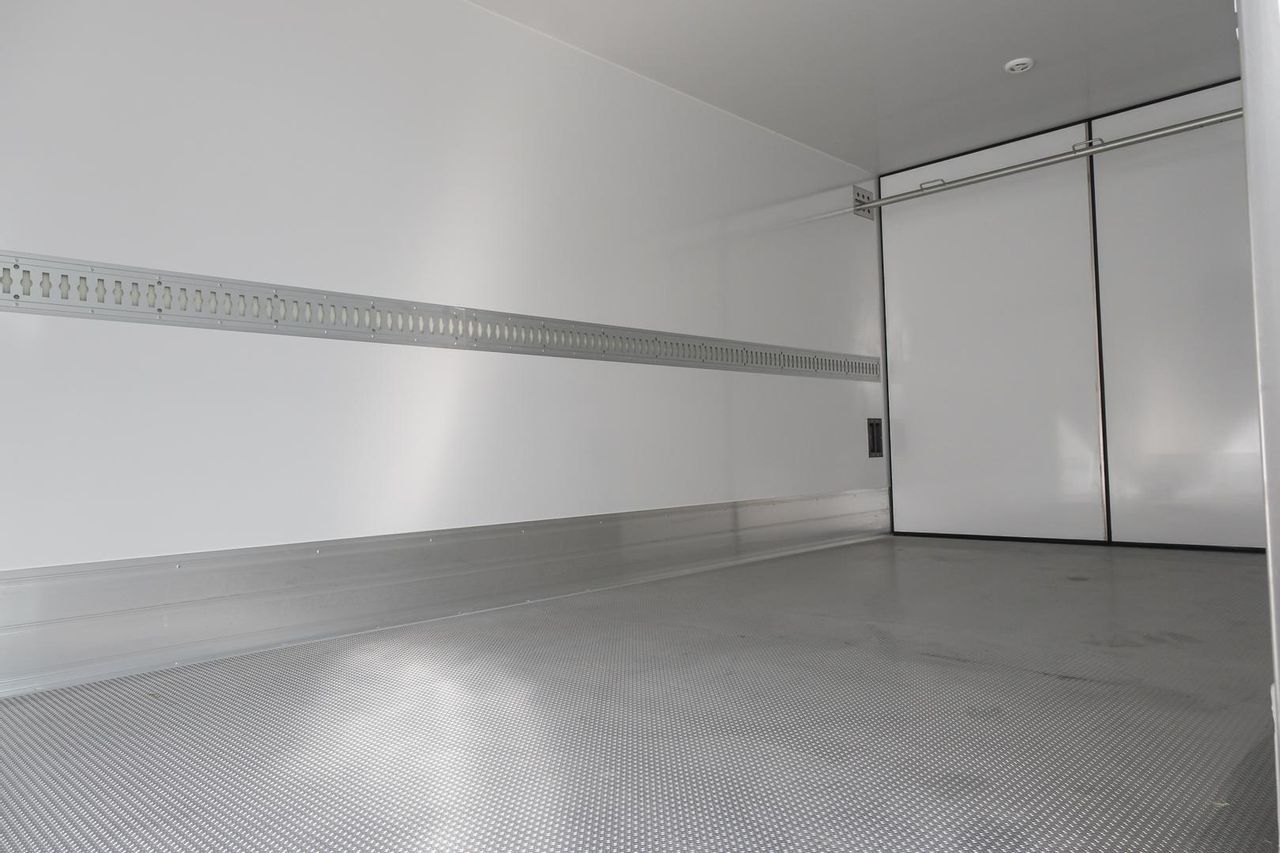

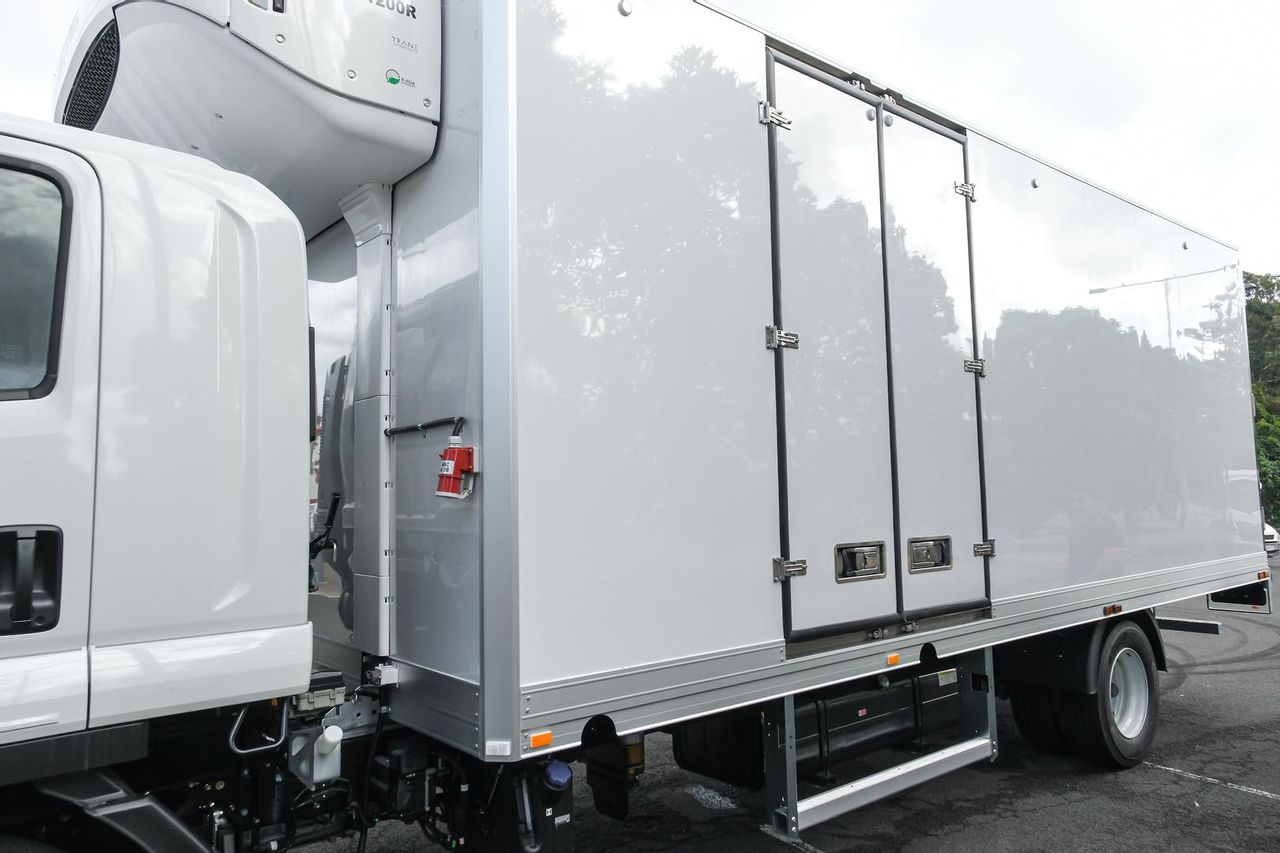

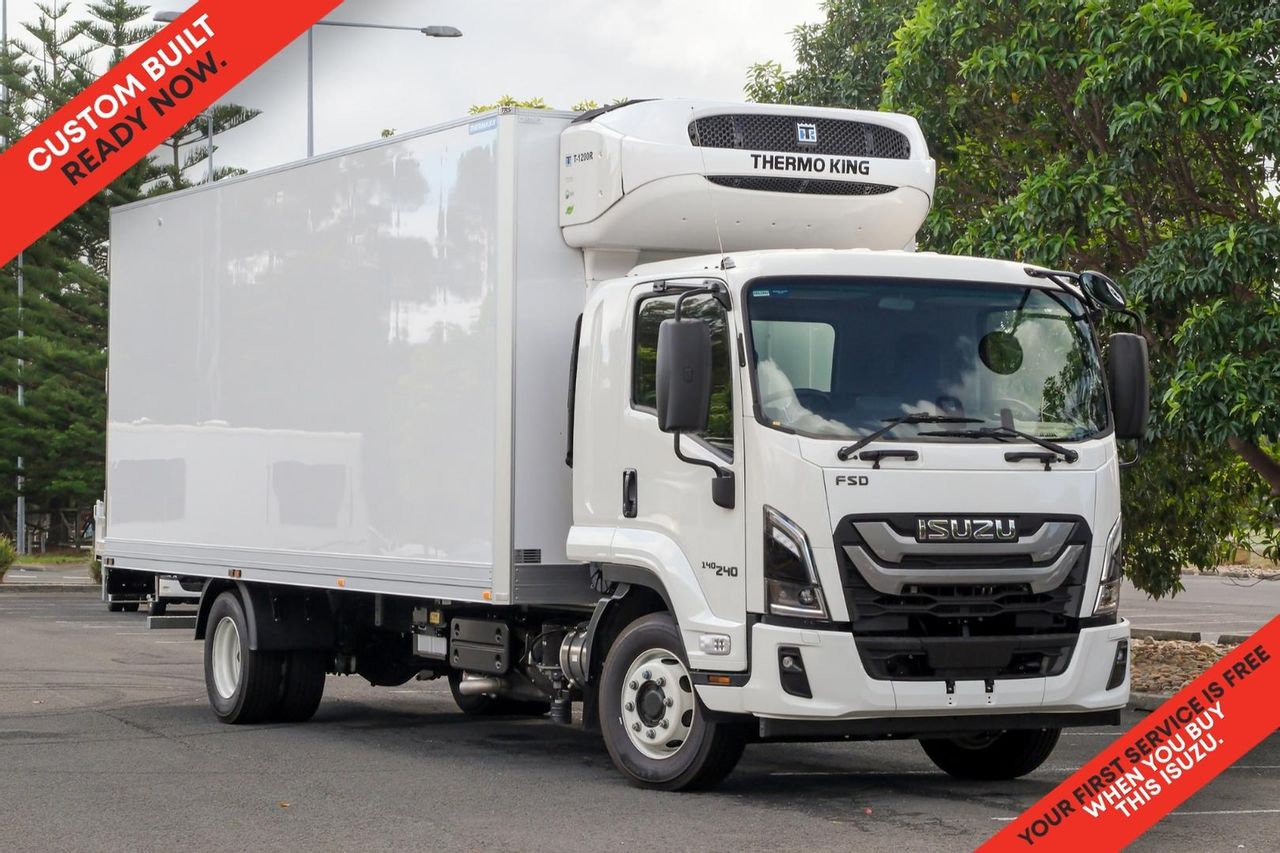

ISUZU FSD 140/120-240 AM R56 Medium Duty Cab Chassis ________________________________________ VEHICLE OVERVIEW Model: FSD 140/120-240 AM R56 GVM: 12,000 kg / 14,000 kg GCM: 18,500 kg Wheelbase: 5,560 mm Engine: Isuzu 4HK1-TCH 4 Cylinder Turbo Diesel Power: 177 kW @ 2,400 rpm Torque: 765 Nm @ 1,600 rpm Transmission: 6-Speed Automated Manual Transmission (AM) ________________________________________ Transport Refrigeration Services Thermaxx Advantage A6500P 10 Pallet Insulated Body SPECIFICATIONS EXTERNAL LENGTH: 6500mm INTERNAL WIDTH: 2410mm INTERNAL HEIGHT: 2200mm PALLET LOADING: 10 Pallet Capacity APPROX WEIGHT: 2405kg* ROOF, FLOOR & FRONT WALL THICKNESS: 100mm REAR DOOR THICKNESS: 80mm SIDE WALL THICKNESS: 40mm SIDE DOOR: Passenger Side Pallet Width Double Door 2200x1400mm (HxW) Double Rear Rear Door FRONT WALL FRAME: Universal to suit Diesel Engine Drive units CARGO TRACK: 1 Recessed Row at 1000mm on Side Walls and 1 Shoring Bar FLOOR: One Piece Hi-Tensile Alloy Rice Grain Floor INTERNAL LIGHTS: 2 LED Sensor Lights REFRIGERATION RECOMMENDATION: Chiller/Freezer - Thermo King T-1000R STANDARD INCLSUIONS High Density Polyurethane Insulation - European Design - European Construction - Low Tare Weight - Higher Legal Payload Hot Dipped Galvanised Sub Frame Stainless Steel Door Frames - Anodised Corner Long Life EPDM Rubber Seals - Internal LED Sensor Light - Rubber Bump Stops - Rear/Side Grab Handles Recessed Load Restraint Track Moulded Plastic Mud Guards Alloy Kick Plates Standard Rear Galvanised Mid Size Heavy Duty Crash Bar Thermo King Diesel/Electric T-1000R Truck Refrigeration Unit STANDARD FEATURES APPLICATION TYPE: Freezer UNIT WEIGHT: 514kg STAND-BY: Included STAND-BY PLUG: Located on the passenger side front wall VOLTAGE: 3 Phase / 415 Volts COMPRESSOR: X426 C5 Reciprocating Compressor ENGINE: Low Emission, Liquid Cooled TK 376 Warranty :Thermo King T-1000 Units come with a 24 Month Warranty All New Thermaxx Advantage Equipment is warranted for 5 Years in the case of faulty materials and workmanship. Includes the Aluminium Rice Grain Floor. ________________________________________ FEATURES ADR 80/04 (pPNLT) Compliant Adaptive Driving Beam (ADB) Bi-LED Headlamps with Daytime Running Lamps (DRL) ECE-R29 Cab with Side Anti-Intrusion Beams ISRI 6860/875 NTS2 Air Suspension Driver's Seat Hill Start Assist (HSA) ________________________________________ CHASSIS Front Axle Capacity: 5,000 kg Rear Axle Capacity: 9,000 kg Fuel Tank: 200 L Steel AdBlue Tank: 65 L High-Density Polyethylene Front Axle Tyres: 265/70R19.5 140/138M Michelin X Multi Z Rear Axle Tyres: 265/70R19.5 140/138M Michelin X Multi Z ________________________________________ CABIN Automatic Climate Control ISRI 6860/875 NTS2 Air Suspension Driver's Seat with Heating and Ventilation 10.1" High Definition Touchscreen Truck Tailored GPS Navigation with Live Traffic and Map Content Updates Android Auto & Apple CarPlay Compatible Wi Fi Connectivity Bi LED Headlamps with Daytime Running Lamps (DRL) LED Front Fog Lamps LED Tail Lamps Reverse Alarm ________________________________________ WARRANTY & SERVICE Chassis Warranty: 6 Years / 300,000 km / Unlimited Hours Service Interval: 25,000 km / 12 Months / 500 Hours (Whichever Occurs First) Roadside Assist: 6 Years / 24/7 Unlimited km ________________________________________ We are one of Sydney’s most convenient and trusted truck dealerships, located just 10 minutes from Sydney Airport and only 400 metres from Wolli Creek train station. We make buying, selling, and servicing your truck simple. If you're looking to sell, we offer free truck valuations with an onsite valuer / buyer providing obligation-free market appraisals—receive a competitive offer based on current market data. As an authorised Isuzu dealer, we’ve partnered with Qantas Business Rewards so your business can earn Qantas Points when purchasing Isuzu truck parts and accessories. We also offer Isuzu Service Agreements at the time of your truck purchase, helping you turn servicing into predictable, manageable costs. Plus, when you purchase a new Isuzu truck, your first service is free. To keep your business moving, our workshop provides after-hours servicing until 7pm, giving you more uptime and less downtime. IS THIS NOT THE PERFECT TRUCK FOR YOU? We keep a range of trucks in stock ready to work, available now for delivery. Send an enquiry so we can find what you need. NEED SOMETHING CUSTOM? We have trucks ready to build - so we can craft a truck exactly to what your business requires. Send an enquiry so we can build what you need. We are Isuzu experts and are confident we can find the right truck for you and your business.
