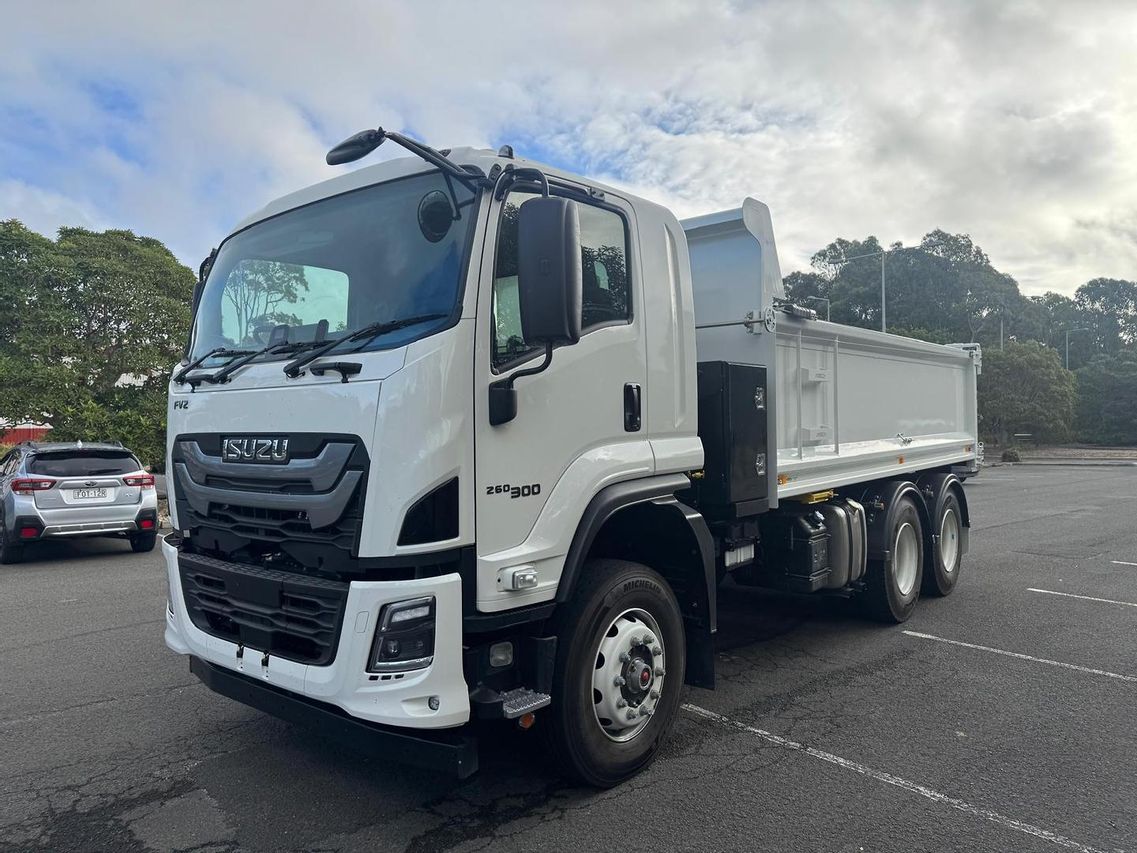

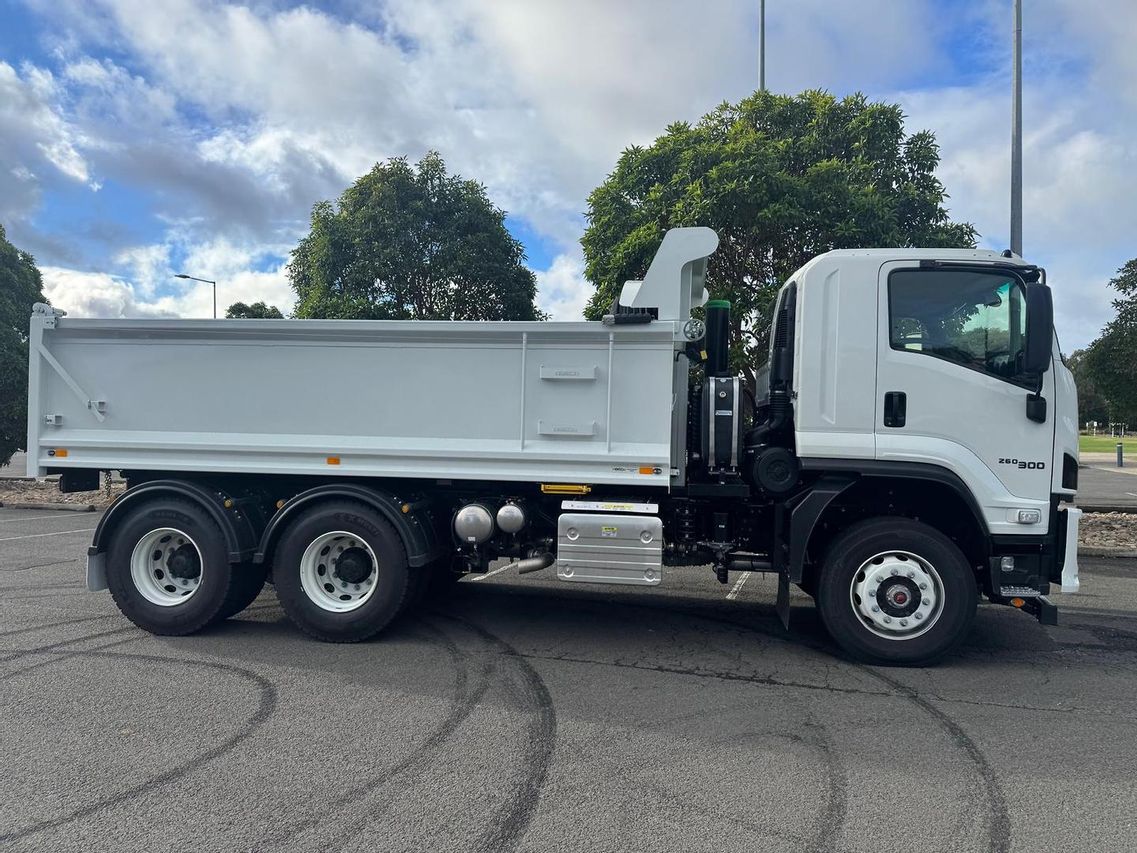

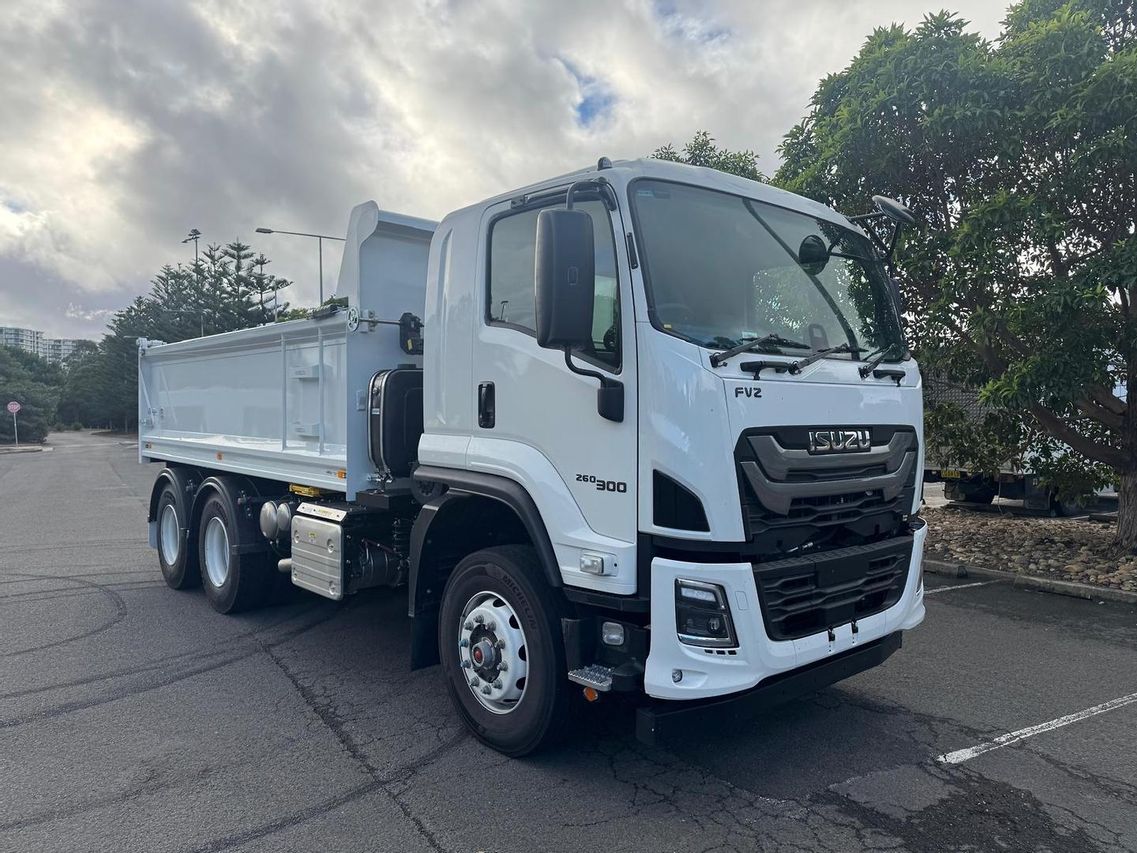

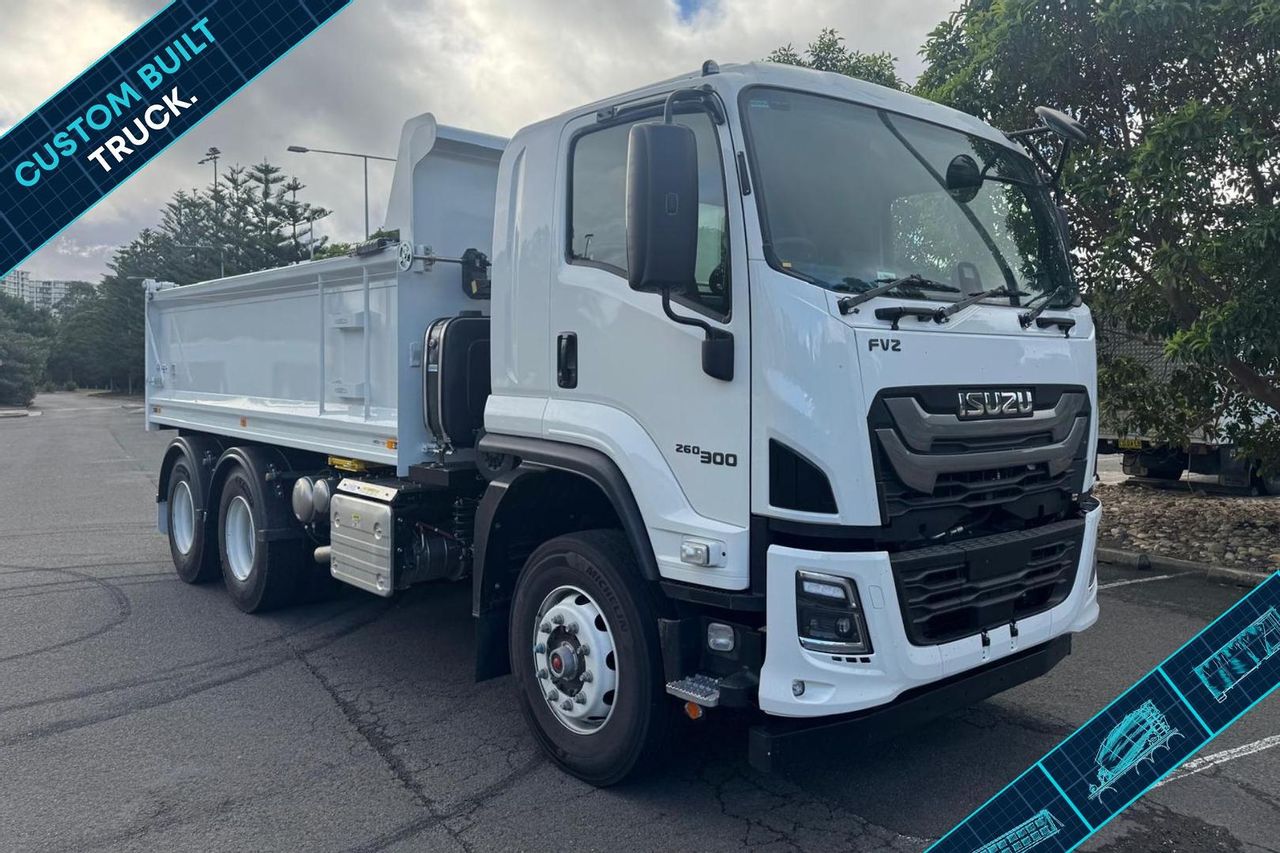

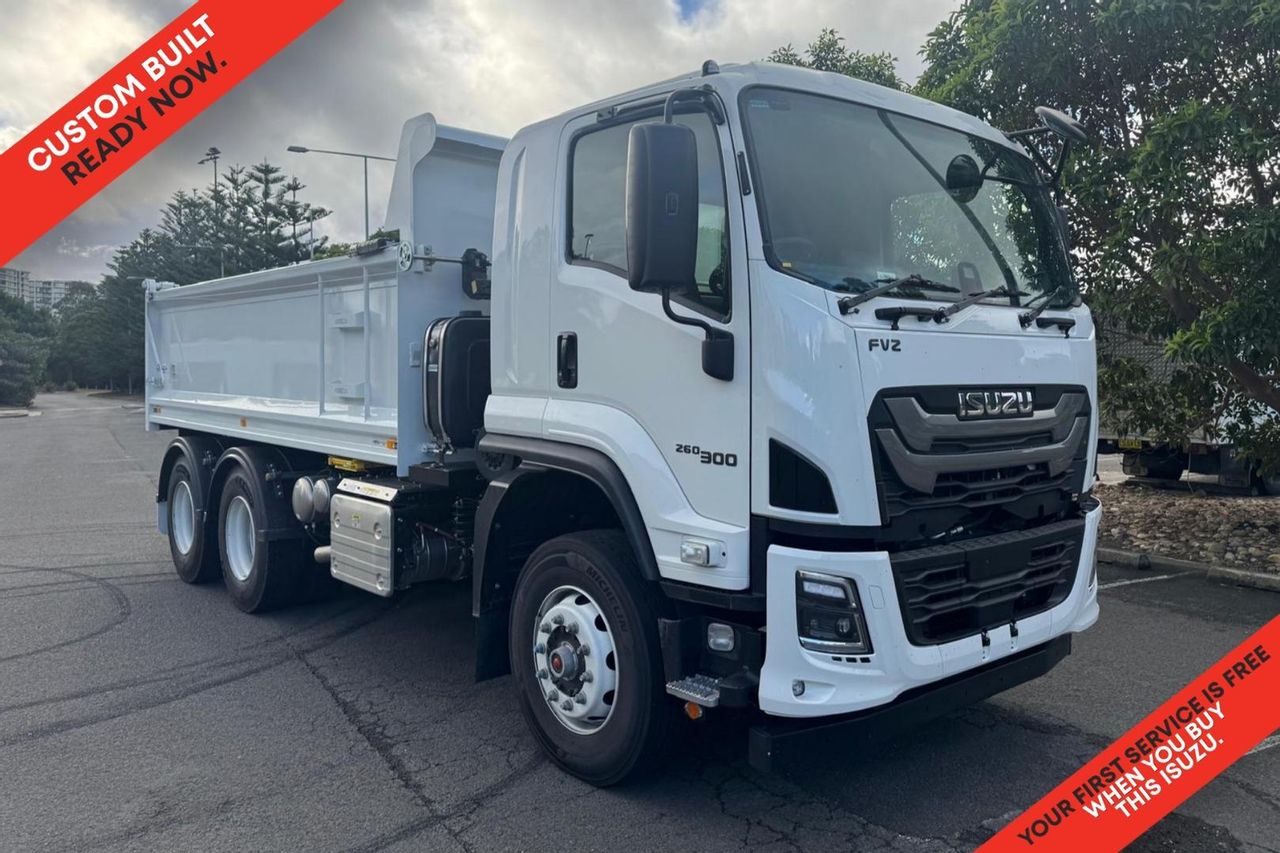

2025 Isuzu F Series FVZ 260-300 AT R46

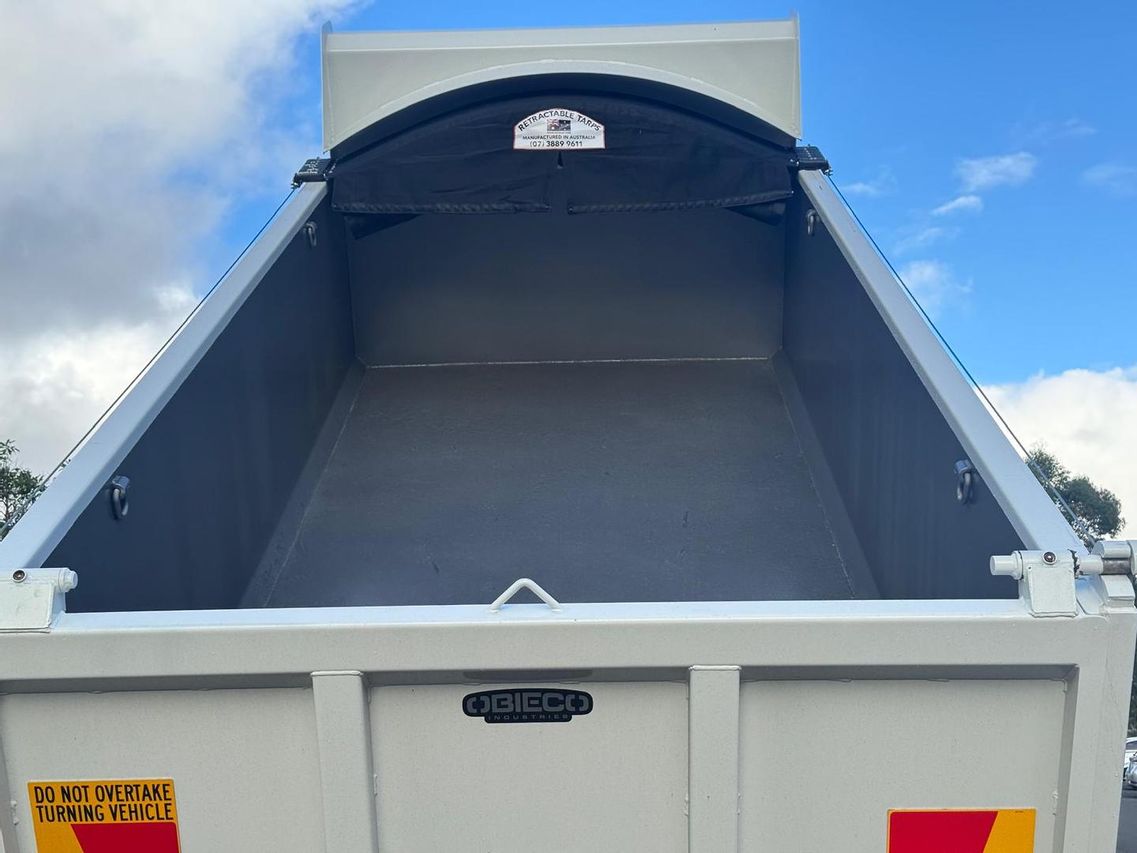

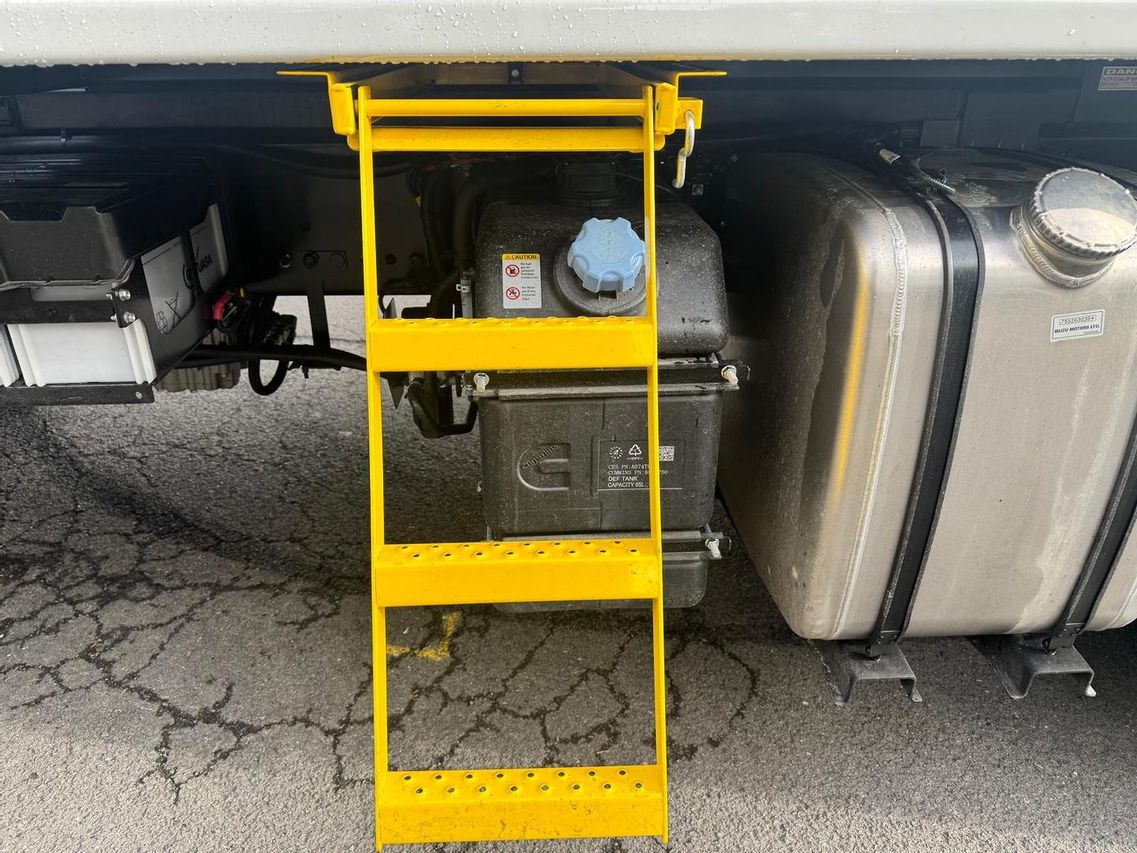

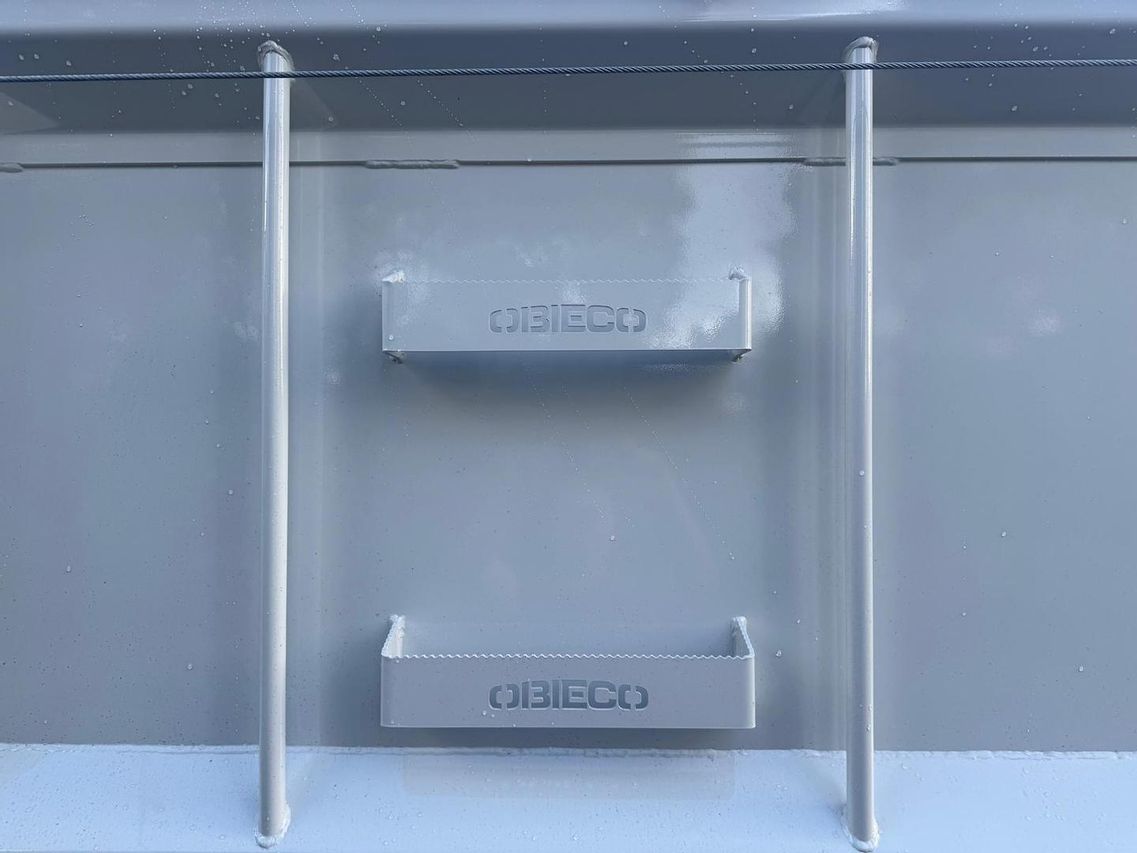

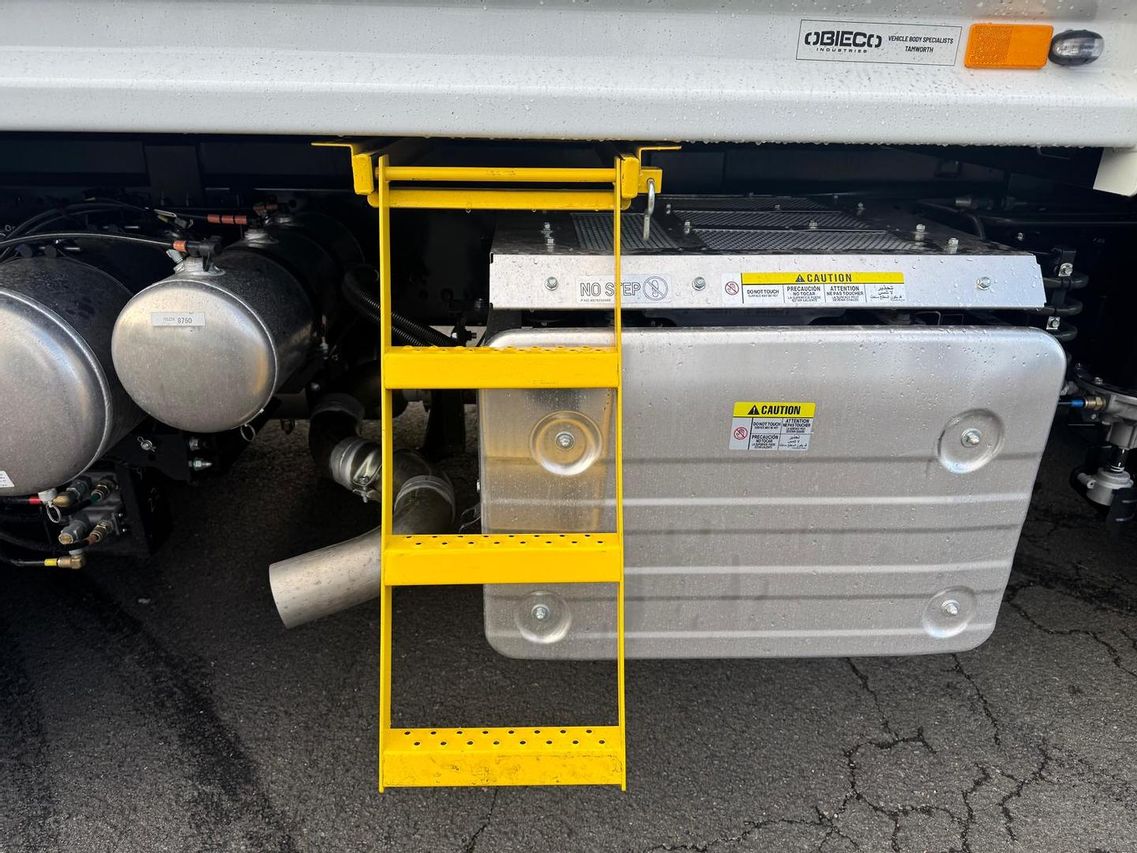

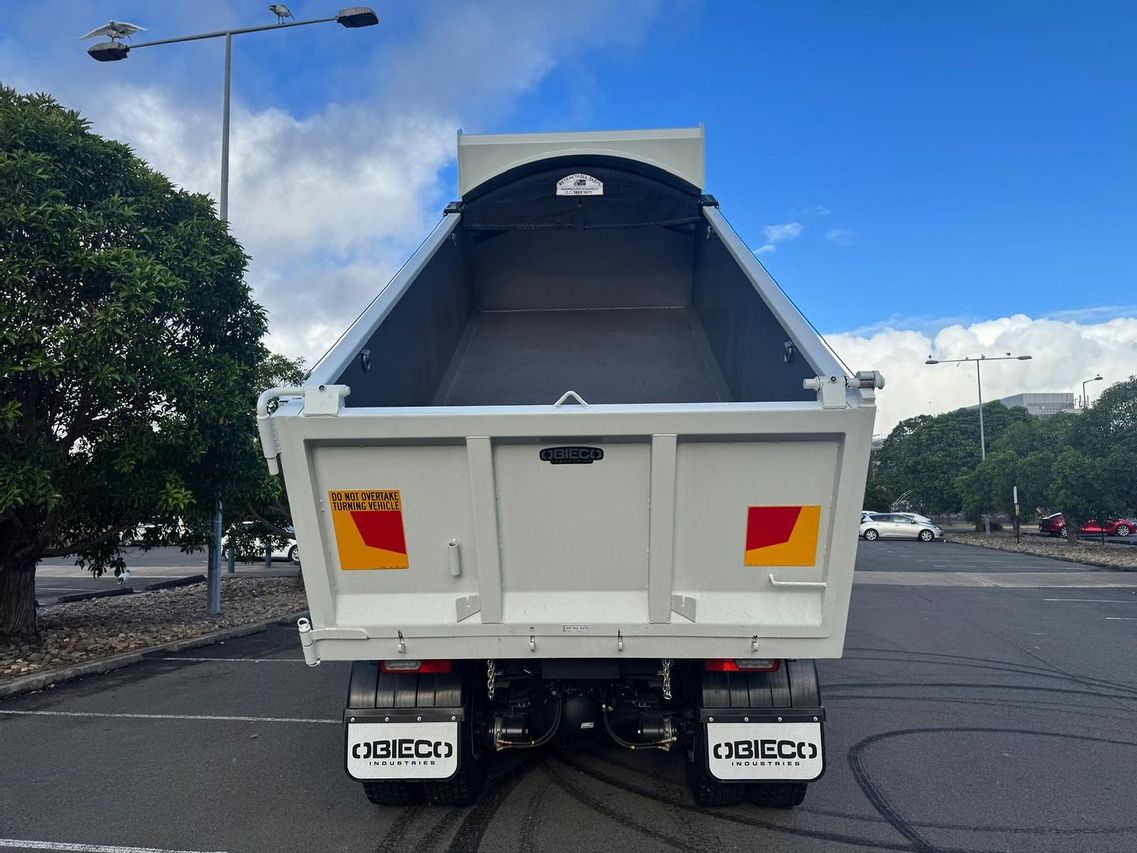

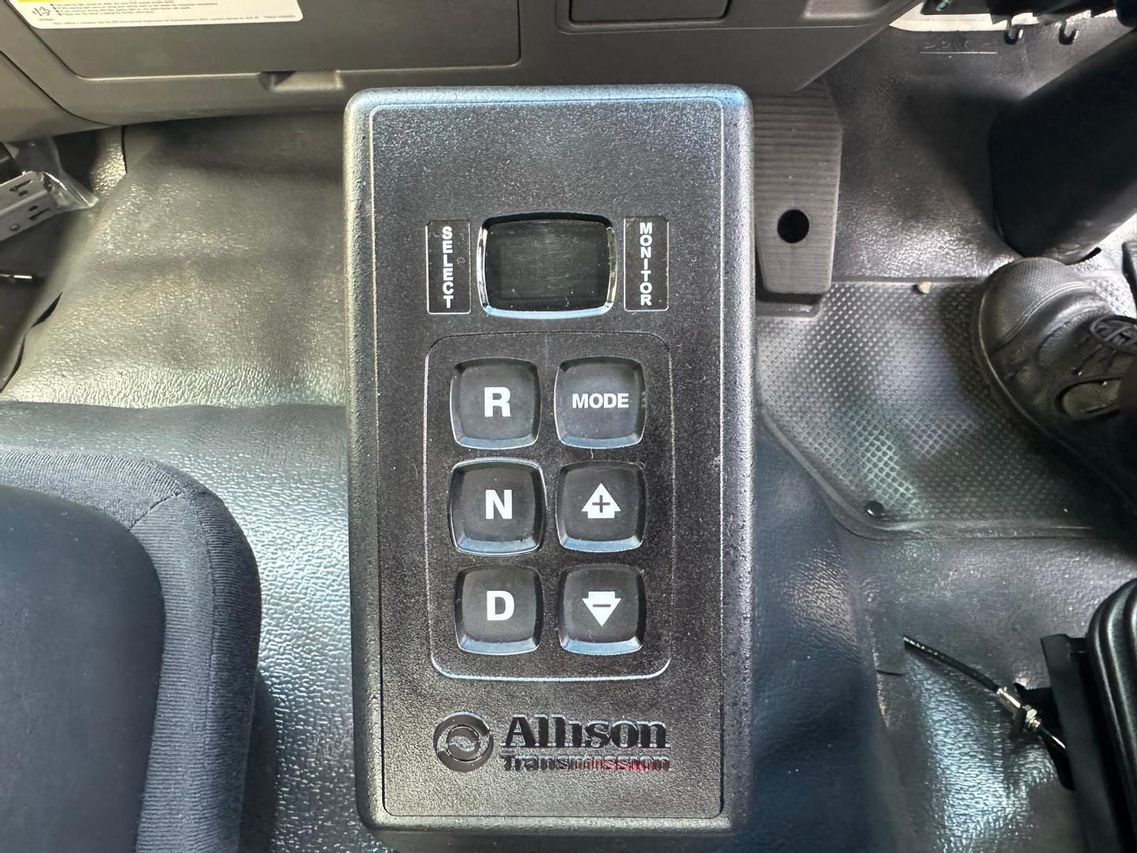

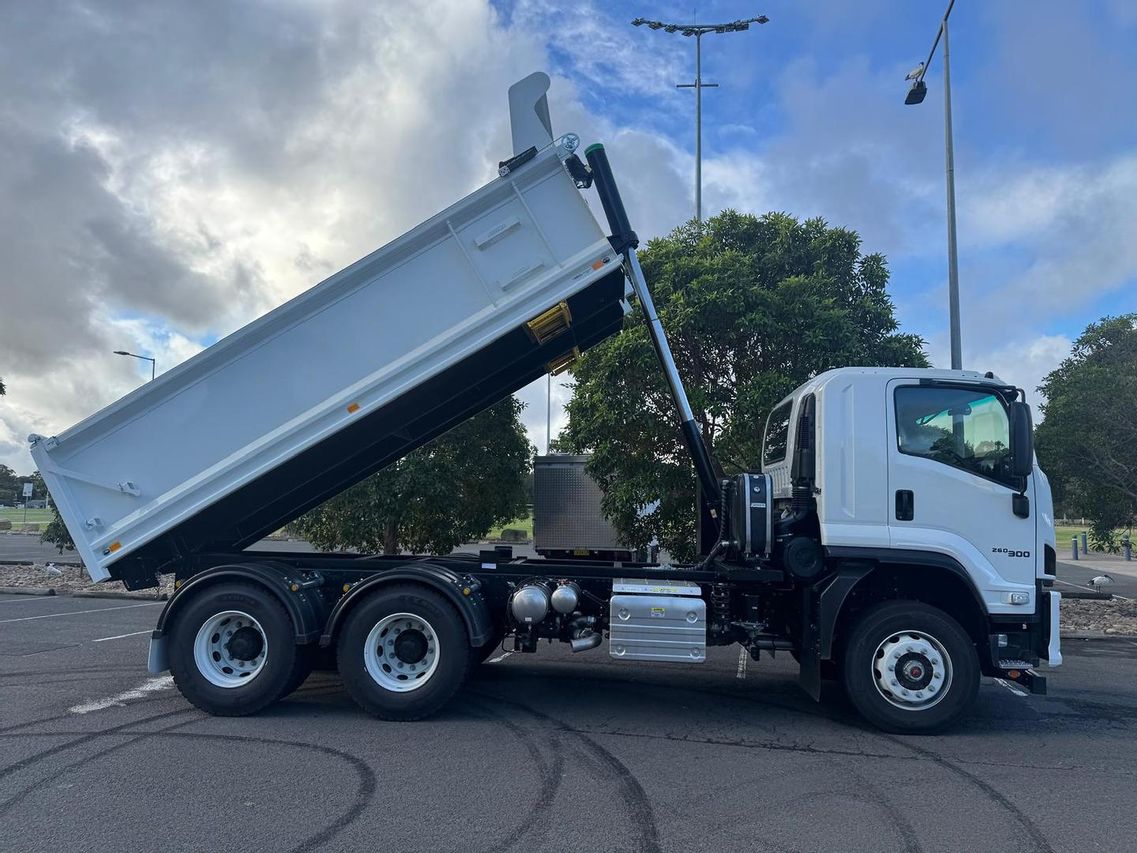

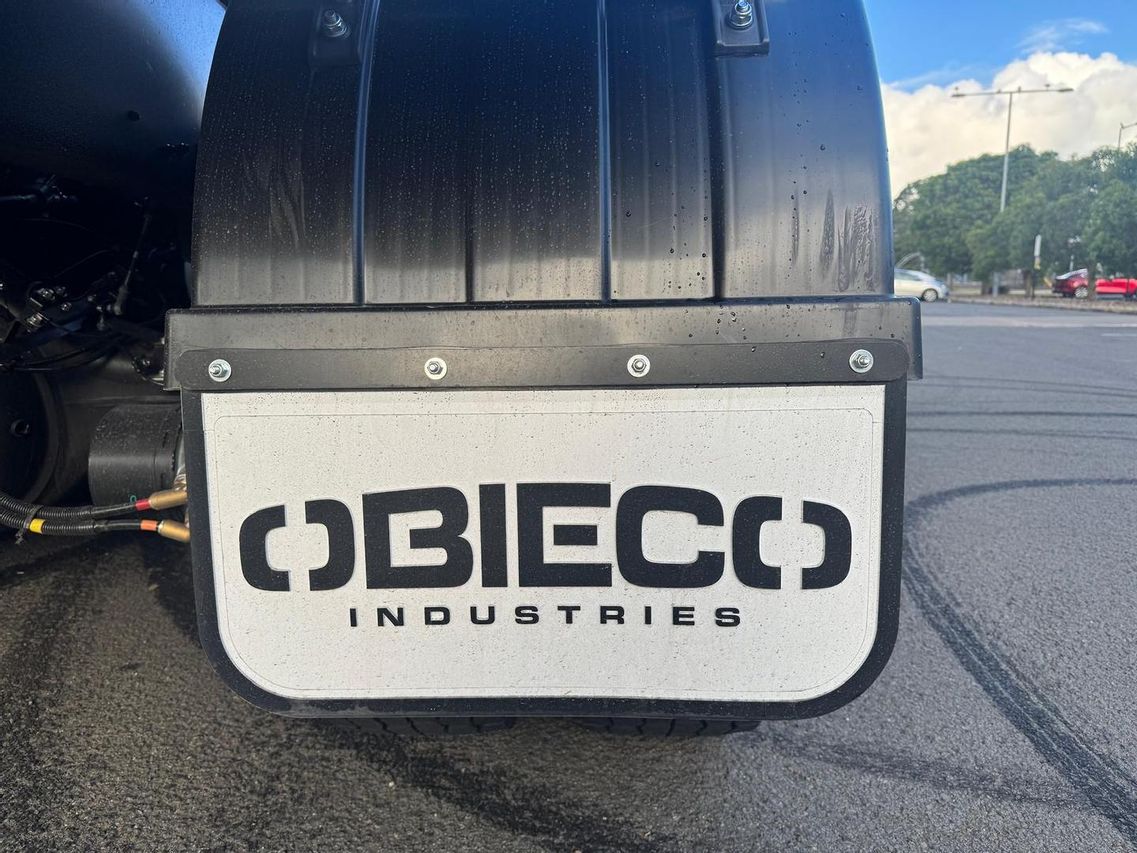

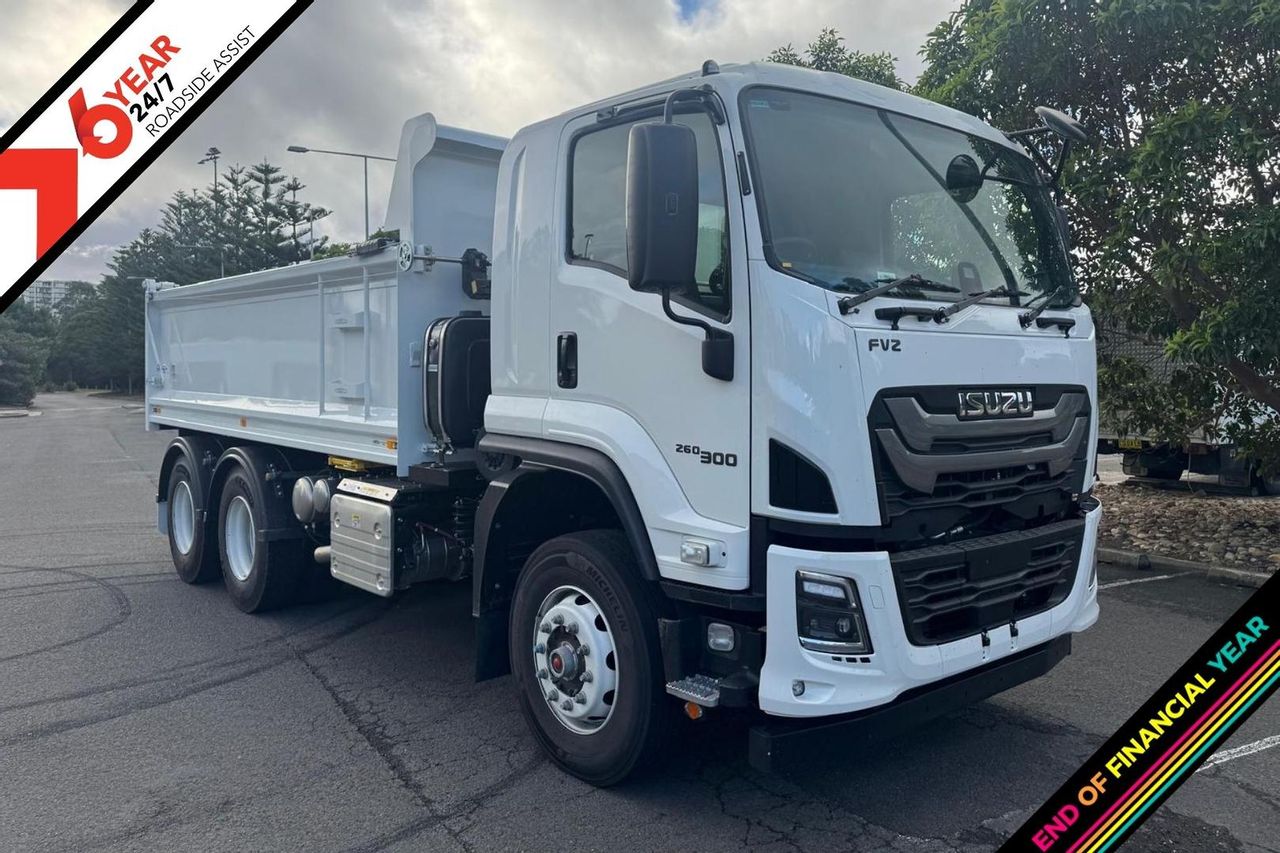

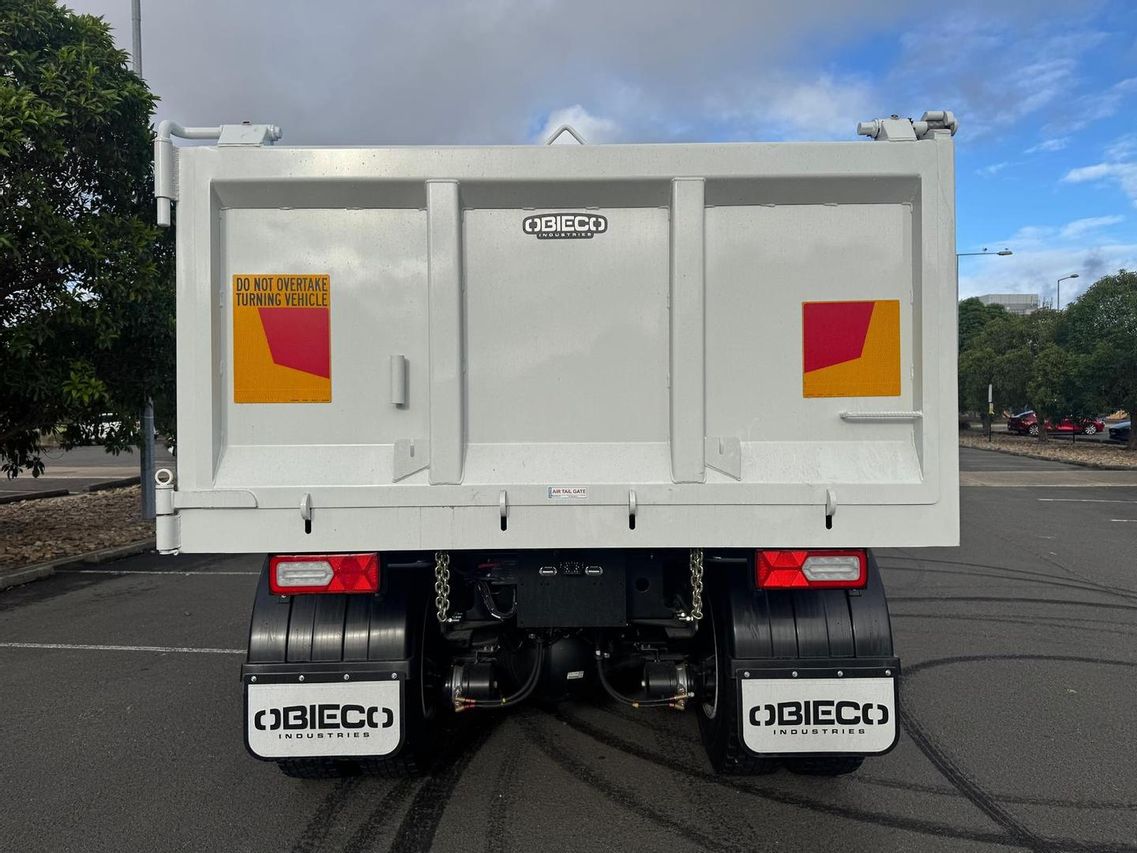

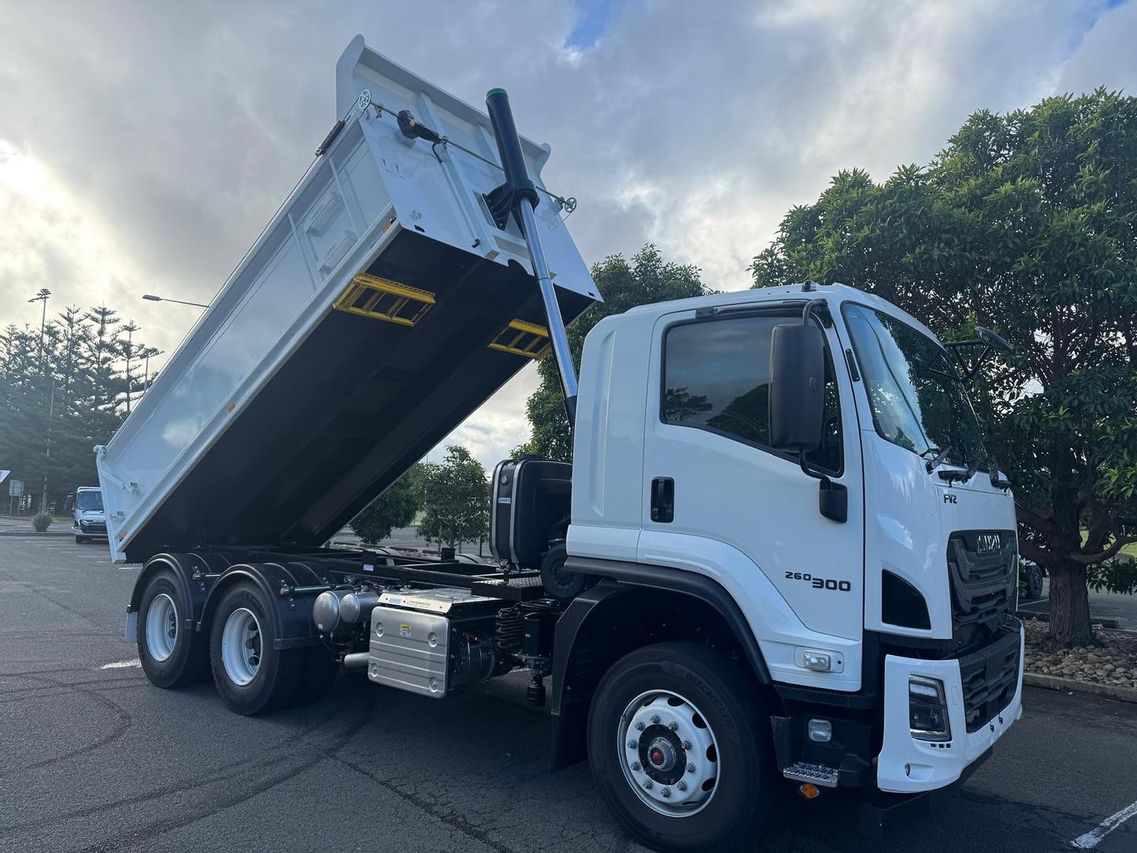

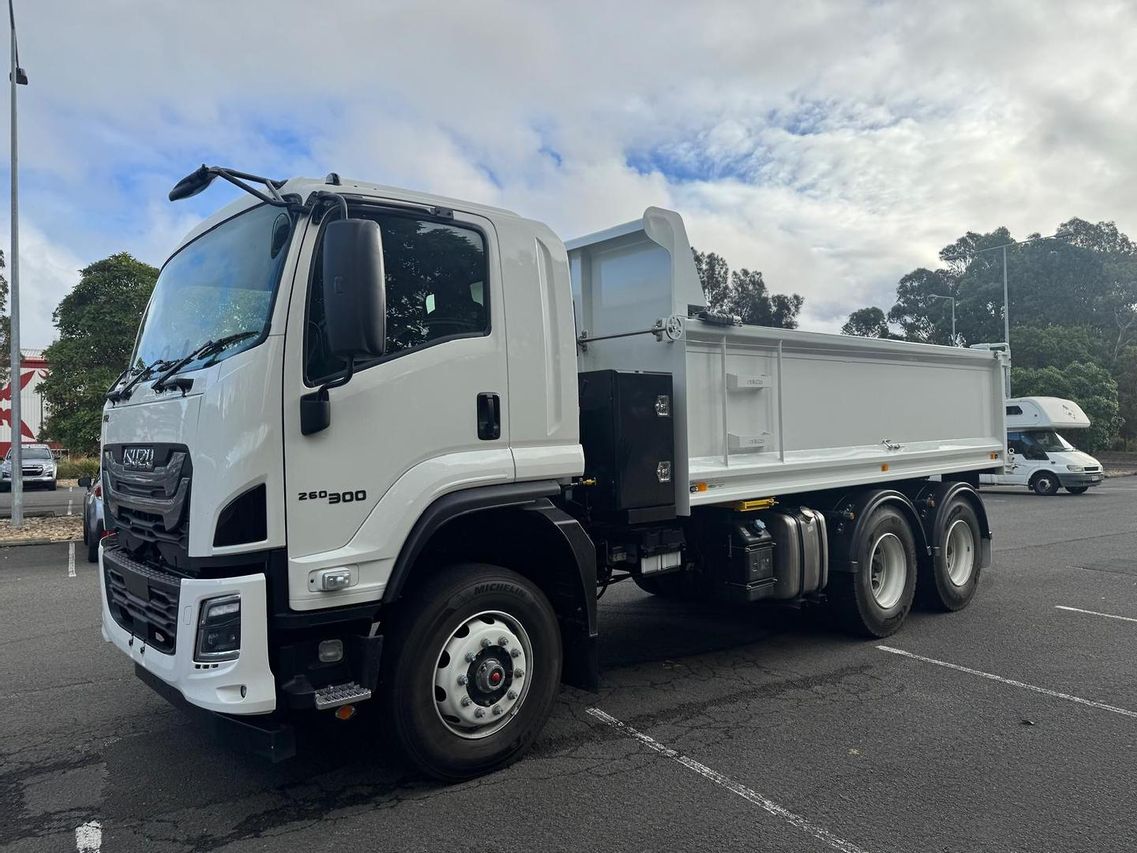

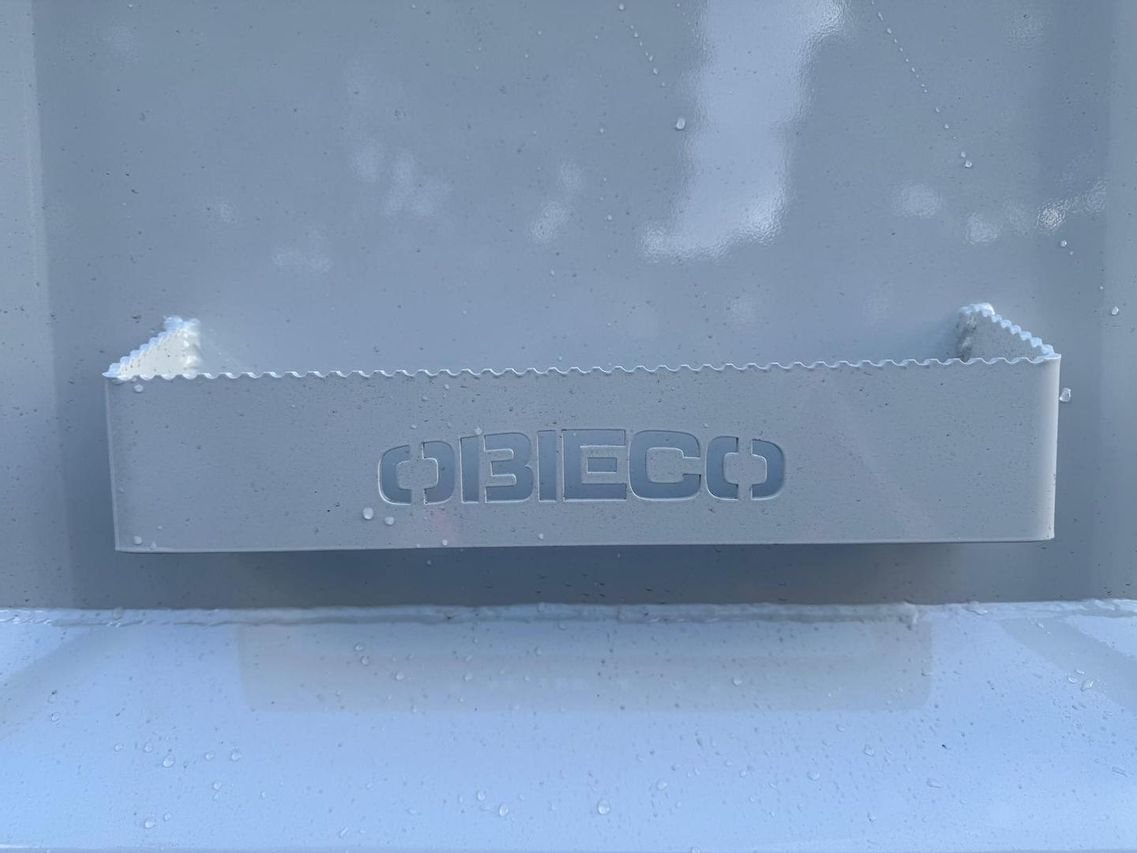

ISUZU FVZ 260-300 AT R46 Heavy Duty 6x4 Cab Chassis ________________________________________ VEHICLE OVERVIEW Model: FVZ 260-300 AT R46 GVM: 26,000 kg GCM: 36,000 kg Wheelbase: 4,595 mm Engine: Isuzu DB6A-TCC 6 Cylinder Turbo Diesel Power: 221 kW @ 2,200 rpm Torque: 984 Nm @ 1,000 - 2,100 rpm Transmission: Allison 3500 GEN 6 6-Speed Automatic Transmission (AT) ________________________________________ OBEICO HEAVY DUTY TIPPER BODY BODY DIMENSIONS - 5000MM External X 2400MM External FIXED SIDES 1150MM HIGH. TIPPER SETBACK 500MM FROM CAB TO ENABLE FRONT MOUNTED HOIST. HEAVY DUTY H STYLE SAFETY PROP FITTED TO SUBFRAME GUNNEL (BOTTOM) - SPECIAL TAPERED RHS SECTION FLOOR - 5MM HARDOX 450 GRADE WITH TAPERED CORNERS SIDES - 5MM HARDOX 450 GRADE 1200MM HIGH FIXED SIDES TAILGATE - 1300MM HIGH H/D TOP & SIDE HINGE, AIR RELEASE SPREADER CHAINS - ADJUSTABLE SPREADER CHAINS FITTED LOADING BOARD - KEMBLA TYPE RHS FRAMEWORK H/D SHOVEL RACKS STEPS FITTED WITH SAFETY TREAD STEP FITTED EACH SIDE FRONT OF BODY SIDE ACCESS LADDER FITTED TO TIPPER SIDE HEAVY DUTY ROPE RAILS FULL LENGTH BOTH SIDES HOIST - FRONT MOUNTED HOIST GUARDS - MUD AND LIGHT GUARDS TO NHVR,RMS REQUIREMENTS PAINT - TWO PAK EPOXY TO MATCH CAB VSCCS ENGINEERS CERTIFICATE - FITTED WITH BLUE PLATE TARP, ELECTRIC OPERATED WITH IN CAB CONTROLS ________________________________________ FEATURES ADR 80/04 (Euro VI) Compliant Adaptive Driving Beam (ADB) Bi-LED Headlamps with Daytime Running Lamps (DRL) ECE-R29 Cab with Side Anti-Intrusion Beams ISRI 6860/875 NTS2 Air Suspension Driver's Seat Engine Compression Brake (I-Brake) ________________________________________ CHASSIS Front Axle Capacity: 7,300 kg Rear Axle Capacity: 20,000 kg Fuel Tank: 200 L Aluminium AdBlue Tank: 65 L High-Density Polyethylene Front Axle Tyres: 315/70R22.5 156/150L Michelin X Multi Z2 Rear Axle Tyres: 11R22.5 148/145L Michelin X Multi D+ ________________________________________ CABIN Auto Climate Control ISRI 6860/875 NTS2 Air Suspension Driver's Seat with Heating and Ventilation 10.1" High Definition Touchscreen Truck Tailored GPS Navigation with Live Traffic and Map Content Updates Android Auto & Apple CarPlay Compatible Wi Fi Connectivity Bi LED Headlamps with Daytime Running Lamps (DRL) LED Front Fog Lamps LED Tail Lamps Reverse Alarm ________________________________________ WARRANTY & SERVICE Chassis Warranty: 6 Years / 500,000 km / 10,000 Engine Hours Service Interval: 25,000 km / 12 Months / 500 Hours (Whichever Occurs First) Roadside Assist: 6 Years / 24/7 Unlimited km ________________________________________ We are one of Sydney’s most convenient and trusted truck dealerships, located just 10 minutes from Sydney Airport and only 400 metres from Wolli Creek train station. We make buying, selling, and servicing your truck simple. If you're looking to sell, we offer free truck valuations with an onsite valuer / buyer providing obligation free market appraisals—receive a competitive offer based on current market data. As an authorised Isuzu dealer, we’ve partnered with Qantas Business Rewards so your business can earn Qantas Points when purchasing Isuzu truck parts and accessories. We also offer Isuzu Service Agreements at the time of your truck purchase, helping you turn servicing into predictable, manageable costs. Plus, when you purchase a new Isuzu truck, your first service is free. To keep your business moving, our workshop provides after hours servicing until 7pm, giving you more uptime and less downtime. IS THIS NOT THE PERFECT TRUCK FOR YOU? We keep a range of trucks in stock ready to work, available now for delivery. Send an enquiry so we can find what you need. NEED SOMETHING CUSTOM? We have trucks ready to build - so we can craft a truck exactly to what your business requires. Send an enquiry so we can build what you need. We are Isuzu experts and are confident we can find the right truck for you and your business.
